Product description: Electric actuator LA50P 1500 N 100 mm/sec 12 V with potentiometer - 30 cm extension
Linear actuatorwith a maximum extension of 30 cm, protected by twolimit switches.Maximum load capacity is 150kg (1500 N).Thanks to its high protection class IP65, the LA50P can be used in wet and dusty conditions. The actuator is powered by 12 V. It hasabuilt-inpotentiometer.

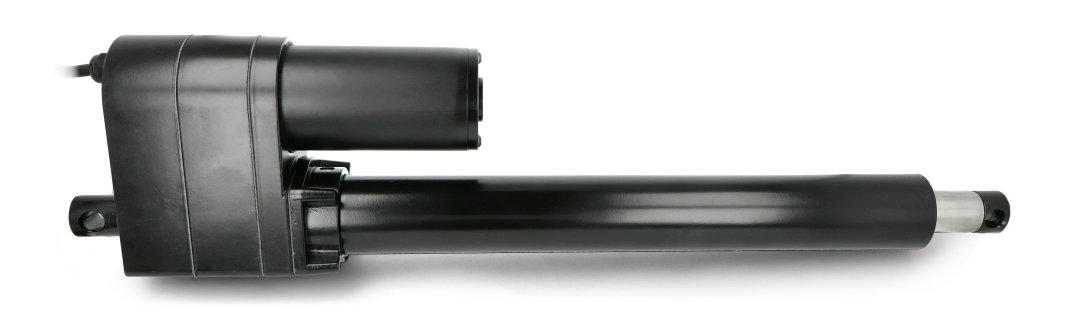

Electric actuator LA50P 1500 N 100 mm/sec 12 V - 30 cm extension.
Application of linear actuators
- Adjustment of flaps and ploughs in motor vehicles
- Opening and closing of industrial valves
- Tilt adjustment of solar panels in photovoltaics
- As tilt and close element for windows and doors in home automation
- Agricultural machinery components
|
As inDC motors,the direction is changed by reversing the polarity. |
Linear actuator specification LA50P
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 100 mm/s |
| Maximum power | 1500 N (150 kg) |
| Duty cycle | 25% |
| Extension length | 300 mm |
| Total length when folded in | 550 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |

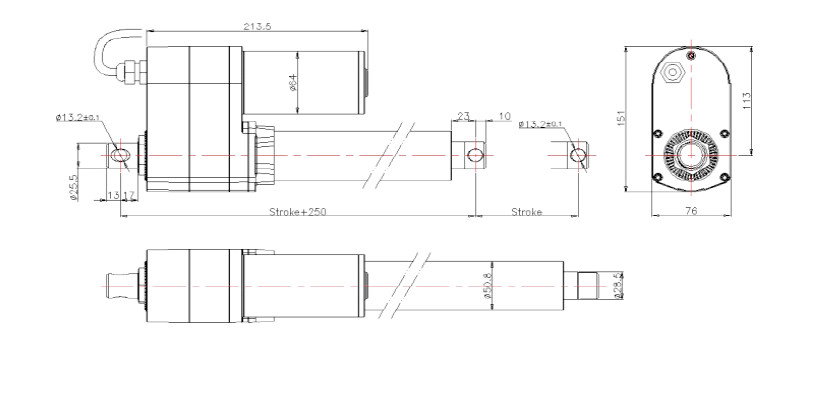

Dimensions of the LA50P.
