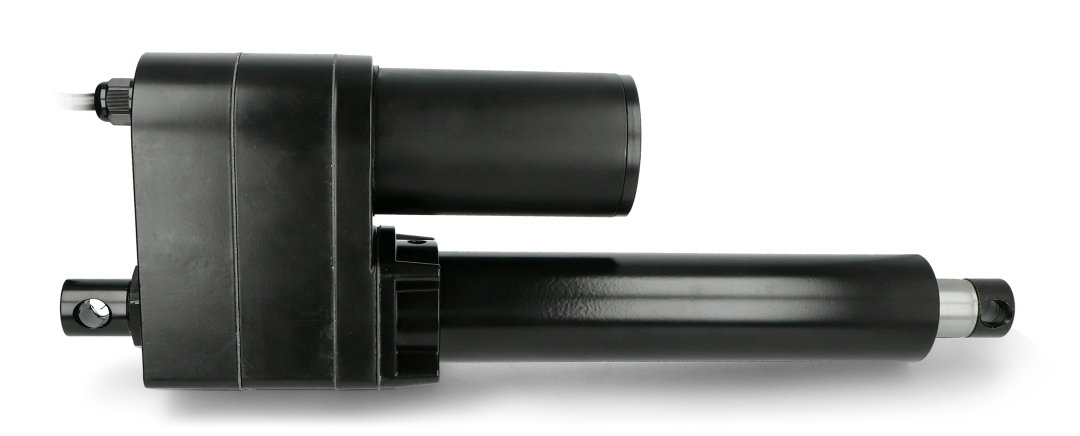

Linear Actuator LA50P 2000N 50mm/s 12V with potentiometer - stroke 15cm
Linear actuator with potentiometer. Powered by 12 V. Permissible unit load is 200 kg (2000 N). The maximum extension is 15 cm, and two limit switches provide protection against exceeding this range. The actuator has an IP65 protection class, which allows it to be installed in damp and dusty places.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Electric actuator LA50P 2000 N 50 mm/sec 12 V with potentiometer - 15 cm extension
Linear actuatorwith potentiometer.Powered by 12 V. Permissible unit load is 200kg (2000 N).The maximum extension is 15 cm, and twolimit switchesprovide protection against exceeding this range. The actuator has an IP65 protection class, which allows it to be installed in damp and dusty places.
Electric actuator LA50P 2000 N 50 mm/s 12 V - 15 cm extension
Application of linear actuators
- Automotive: lifting of flaps, ploughs in motor vehicles
- Mobile elements in home automation systems
- Closing the valves
- Slope control of solar panels in photovoltaic installations
- Precision and Industrial Automation
- Industrial and agricultural machinery components
As inDC motors,the direction is changed by reversing the polarity. |
Linear actuator specification LA50P
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 50 mm/s |
| Maximum power | 2000 N (200 kg) |
| Duty cycle | 25% |
| Extension length | 150 mm |
| Total length when folded in | 400 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 200 kg*cm |
| Voltage nominal | 12 V |
| Motor - eject | 15 cm |
| Width | 19.5 cm |
| Height | 12.5 cm |
| Depth | 47 cm |
| Weight | 5.05 kg |
