Product description: Electric actuator LA50 1500 N 100 mm/sec 12 V - 30 cm extension
Rope actuatorpowered by12 V.The maximum extension is 30 cm and is limited by twolimit switches.The LA50 has a protection class of IP65. It can therefore be used in areas exposed to high humidity and dust. The permissible lifting capacity of the actuator is 150kg (1500 N).

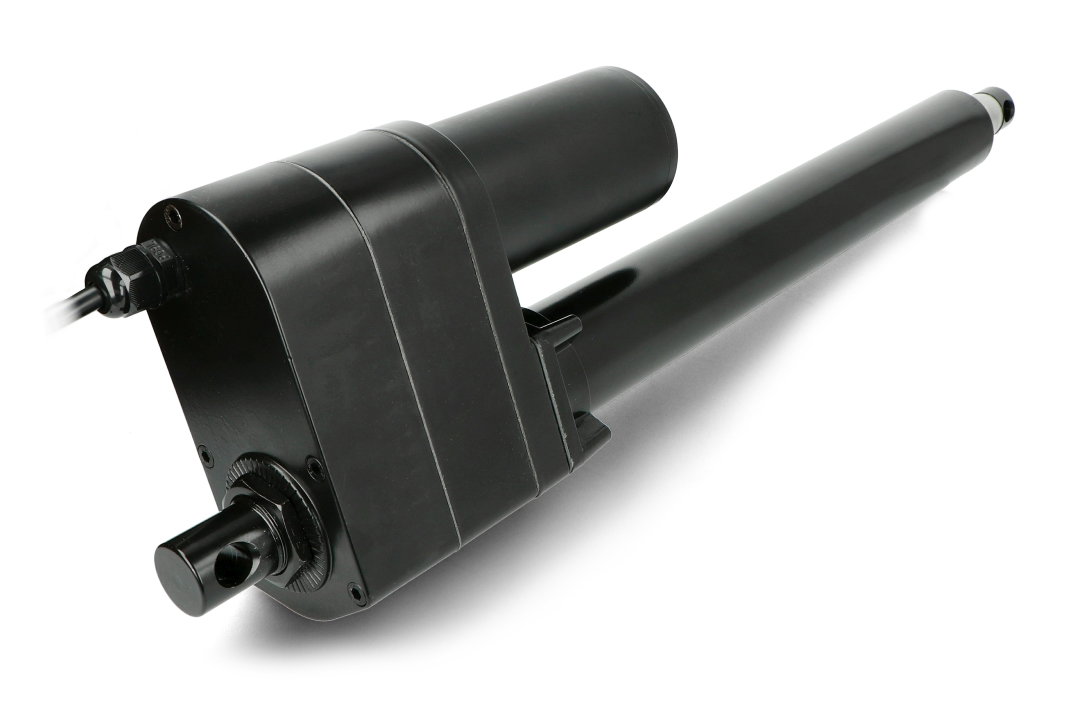

LA50 electric actuator 1500 N 100 mm/s 12 V - 30 cm extension.
Application of linear actuators
- Closing and opening of industrial valves
- Adjustment of solar panels in photovoltaic installations
- Precision and Industrial Automation
- Components of agricultural and industrial machinery
- Home automation components
|
As inDC motors,the direction is changed by reversing the polarity. |
LA50 linear actuator specifications
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 100 mm/s |
| Maximum power | 1500 N (150 kg) |
| Duty cycle | 25% |
| Extension length | 300 mm |
| Total length when folded in | 550 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |
Dimensions of the LA50 actuator.
