Linear Actuator LAD 500N 15mm/s 12V - 25cm stroke

Index: ELB-15473 EAN: 5905644491229

Linearactuator with 25 cm extension. It is powered by 12 V. Maximum load capacity is 50 kg (500 N). It operates at 15 mm/sec. Due to the use of metal internal gears, the actuator is characterized by high precision and long service life. Thanks to the IP65 protection class it can be used outdoors. The maximum current consumption of the actuator is 2 A.

Linear Actuator LAD 500N 15mm/s 12V - 25cm stroke
€69.50
€56.50 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Elektrobim

Product description: electric actuator LAD 500 N 15 mm/sec 12 V - 25 cm extension

Linear actuator with25 cm extension. It is powered by12 V. Maximumload capacityis 50 kg(500 N). It operatesat 15 mm/sec. Due to the use of metal internal gears, the actuator is characterized by high precision and long service life. Thanks to theIP65 protection classit can be used outdoors. The maximum current consumption of the actuator is 2 A.

The devices are available in various lengths of extension:15 cm,20 cm,25 cm,30 cm.

Siłownik elektryczny LAD 500 N 15 mm/s 12 V - wysuw 25 cm

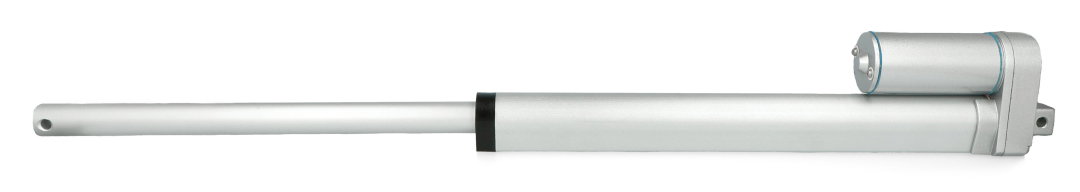

Electric actuator LAD 500 N 15 mm/s 12 V - extension 25 cm.

The actuator is easy to install thanks to itsrear attachment. The change of direction, similarly as inDC motors, takes place as a result of reversing the polarity. Limit switchesprotect the mechanismagainst exceeding the maximum extension length. The actuator can be controlled via buttons or relays.

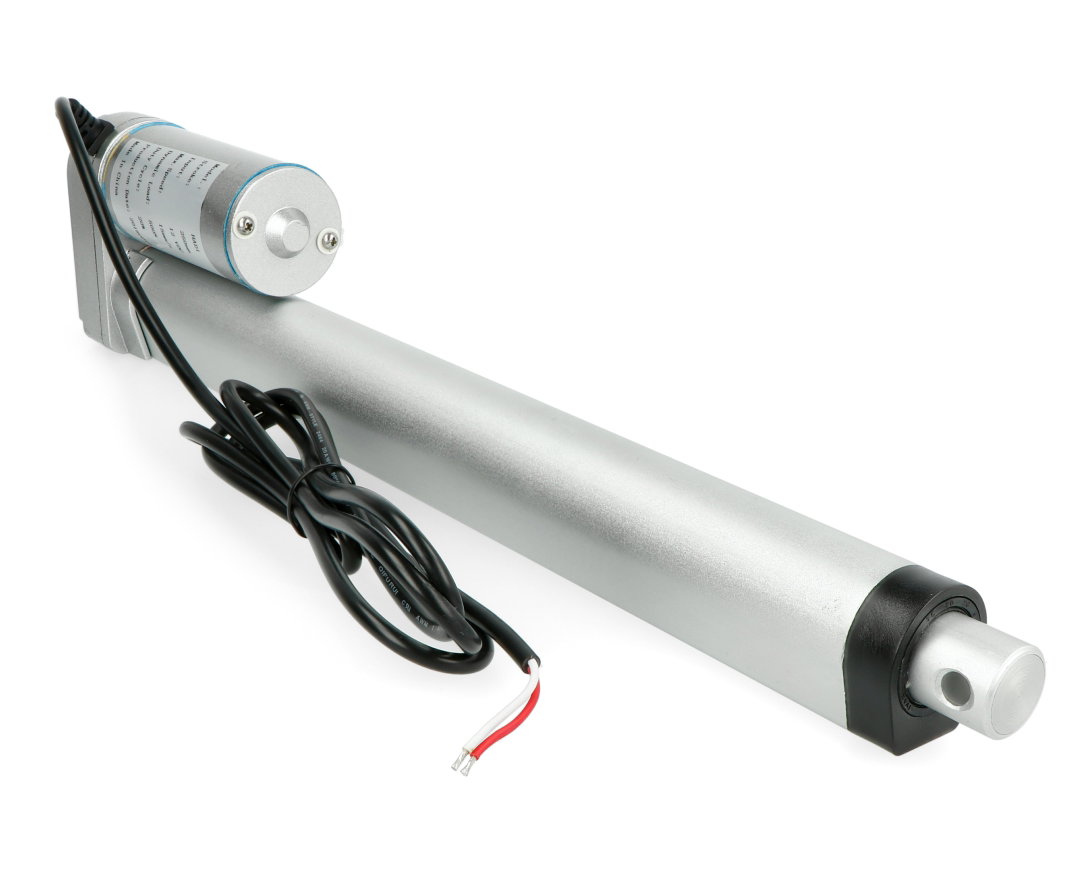

Siłownik elektryczny LAD 500N 15mm/s 12V - wysuw 25cm

LAD 500 N 15 mm/sec 12 V electric actuator. Otherlinearactuators are also available.

Example application of the LAD 500 N electric linear actuator

  • Element in precision mechanics
  • In industry and agriculture as height regulator
  • Home automation: opening and closing of doors, windows, gates
  • Solar panel position controller
  • Supporting the opening and closing of industrial valves
  • In motor vehicles as a position controller

12V actuator specification

NameParameter
Supply voltage 12 V DC
Current consumption up to 2 A
Speed 15 mm/s
Maximum power 500 N (50 kg)
Duty cycle 20%
Extension length 250 mm
Overall length in assembled condition L1 363 mm
Diameter 20 mm
Operating temperature from -25°C to 65°C
Safeguards Limit switches

Siłownik 12 V LAD 150 mm

LAD 500 N 12 V.

Voltage to 12.0 V
Voltage from 12.0 V
Torque 50 kg*cm
Voltage nominal 12 V
Motor - linear speed 15 mm/s
Motor - eject 25 cm
Package width 38.6 cm
Package height 5.5 cm
Package depth 9.3 cm
Package weight 1.05 kg
