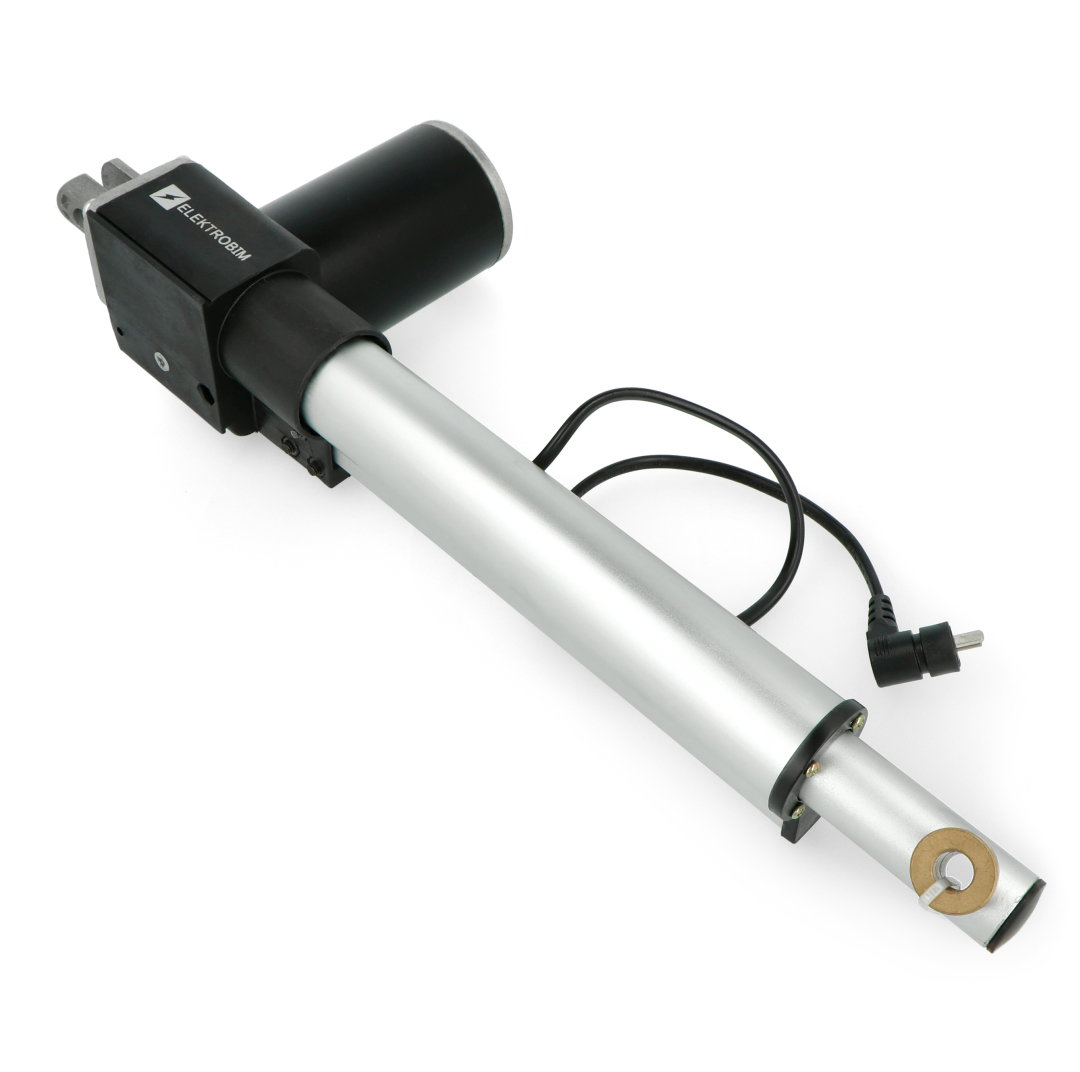

Product description: Electric actuator FDI 4000N 6 mm/s 24 V - 20 cm extension
24 Velectric actuator, suitable for heavy duty applications. Professional FDI series actuators are characterized by high quality materials, perfect fit and very high reliability. Load capacity of the actuator is4000 N (400 kg), operates at6 mm/sec. The maximum current consumption is 3 A. The arm extension is 20 cm. Built-inlimit switchesprotect against exceeding the extension range.
|
The devices are available in different variants: |
FDI actuators are made of high quality materials and all components have been precisely matched, which makes them very stable and quiet.50 Wpowerensuresthat the actuator can withstand high loadsunder extreme conditions.
FDI 4000 N 6 mm/s 24 V - 20 cm extension.
Applications for FDI electric actuators
High quality materials make the motors versatile. They are used inindustrial automation infactories, warehouses, etc., and are also suitable as an actuator forbeds or operating tables. They also find their place in the household.
Specification of 24 V linear actuator FDI 4000 N 6 mm/sec.
| Name | Parameter |
|---|---|
| Supply voltage | 24 V DC |
| Speed | 6 mm/s |
| Maximum power | 4000 N (400 kg) |
| Maximum supply current | 3 A |
| Power supply | 50 W |
| Extension length | 200 mm |
| Overall length in assembled condition L(min) | 375 mm |
| Leakage class | IP42 |
| Operating temperature | From -5°C to 45°C |
| Limit switches | Yes |
