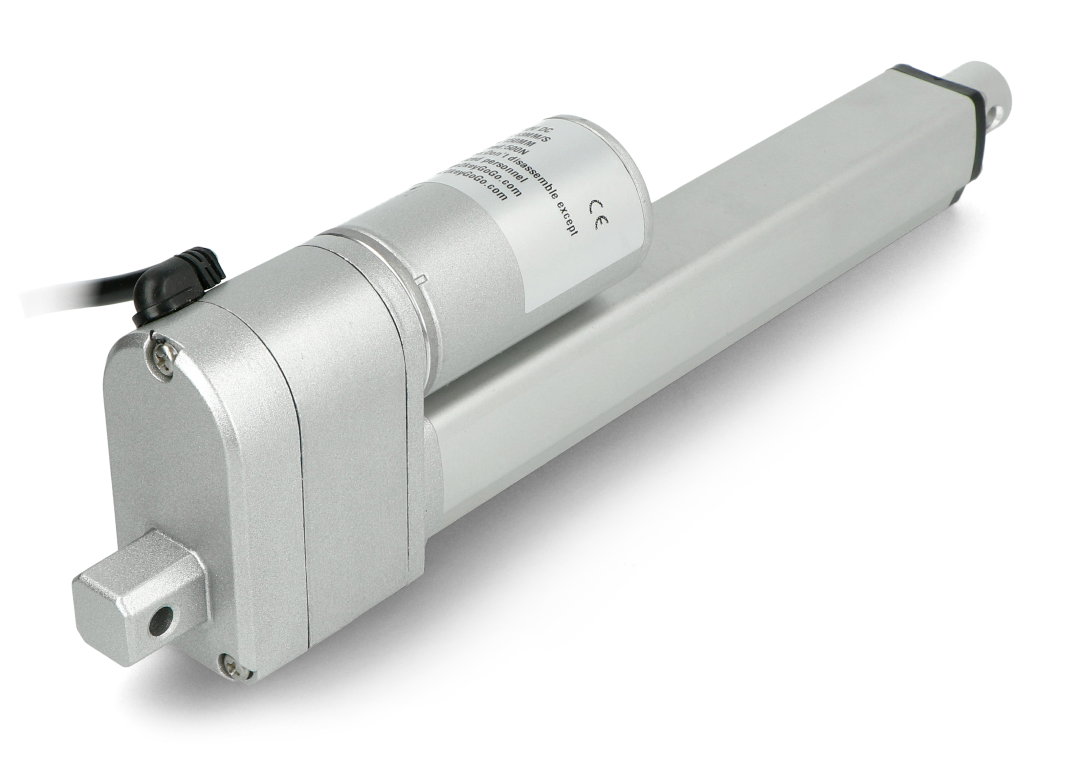

Linear Actuator LA10P 500N 13mm/s 12V with potentiometer - stroke 15cm

Index: WLS-17099 EAN: 5904422326876

12 V linear actuator with a maximum extension of 15 cm and a load capacity of 50 kg (500 N). Equipped with a potentiometer. The unit has an IP65 rating to protect the sliding mechanism from dust and water. The actuator has two built-in limit switches.

Linear Actuator LA10P 500N 13mm/s 12V with potentiometer - stroke 15cm
€99.50
€80.89 tax excl.
Available
Shipping in 24 hours
PayPal payment
LA10P electric actuator - extension:
Manufacturer: Wallstech

Product description: LA10P 500 N 13 mm/sec 12 V electric actuator with potentiometer - 15 cm extension

12 Vlinearactuatorwitha maximum extension of 15 cm and a load capacity of 50 kg (500N).Equipped witha potentiometer.The unit has an IP65 rating to protect the sliding mechanism from dust and water. The actuator has two built-inlimit switches.

Siłownik elektryczny LA10P 500N 13mm/s 12V z potencjometrem - wysuw 15cm

Electric actuator LA10P 500N 13 mm/sec 12 V with potentiometer - 15 cm extension.

Application of linear actuators

  • Flap and plough lifting element for off-road vehicles and quads
  • Opening and closing of industrial valves
  • Agricultural and industrial machinery components
  • In photovoltaics: tilt adjustment of solar panels
  • Elements of industrial mechanics

As inDC motors,the direction is changed by reversing the polarity.

Diagram of potentiometer outputs

The potentiometer used in the LA10P hasthree outputs, which must be connected according to the following diagram.

Wyprowadzenia potencjometru w siłowniku LA10P

The outputs of the potentiometer in the LA10P actuator.

LA10P linear actuator specification 500 N

Name Parameter
Supply voltage 12 V DC
Speed 13 mm/s
Maximum power 500 N (50 kg)
Duty cycle 25%
Extension length 150 mm
Total length in folded condition (Lmin) 297 mm
Diameter 20 mm
Mounting type fixture H
Operating temperature from -25°C to 65°C
Safeguards limit switches
Leakage class IP65

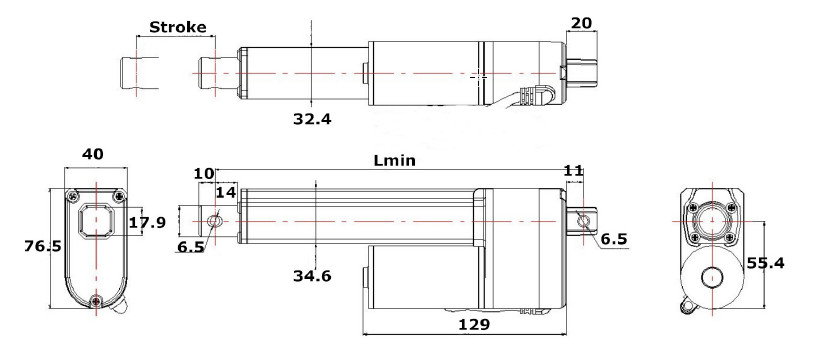

Wymiary siłownika LA10P 500 N

Dimensions of the LA10P 500 N.

Voltage to 12.0 V
Voltage from 12.0 V
Torque 50 kg*cm
Voltage nominal 12 V
Motor - eject 15 cm
Package width 9 cm
Package height 5.5 cm
Package depth 35 cm
Package weight 1.005 kg
