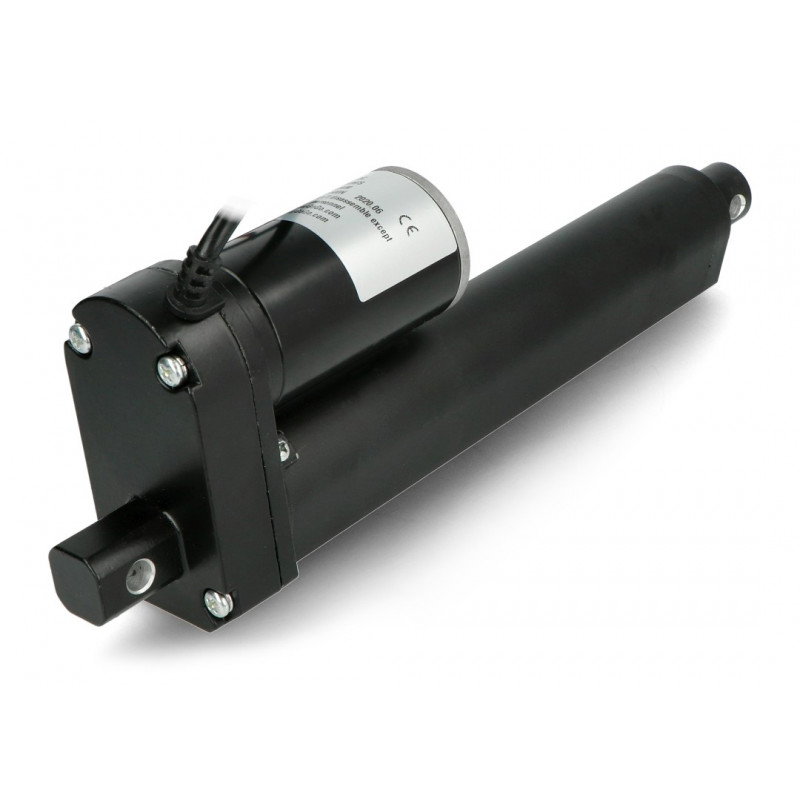

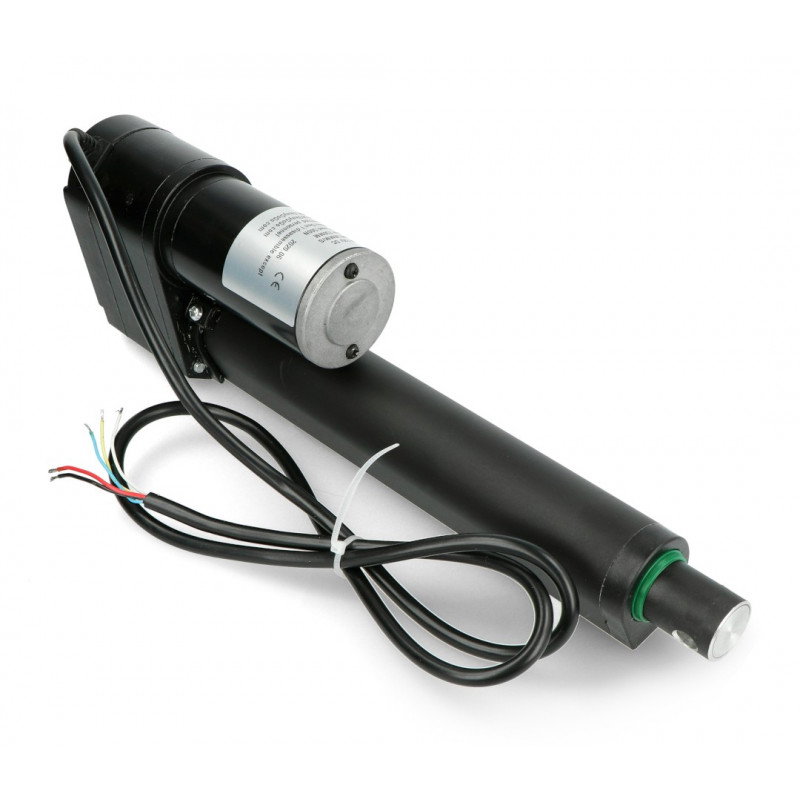

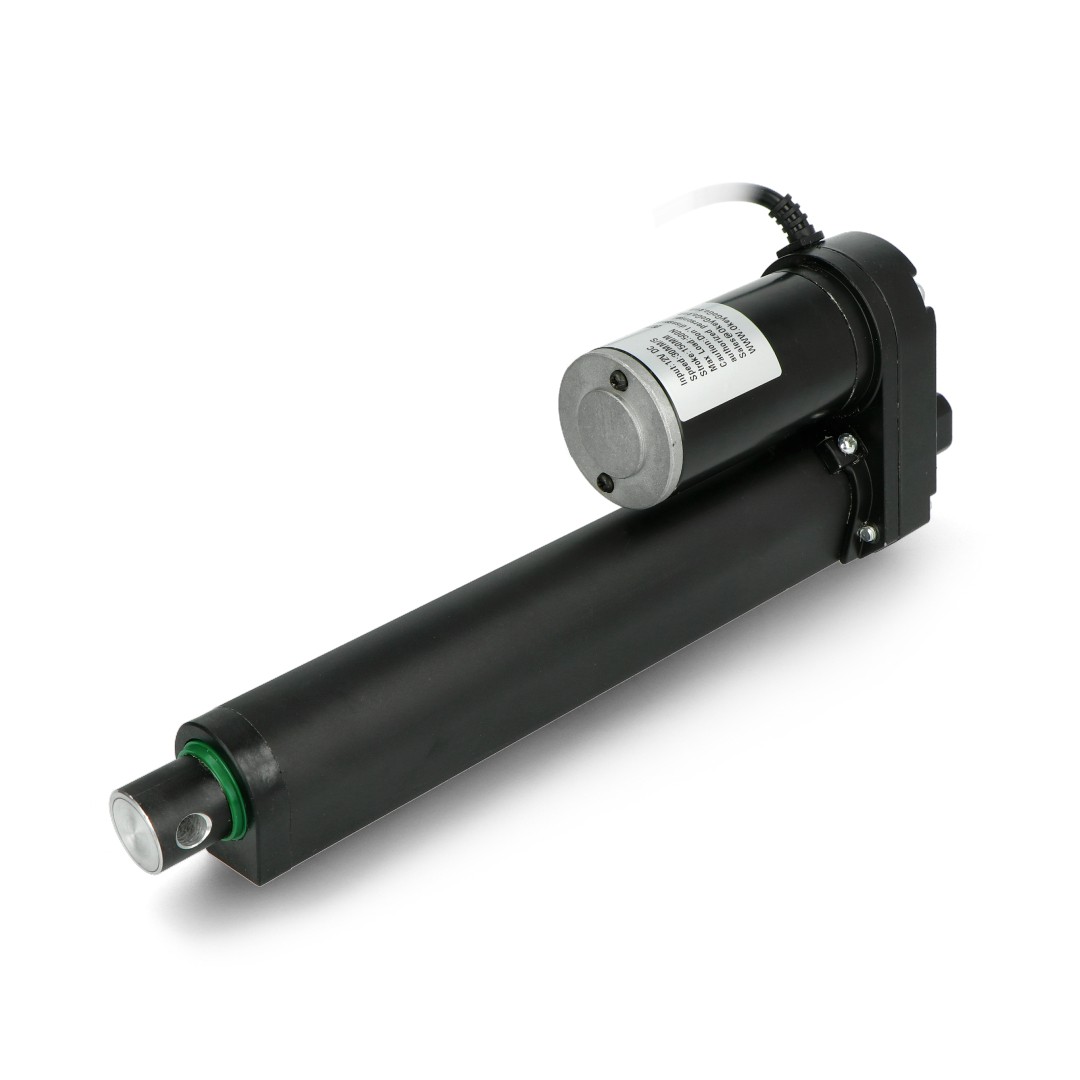

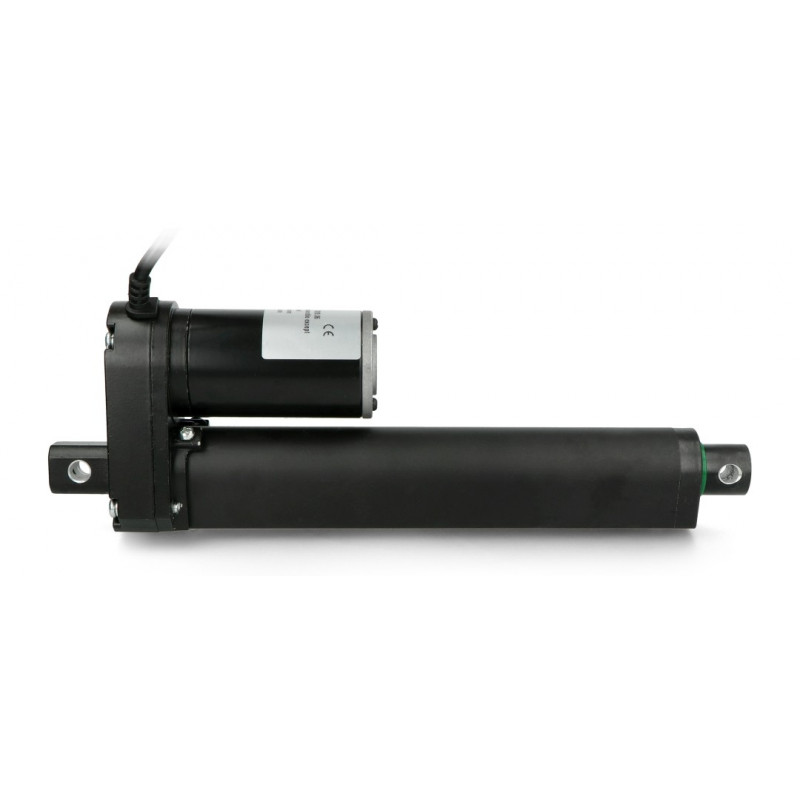

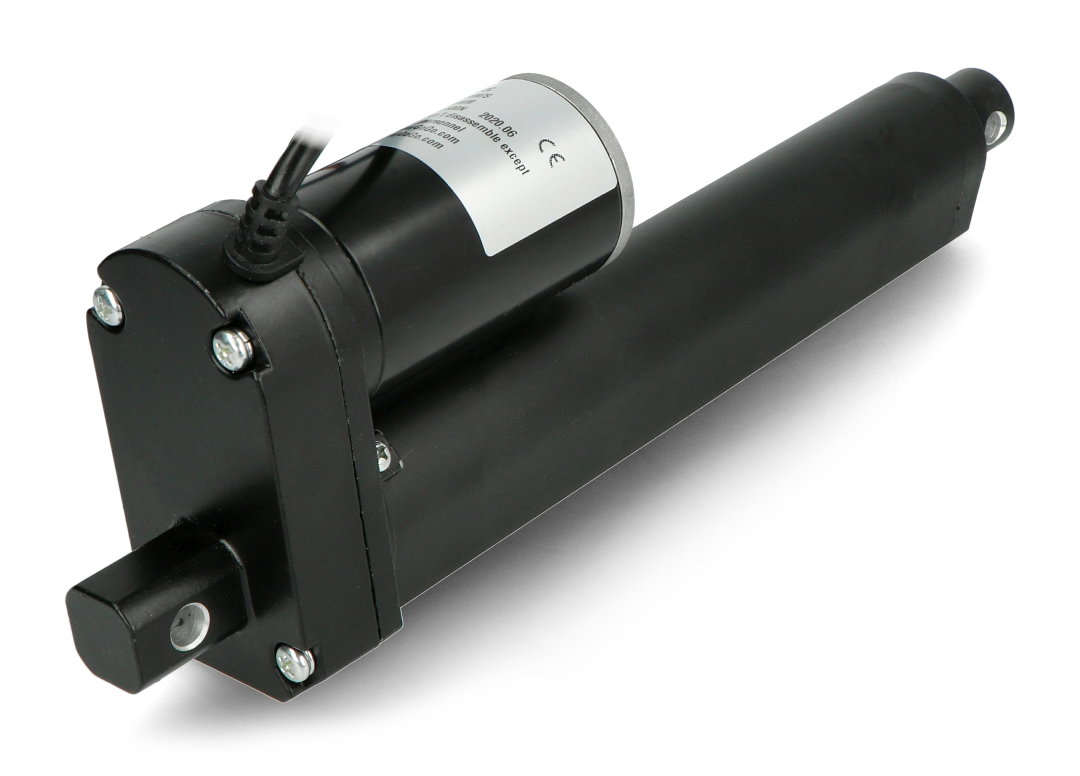

Linear Actuator LA-T5P 500N 30mm/s 12V with potentiometer - stroke 15cm
Linear actuator powered by 12 V with potentiometer. The permissible extension is 15 cm and is limited by two limit switches. The permitted lifting capacity of the actuator is 50 kg(500 N). The product has a protection class IP65 and can be installed in areas exposed to high humidity.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Electric actuator LA-T5P 500 N 30 m/s 12 V with potentiometer - 15 cm extension
Linear actuator powered by 12 V with potentiometer.The permissible extension is 15 cm and is limited by twolimit switches. The permitted lifting capacity of the actuator is 50 kg(500 N).The product has a protection class IP65 and can be installed in areas exposed to high humidity.
LA-T5P 500 N electric actuator 30 m/s 12 V with potentiometer - 15 cm extension
The most common application of actuators
- Photovoltaics - adjustment of solar panels position
- Flaps and plows in motor vehicles
- Industrial and agricultural machinery components
- Industrial automation - tilt windows and doors
- Opening and closing of industrial valves
As inDC motors,the direction is changed by reversing the polarity. |
The outputs of the potentiometer in the LA-T5P actu ator.
Scheme of potentiometer outputs
The potentiometer used in the LA-T5P hasthree outputs, which must be connected according to the following diagram.

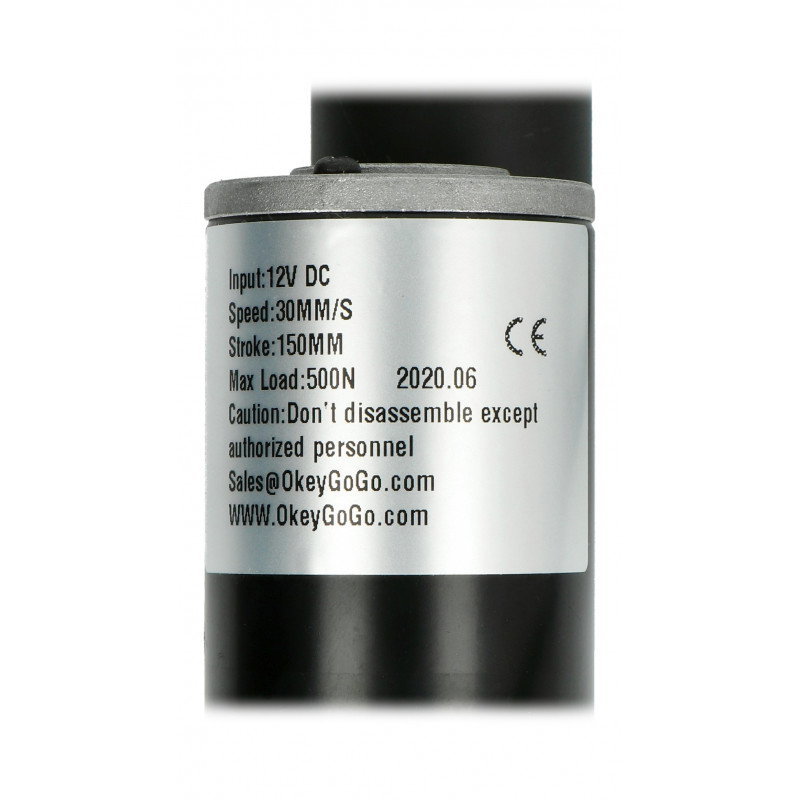

LA-T5P 3500 N linear actuator specifications
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 30 mm/s |
| Maximum power | 500 N (50 kg) |
| Duty cycle | 25% |
| Extension length | 150 mm |
| Total length when folded in | 305 mm |
| Operating temperature | from -25°C to 65°C |
| Safeguards | Limit switches |
| Leakage class | IP65 |
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 50 kg*cm |
| Voltage nominal | 12 V |
| Motor - eject | 15 cm |
| Width | 12.5 cm |
| Height | 6.5 cm |
| Depth | 36 cm |
| Weight | 1.558 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: With this linear actuator, can I ignore the 2nd wire and plug the positive and negative in so that it acts like a regular linear actuator?
