Product description: LA50 2000 N 50 mm/s 12 V electric actuator - 15 cm extension
Linear actuatorwith a maximum load capacity of 200 kg (2000 N).The device has a 15 cm extension. Twolimit switchesprovide protection against exceeding it. The product has a protection class IP65, so it can be installed in places exposed to high humidity and dust. The actuator is powered by12 V.

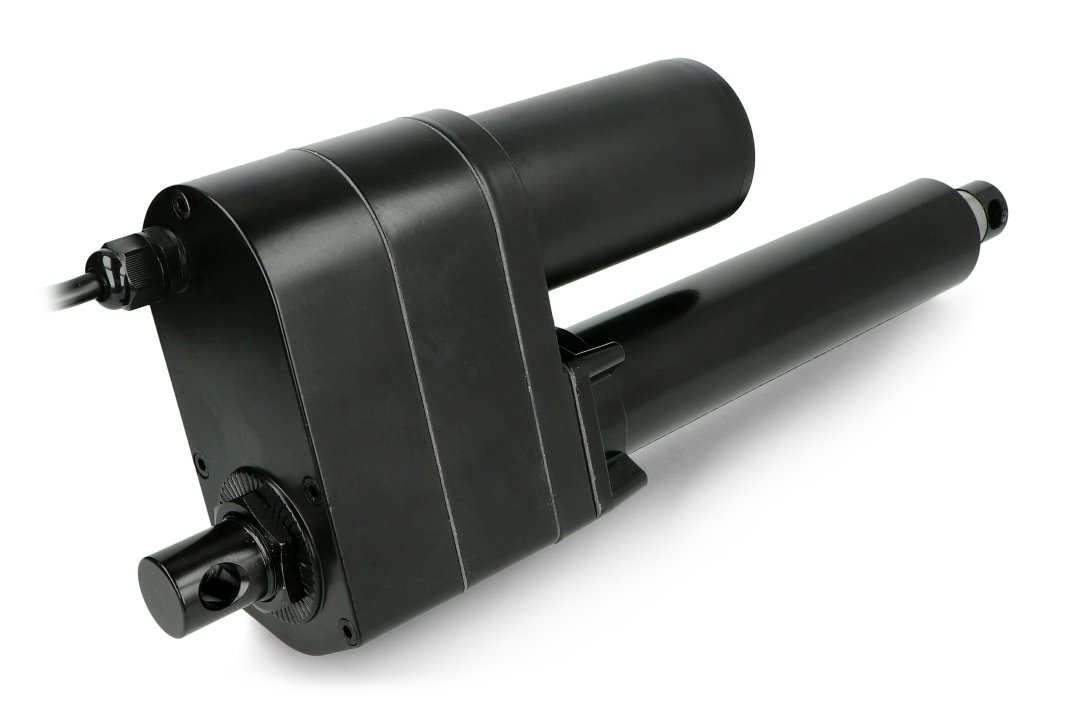

Electric actuator LA50 2000 N 50 mm/s 12 V - 15 cm extension.
Application of linear actuators
- Tilt adjustment of solar panels in photovoltaic installations
- Element of precision and industrial automation systems
- Opening and closing of industrial valves
- Home automation - elements tilt windows and door sashes
- Agricultural machinery components
|
As inDC motors,the direction is changed by reversing the polarity. |
LA50 linear actuator specifications
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 50 mm/s |
| Maximum power | 2000 N (200 kg) |
| Duty cycle | 25% |
| Extension length | 150 mm |
| Total length when folded in | 400 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |
Dimensions of the LA50 actuator.
