Product description: Electric actuator Super Power Jack 2000 N 7.5 mm/s 24 V - extension 20 cm
The electric actuator from the Super Power Jack series by Elektrobim offers a maximum load capacity of 2000 N (200 kg) and a working speed of 7.5 mm/s . Equipped with a solid 24 V DC motor with a maximum current consumption of 2 A. The pulser with a resolution of 48 pulses/inch provides information about the current position of the actuator. The actuator is resistant to external factors, and safety is ensured by limit switches that stop the actuator after reaching a specific point. The direction of motion is changed by reversing the polarity, as in DC motors. This model has a piston rod extension of 20 cm . Its universality means that it can be used to control automation elements, opening windows, doors and gates , motorcycle and engine lifts, and in agricultural machinery.

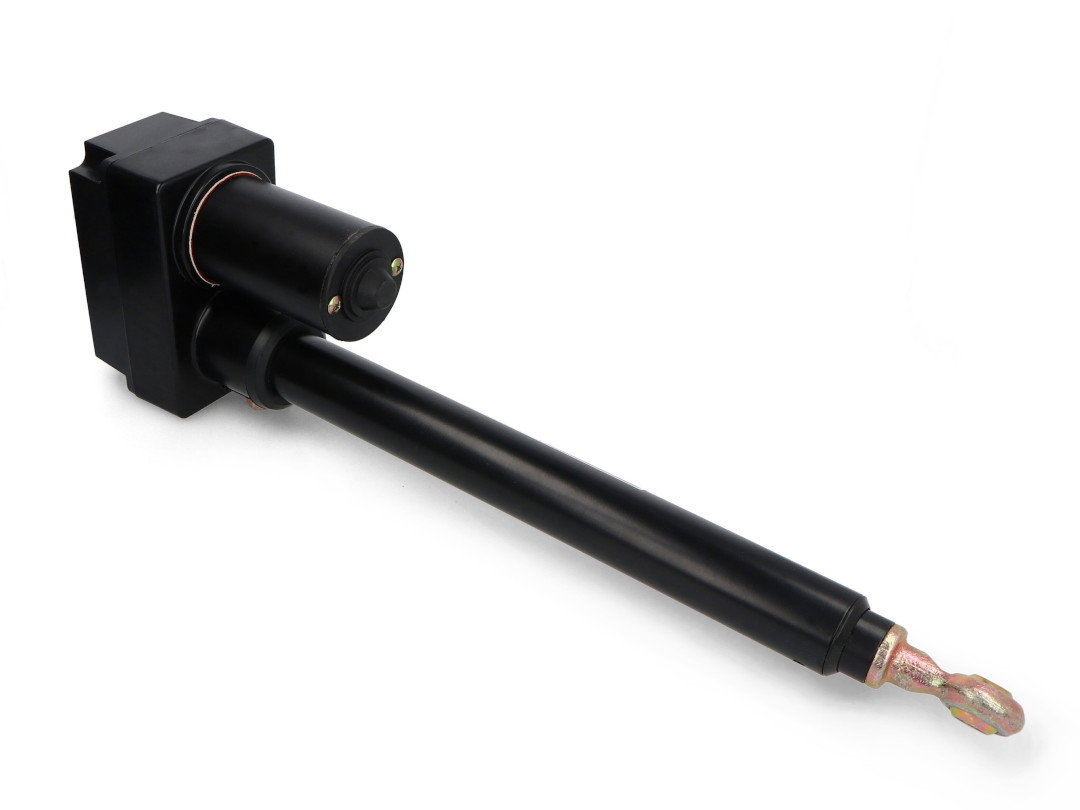

Electric actuator Super Power Jack 2000 N 7.5 mm/s 24 V - extension 20 cm.
The actuator offers a maximum load capacity of 2000 N (200 kg).
Special features of the Super Power Jack actuator
- Solidity and durability : offers a load capacity of up to 200 kg, resistance to external conditions and ensures operational stability.
- Safety and precision : equipped with limit switches that stop the piston movement when it reaches a specific point.
- Easy to install and use : convenient articulated mounting ensures intuitive operation.
- Control versatility : possibility of radio control, manual buttons and creating automation based on sensors.
- Versatile use : ideal for home automation, agricultural machinery, lifts and smart building systems.
Actuator adjustment instructions
The manufacturer has prepared a detailed video manual that shows how to properly adjust the limit switches in the Super Power Jack electric actuator. Limit switches are a key element in ensuring the safe and precise operation of the actuator, stopping the movement of the piston when a specific point is reached.

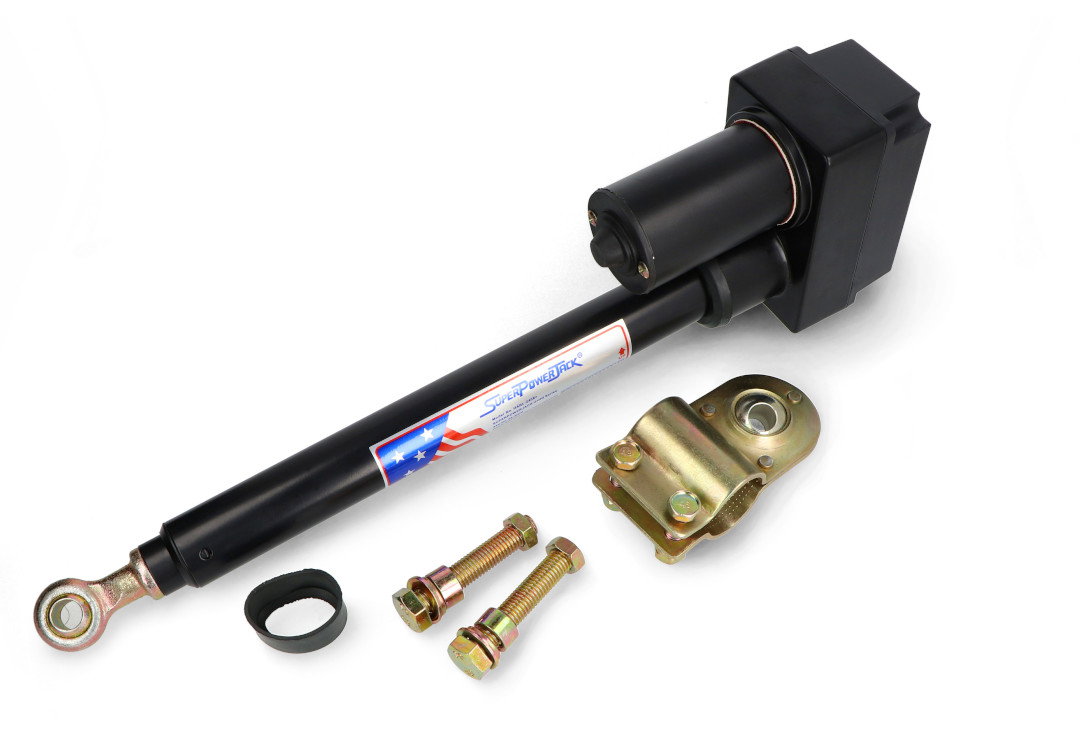

Elements included in the set.
Technical specifications of the actuator
- Model: Super Power Jack 2000 N 7.5 mm/s 24 V - extension 20 cm
- Supply voltage: 24 V DC
- Current consumption: up to 2 A
- Resolution of the built-in pulser: 48 pulses per inch
- Speed: 7.5 mm/s
- Maximum force: 2000 N (200 kg)
- Extension length: 200 mm
- Tightness class: IP52
- Security: limit switches
- Duty cycle: 10% (max. 2 min of continuous operation)
- Total length when folded: 455 mm
- Arm diameter: 32 mm
- Lower body dimensions: 120 x 72 x 50 mm
Set contents
- Super Power Jack linear actuator
- Mounting screws
- Gasket for the end of the arm
- User manual
