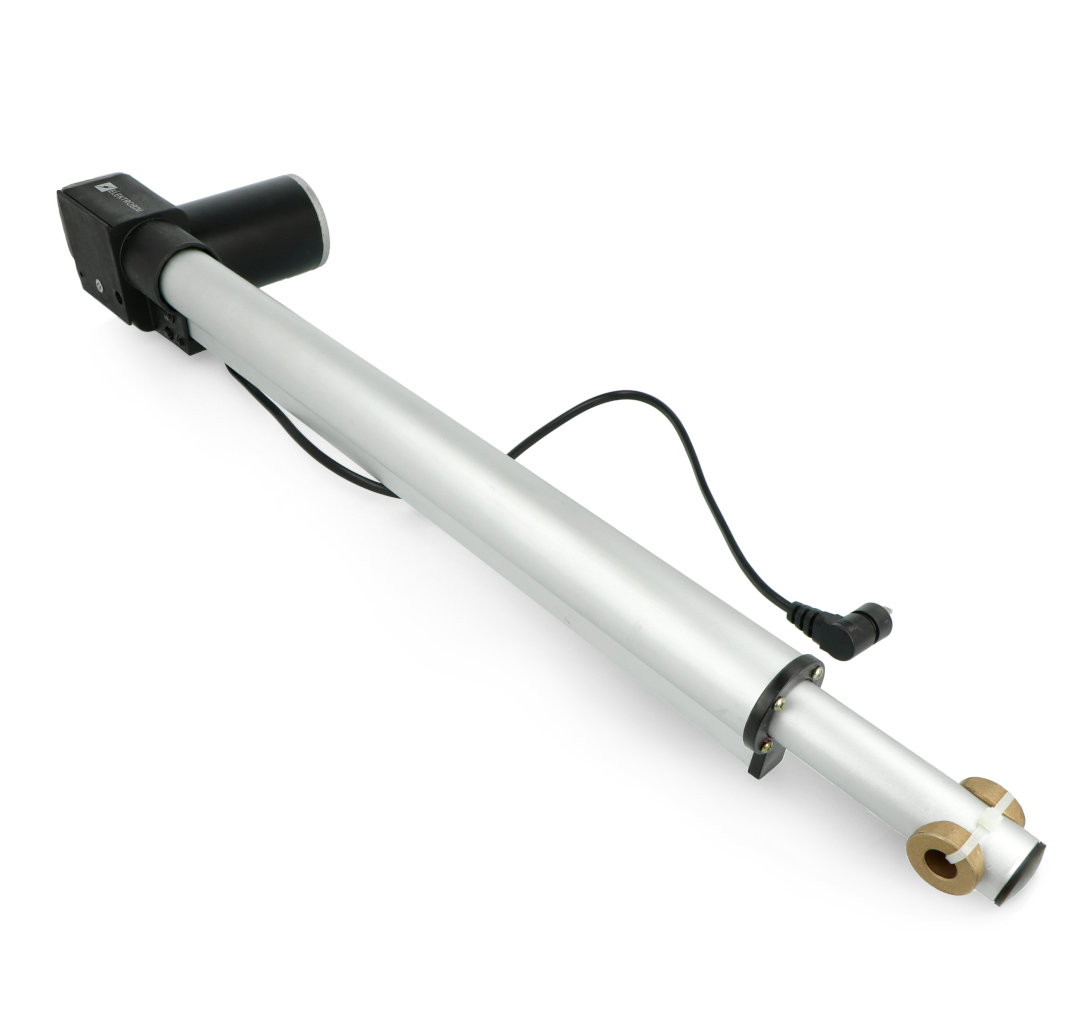

Linear Actuator Super Power Jack 4000N 6mm/s 24V - 60cm stroke
A professional electric actuator powered by 24 V, suitable for heavy duty applications. The FDI series of actuators is characterized by high quality materials, perfect fit of elements and very high reliability. The actuator allows a lifting capacity of 4000 N (400 kg), the extension speed is 6 mm/sec. The maximum current consumption is 3 A. The extension of the arm is 60 cm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Elektrobim products. Elektrobim is a Polish company that designs, manufactures and distributes electric drives, linear actuators and industrial automation components. Elektrobim products are known for their build quality and reliability, which earns them the trust of customers across many industries. Botland carries a wide range of original Elektrobim products supporting advanced automation systems.
Product description: Electric actuator FDI 4000 N 6 mm/s 24 V - 60 cm extension
A professional electric actuator powered by24 V, suitable for heavy duty applications. The FDI series of actuators is characterized byhigh quality materials,perfect fit of elements and very highreliability.The actuator allows a lifting capacityof 4000 N (400 kg), the extension speed is6 mm/sec. The maximum current consumption is 3 A. The extension of the arm is 60 cm. Built-inlimit switchesprotect against exceeding the extension range.
The devices are available in different variants: |
FDI actuators are made of high quality materials and all components have been precisely matched, which makes them very stable and quiet.50 Wpowerensuresthat the actuator can withstand high loadsunder extreme conditions.
Applications for FDI electric actuators
FDI actuators are made of high quality materials, which makes them versatile. They are used inindustrial automationin factories, warehouses, etc. They are also suitable asactuators for beds or operating tables. They also find their place in thehousehold.
Specification of 24 V FDI 4000 N 6 mm/s linear actuator
| Name | Parameter |
|---|---|
| Supply voltage | 24 V DC |
| Speed | 6 mm/s |
| Maximum power | 4000 N (400 kg) |
| Maximum supply current | 3 A |
| Power supply | 50 W |
| Extension length | 600 mm |
| Overall length in assembled condition L(min) | 795 mm |
| Leakage class | IP42 |
| Operating temperature | From -5°C to 45°C |
| Limit switches | Yes |
Electric actuator FDI 4000N 6 mm/s 24 V - 60 cm extension
The powerful electric actuator is designed for professional use. Robust and stable design and high reliability are the most important advantages of the FDI 4000N actuator. This allows us to use the actuator in applications with high mechanical load and adverse external conditions. The electric drive of the actuator is powered by 24 V DC and draws maximum current up to 3 A. Under rated conditions the actuator power is 50 W. The maximum mechanical load of the actuator is 4000 N, which approximately corresponds to a load weight of 400 kg. The actuator can be used in applications such as automatic gates and robotic machines for production processes. The actuator design is also equipped with limit switches. The maximum extension of the actuator arm is 600 m and the travel speed is 6 mm/s.
Operating principle and application examples of the FDI 4000N electric actuator
The design of the FDI 4000N is based on a slow-running DC electric motor that rotates the drive screw through a gearbox. The drive screw works with the actuator arm nut. The nut moves along the coils of the drive bolt, causing the arm to move. When the nut moves to one of its extreme positions, it presses the limit switch contact, causing the drive motor to shut down and stop the actuator. The FDI 4000N electric actuator is a device made according to the requirements of the internal protection degree IP42 - this allows the actuator to operate outdoors, even in a rain environment. Examples of applications for this actuator include automatic doors and gates, extension ladders, industrial robots and miniature cranes.
Useful links
| Name | Value |
|---|---|
| Torque | 400 kg*cm |
| Voltage nominal | 24 V |
| Motor - linear speed | 6 mm/s |
| Motor - eject | 60 cm |
| Width | 88.5 cm |
| Height | 10 cm |
| Depth | 17 cm |
| Weight | 3 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: Good day How is the connection to the network of the actuator ; Electric actuator FDI 4000N 6mm/s 24V - extension 60cm do you have such sockets as plugs in the picture
