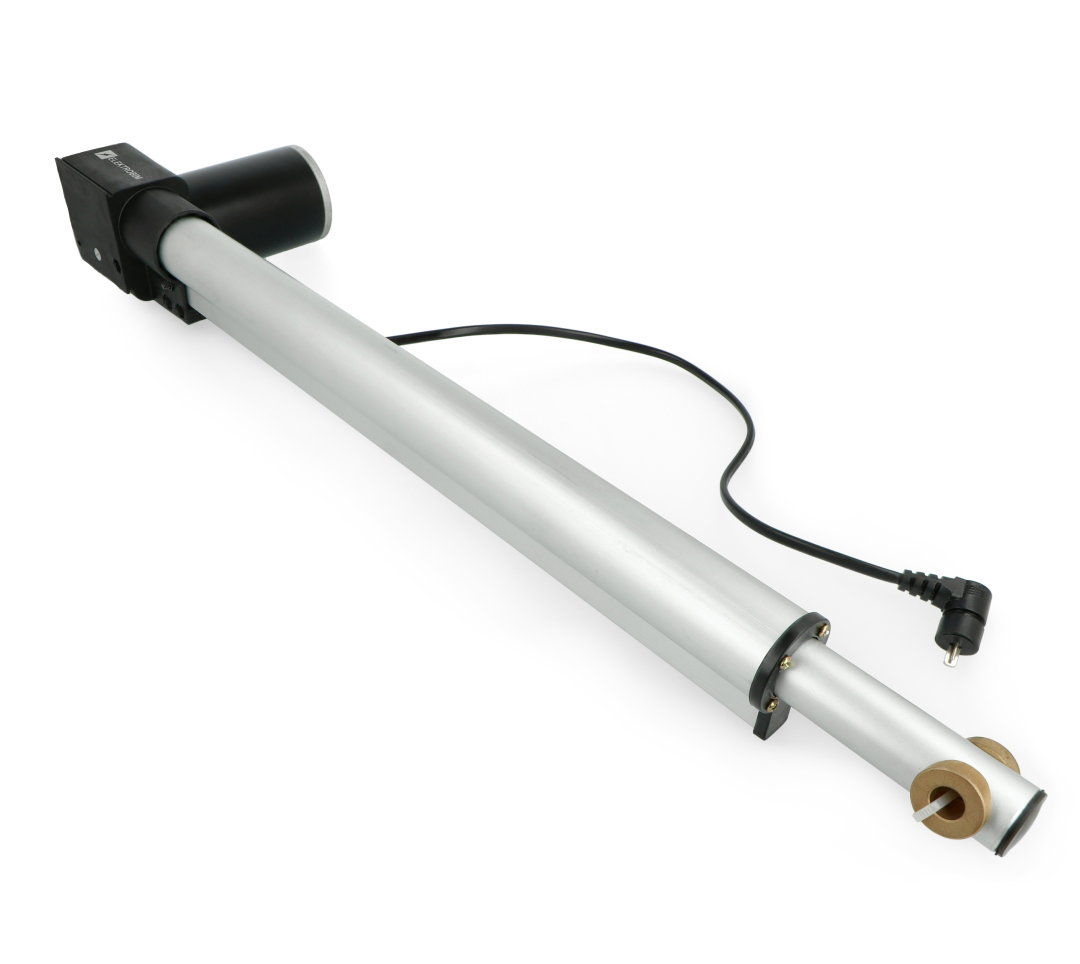

Linear Actuator Super Power Jack 1500N 20mm/s 24V - 40cm stroke

Index: ELB-15883 EAN: 5905644490406

Industrial, professional FDI electric actuator powered by 24 V, suitable for heavy duty applications. The FDI series is characterized by motors made of the highest quality materials, perfect workmanship and very high reliability. It has a load capacity of 1500 N (150 kg) and operates at 20 mm/sec. The maximum current consumption is 3 A. The arm extension is 40 cm.

Linear Actuator Super Power Jack 1500N 20mm/s 24V - 40cm stroke
€90.00
€73.17 tax excl.
Available
Shipping in 24 hours
PayPal payment
Electric actuator FDI 1500N 20mm/s 24V - extension:
Manufacturer: Elektrobim

Product description: Electric actuator FDI 1500 N 20 mm/s 24 V - 40 cm extension

Industrial, professional FDI electric actuator powered by24 V,adapted to heavy duty conditions. FDI series is characterized by motors made of the highest quality materials, perfect workmanship and very high reliability. It has a load capacityof 1500 N (150 kg) andoperates at 20 mm/sec. The maximum current consumption is 3 A. The extension of the actuator arm is 40 cm.Limitswitchesprotectagainst exceeding the extension range.

The devices are available in different variants:

Thanks to the high quality materials used and their precise fit, the cylinders are very stable and quiet. Apower of 50 Wensures that the actuator can withstandhigh loads under extremeoperating conditions.

Siłownik elektryczny FDI

FDI 1500 N 20 mm/sec 24 V - 40 cm extension.

Applications for FDI electric actuators

The FDI actuator series is made of high quality materials and therefore has versatile applications. It is ideal forindustrialautomationin factories,warehouses, etc., but is also suitable as an actuator for bedsor operating tables.It will also find its place in the household.

24 V linear actuator specification FDI 1500 N 20 mm/sec.

Name Parameter
Supply voltage 24 V DC
Speed 20 mm/s
Maximum power 1500 N (150 kg)
Maximum supply current 3 A
Power supply 50 W
Extension length 400 mm
Overall length in assembled condition L(min) 595 mm
Leakage class IP42
Operating temperature From -5°C to 45°C
Limit switches Yes

Torque 150 kg*cm
Voltage nominal 24 V
Motor - linear speed 20 mm/s
Motor - eject 40 cm
Package width 65 cm
Package height 8 cm
Package depth 15 cm
Package weight 2.4 kg
