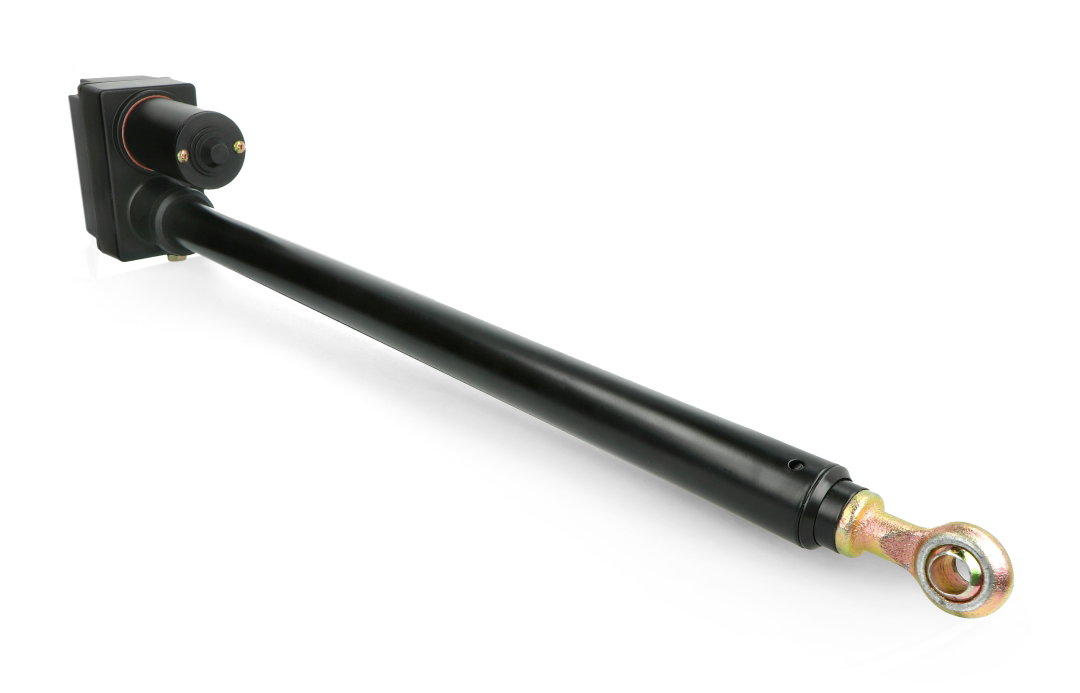

Product description: Super Power Jack 2000N electric actuator 7.5mm/sec 24V - 44 cm extension.
Super Power Jack electric actuatorfromElektrobim. Powered by 24 V, it has a lifting capacity of 2000 N (200 kg). It operates at 7.5 mm/secand has a maximum current draw of up to2.1 A. The 48 pulses per inch resolution pulsator provides information about the current position of the actuator. The device is equipped with limit switches to ensure that the extension range is not exceeded. The change of direction is carried out on the same principle as inDC motors- it is done by reversing the polarity.
|
The devices are available in various versions with extension lengths:15 cm,20 cm,25 cm,30cm,44 cm,61 cm. |
Linear actuator from Elektrobim.
Main features of Super Power Jack 2000 N 7.5 mm/s 24 V electric actuator - 44 cm extension
- Load capacity up to 2000 N (200 kg)
- Stability of operation regardless of weather conditions
- Convenient attachment of the actuator
- Safe voltage: DC 24 V
- High resistance to external influences in the working environment
- Extension length adjustment
- Different voltage versions: 12 V, 24 V, 36 V
Set contents
- Super Power Jack linear actuator
- Mounting screws
- Seal to the end of the arm
Actuator adjustment instructions
The manufacturer has prepared instructions in the form of a video which shows how to adjust the limit switches located in the actuator.
Controlling the electric actuator
- Radio, via remote control and controller
- Push-buttons for manual control on power supply lines
- Automation of sensor-based operation
Technical specification
| Name | Parameter |
|---|---|
| Supply voltage | 24 V DC |
| Current consumption | up to 2.1 A |
| Resolution of the built-in pulser | 48 pulses per inch |
| Speed | 7.5 mm/s |
| Maximum power | 2000 N (200 kg) |
| Extension length L | 440 mm |
| Overall length in assembled condition | 690 mm |
| Diameter of the arm | 32 mm |
| Bottom body dimensions (DxSxG) | 120 x 72 x 50 mm |
