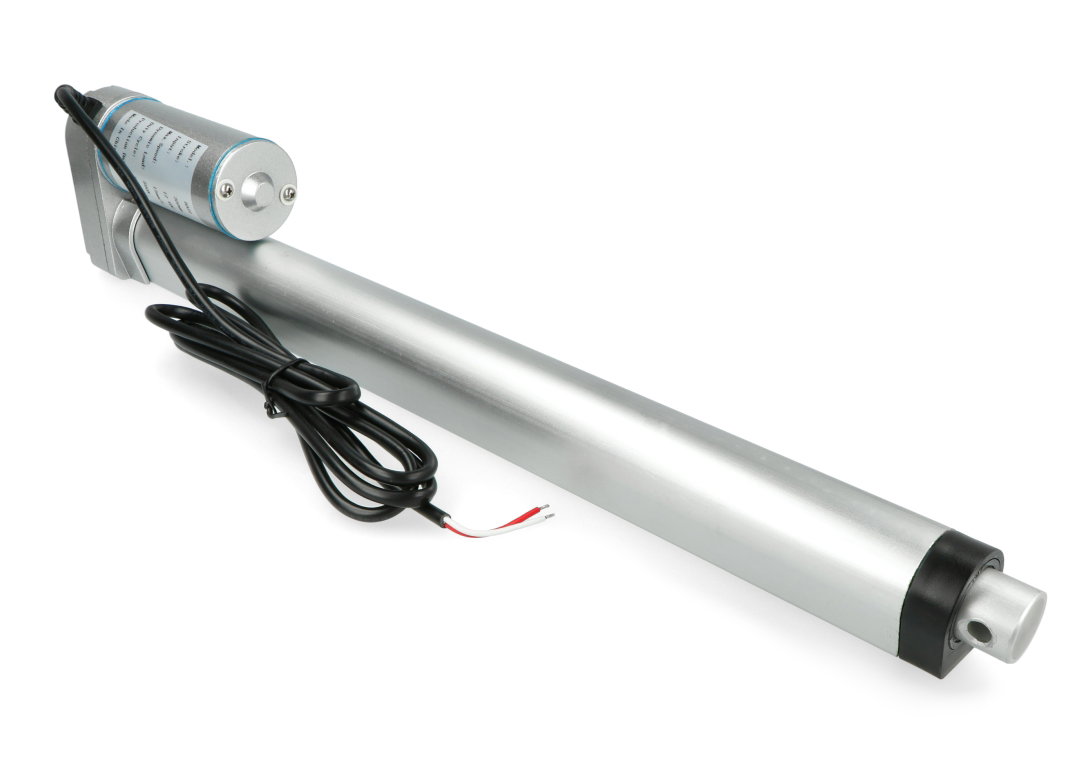

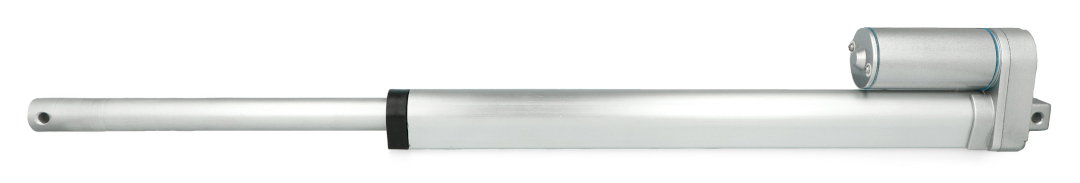

Linear Actuator LAD 500N 15mm/s 12V - 30cm stroke
Linear actuator powered by 12 V with IP65 protection class and 30 cm extension. Load capacity is 500 N (50 kg). The actuator operates at 15 mm/sec. It has a limit switch protection against exceeding the maximum extension. The maximum current consumption is 2 A. The actuator has a metal back mount for easy installation.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Elektrobim products. Elektrobim is a Polish company that designs, manufactures and distributes electric drives, linear actuators and industrial automation components. Elektrobim products are known for their build quality and reliability, which earns them the trust of customers across many industries. Botland carries a wide range of original Elektrobim products supporting advanced automation systems.
Product description: electric actuator LAD 500 N 15 mm/sec 12 V - 30 cm extension
Linear actuator powered by12 VwithIP65 protectionclass with 30 cm extension. Load capacity is500 N(50 kg). The actuator operates at15 mm/sec. It has alimit switchprotection against exceeding the maximum extension.The maximum current consumption is 2 A. The actuator has a metalback mountfor easy installation.
The actuator usesmetal gear modes, which significantly increases its life and precision. Thanks to its high tightness class it can be used even in unfavourable external conditions. The actuatorcan be controlled by means of buttons or relays.As in DC motors,thedirection ischangedby reversing the polarity.
Electric actuator LAD 500 N 15 mm/s 12 V - 30 cm extension.
Example application of the LAD 500 N linear actuator
- In photovoltaic installations, when setting the tilt angle of the solar panel
- In off-road vehicles, for the height adjustment of the boot flaps
- Supporting the opening and closing of industrial valves
- Precision mechanics
- Home automation: opening and closing doors and windows
- Industrial and agricultural machinery components
12V actuator specification
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Current consumption | up to 2 A |
| Speed | 15 mm/s |
| Maximum power | 500 N (50 kg) |
| Duty cycle | 20% |
| Extension length | 300 mm |
| Overall length in assembled condition L1 | 413 mm |
| Diameter | 20 mm |
| Operating temperature | from -25°C to 65°C |
| Safeguards | Limit switches |
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 50 kg*cm |
| Voltage nominal | 12 V |
| Motor - linear speed | 15 mm/s |
| Motor - eject | 30 cm |
| Width | 43.2 cm |
| Height | 5.7 cm |
| Depth | 9.5 cm |
| Weight | 1.15 kg |
