Product description: electric actuator LAD 500 N 15 mm/sec 12 V - 15 cm extension
Powerful electric actuator with IP65 protection class and maximum extension of 15 cm. Adapted for 12 V power supply. Can lift up to 50 kg (500 N). It operates at 15 mm/sec. Current consumption of the actuator is maximum 2 A. Built-in limit switches prevent exceeding the extension range. As with DC motors, the direction is changed by reversing the polarity.
|
The devices are available in various versions with extension lengths:15 cm,20 cm,25 cm,30 cm. |

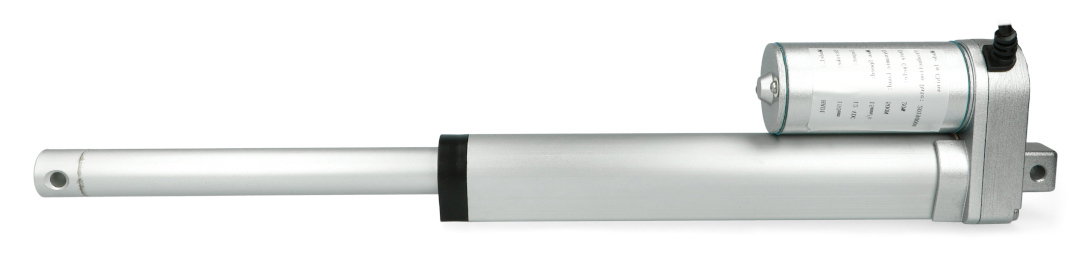

Electric actuator LAD 500 N 15 mm/s 12 V - 15 cm extension.
The actuator is easy to use and can be controlled via buttons or relays. It has durable,metal gear modes. High tightness class enables its use even in unfavourable external conditions. Thanks to the use of a rear mount, mounting the actuator does not cause problems even for less experienced users.

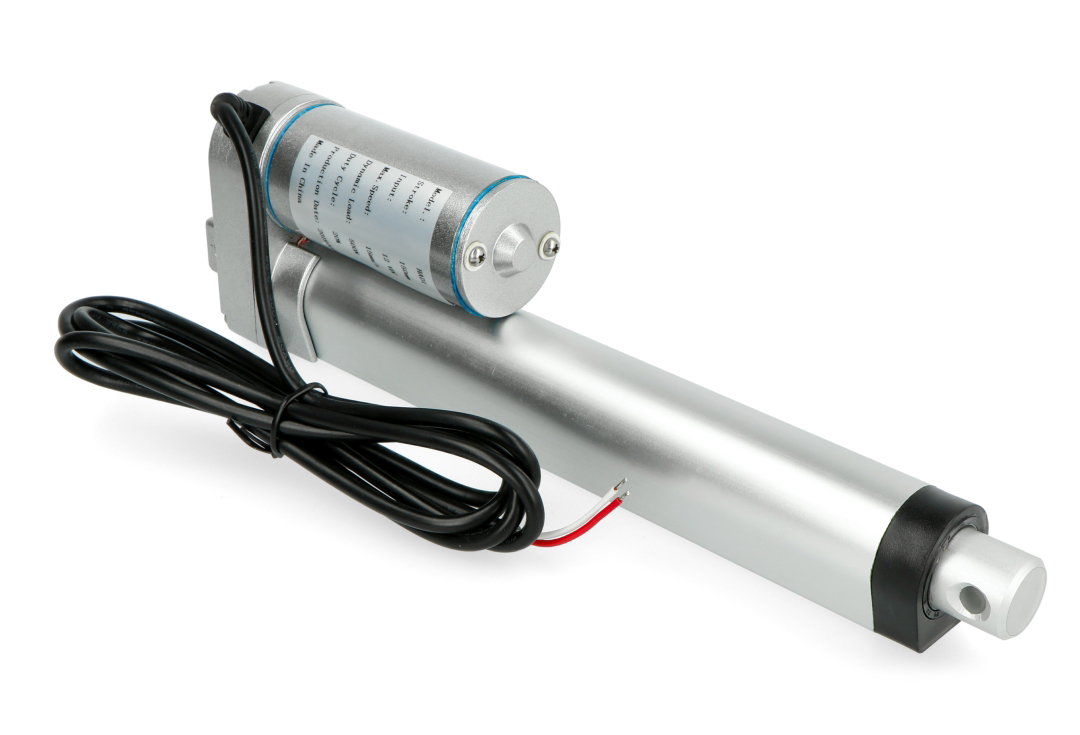

Electric actuator LAD 500 N 15 mm/sec 12 V. Other linear actuators are also available.
Example application of the LAD 500 N electric linear actuator
- Precision automatic components
- Industrial and agricultural machinery components
- Home automation elements such as doors, windows, gates
- In motor vehicles for the adjustment of, among others, the plough in quads
- Supporting the opening and closing of industrial valves
- In photovoltaic installations
12V actuator specification
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Current consumption | up to 2 A |
| Speed | 15 mm/s |
| Maximum power | 500 N (50 kg) |
| Duty cycle | 20% |
| Extension length | 150 mm |

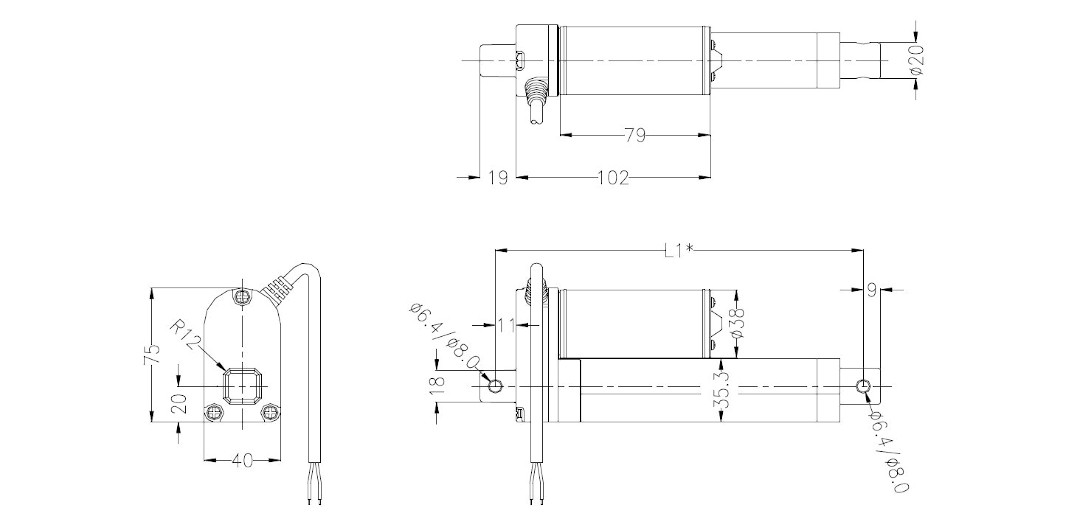

| Overall length in assembled condition L1 | 260 mm |
| Diameter | 20 mm |
| Operating temperature | from -25°C to 65°C |
| Safeguards | Limit switches |
LAD 500 N 12 V.
