Product description: Electric actuator LAD 500 N 15 mm/s 12 V - extension 5 cm
The LAD electric actuator powered by 12 V with a maximum load capacity of up to 50 kg (500 N) and an extension of 5 cm is a reliable solution for users who value efficiency and versatility. The device offers an advance speed of 15 mm/s , which makes it an excellent choice for precise tasks. Metal gears in the gearbox guarantee long service life and resistance to overloads, which is an advantage over actuators with plastic gears. This actuator is designed with the utmost care and made of tested materials. Thanks to the high IP65 tightness class, it is resistant to external conditions, which makes it ideal for outdoor applications in a wide temperature range from -15°C to 65°C . The actuator is easy to use, can be controlled using buttons or relays, and the direction changes after changing the polarity.

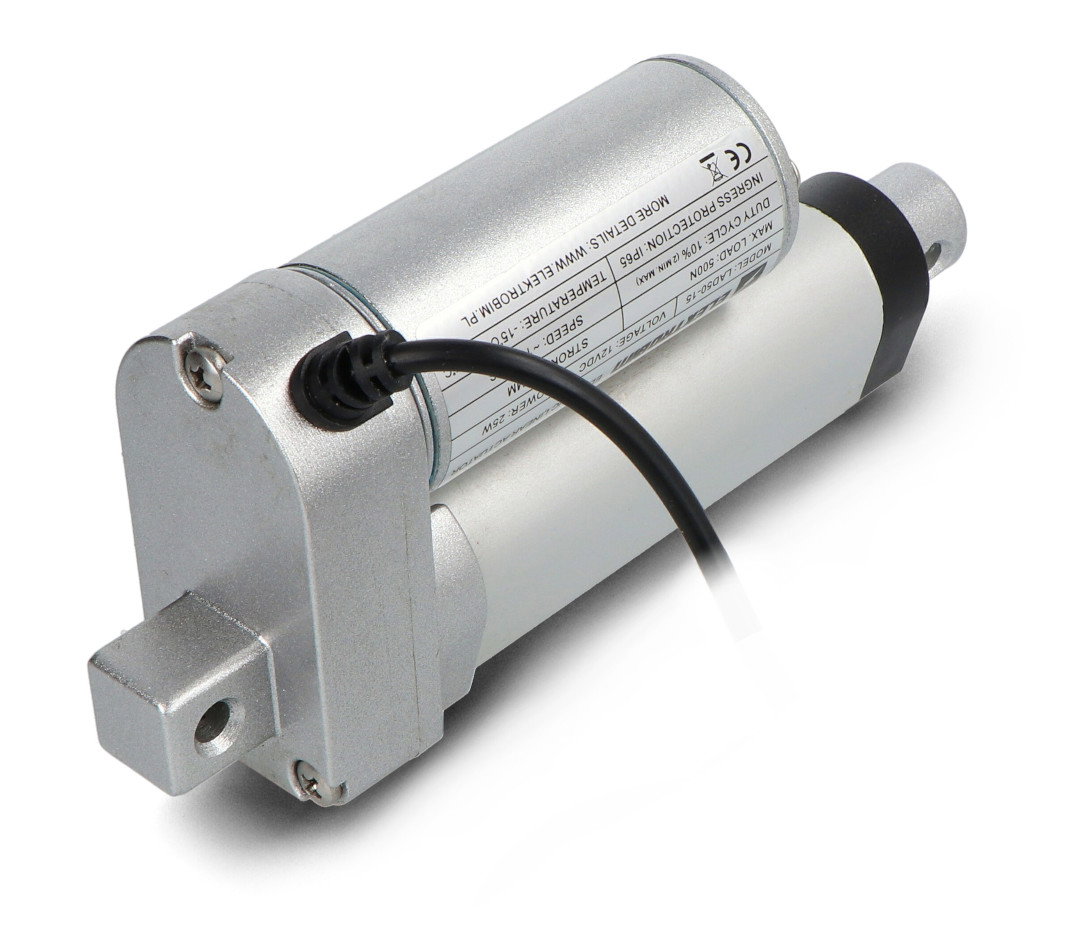

Electric actuator LAD 500 N 15 mm/s 12 V - extension 5 cm.
Electric actuator powered by 12 V, with a maximum load capacity of up to 50 kg (500 N).
Special features of the actuator
- Maximum load capacity up to 50 kg (500 N) at 12 V.
- Piston rod extension of 5 cm.
- Feed speed up to 15 mm/s, which ensures fast and effective operation.
- IP65 tightness class, ensuring resistance to dust and moisture, ideal for outdoor applications.
- Metal gears in the gearbox for durability and reliability in industrial environments.
- Simple operation, which makes it ideal for both professionals and less experienced users.
Our store offers a wide selection of other models of linear actuators .
LAD actuator

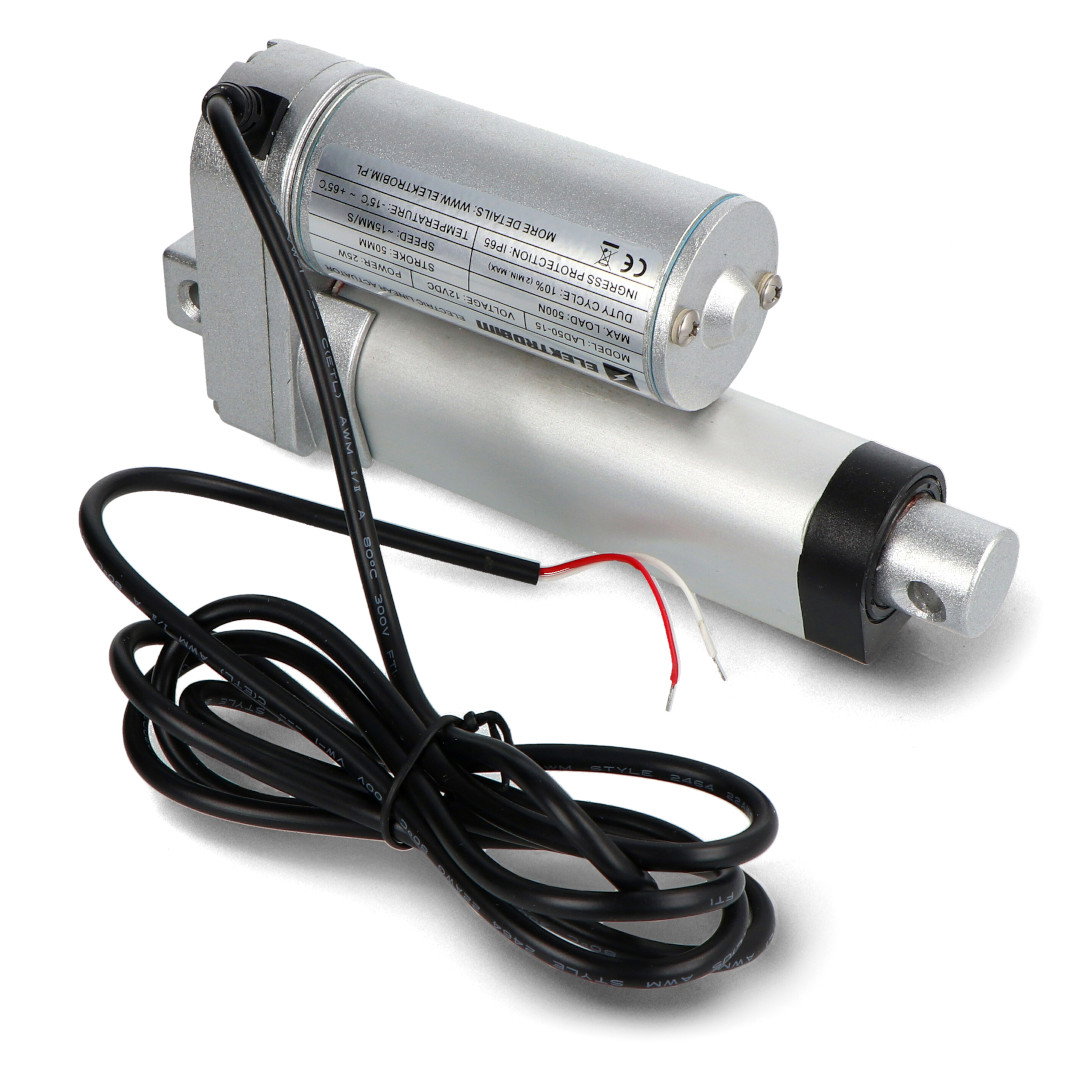

The LAD actuator is characterized by simplicity of use and ease of installation. It has two leads in the form of wires that enable control using buttons or relays. Changing the direction of operation is accomplished by reversing the polarity, as with DC motors . Thanks to the IP65 tightness class, the actuator is adapted to work in difficult outdoor conditions. Limit switches ensure safety by preventing the maximum extension from being exceeded. The mounting bracket located on the back of the housing allows for easy installation, even for less experienced users.
The actuator offers an extension speed of 15 mm/s.
Example application of the LAD linear actuator
- Automation actuators requiring precision
- Linear machine elements
- Doors, gates and windows
- Boats with 12 V installation (raising engines and hatches)
- Agricultural machinery (height adjustment and setting, seeder control, valves or cutting height)
- Opening the hen house, dispensing food
- Off-road vehicles (opening and closing the trunk or trunk)
- Sun tracking with solar collectors
- Caravans and campers (leveling, spacing and mechanical support)
- Controlling arms, manipulators, pulling up, turning

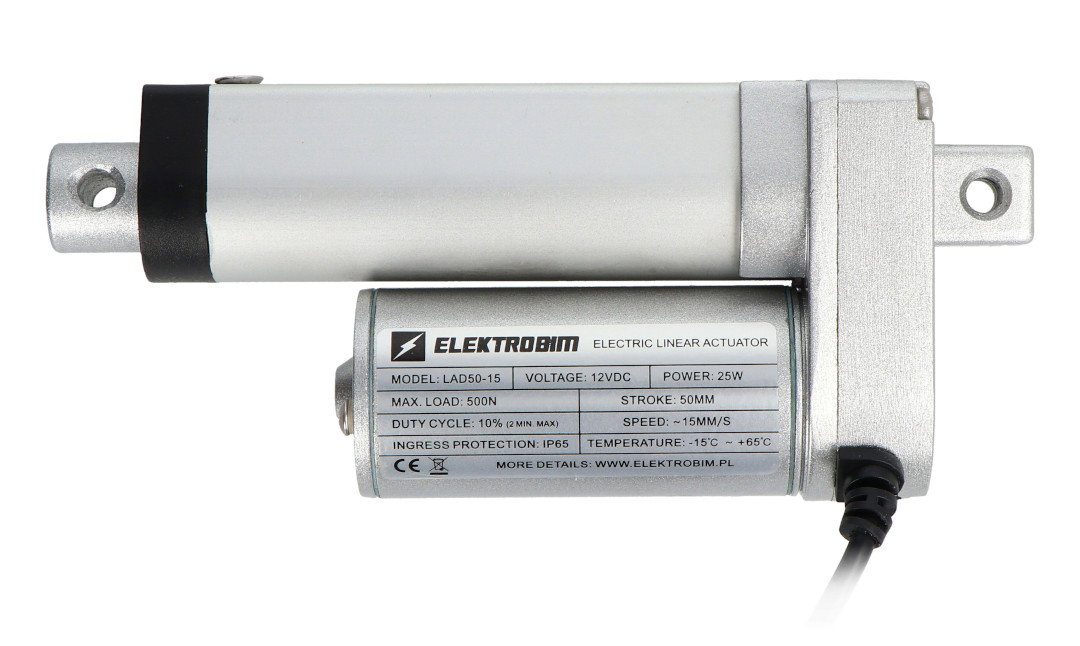

Technical specifications of the LAD 500 N 15 mm/s linear actuator
| Name | Parameter |
|---|---|
| Supply voltage | 12VDC |
| Power consumption | up to 3 A |
| Speed | 15 mm/s |
| Maximum strength | 500 N (50 kg) |
| Extension length | 50mm |
| Diameter | 20mm |
| Length of the actuator in the folded state | 158mm |
| Tightness class | IP65 |
| Security | Non-adjustable limit switches |
| Duty cycle | 10% (max. 2 minutes of continuous operation) |
| Working temperature | from -15°C to 65°C |
