Monochrome OLED graphic display 0,96'' 128x64px I2C/SPI - DFRobot DFR0650

Index: DFR-16710 EAN: 6959420916726

Monochrome OLED graphic display with 0.96" diagonal and 128 x 64 px resolution. For communication with the microcontroller it uses I2C or SPI interface, the default is I2C. It is characterized by high contrast and low power consumption. The screen is powered by 3.3 V or 5 V.

Monochrome OLED graphic display 0,96'' 128x64px I2C/SPI - DFRobot DFR0650
€16.90
€13.74 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: OLED monochrome graphic display 0,96'' 128x64px I2C/SPI - DFRobot DFR0650

Monochrome OLED graphic display with0.96"diagonaland128 x 64 px resolution.The module basedon SSD1306 chip forcommunication withthe microcontroller uses I2C or SPI interface, the defaultis I2C.It is characterized by high contrast and low power consumption. The screen is powered by3.3 V or 5 V. Compatible withArduino, ESP32, FireBeetle, among others.

Wyświetlacz OLED monochromatyczny graficzny 0,96

OLED monochromatic 0.96" graphic display.

Product compatible with Arduino

The manufacturer prepared auser guide andlibraryforArduino users.

Main features of OLED monochrome display

  • Self-illuminating OLED display.
  • Controlled pixels and low power consumption.
  • I2C / SPI communication - default I2C.
  • Supports reset after power on.

Attention!

When the screen is not in use, switch it off. Excessively long display may reduce the brightness of individual pixels.

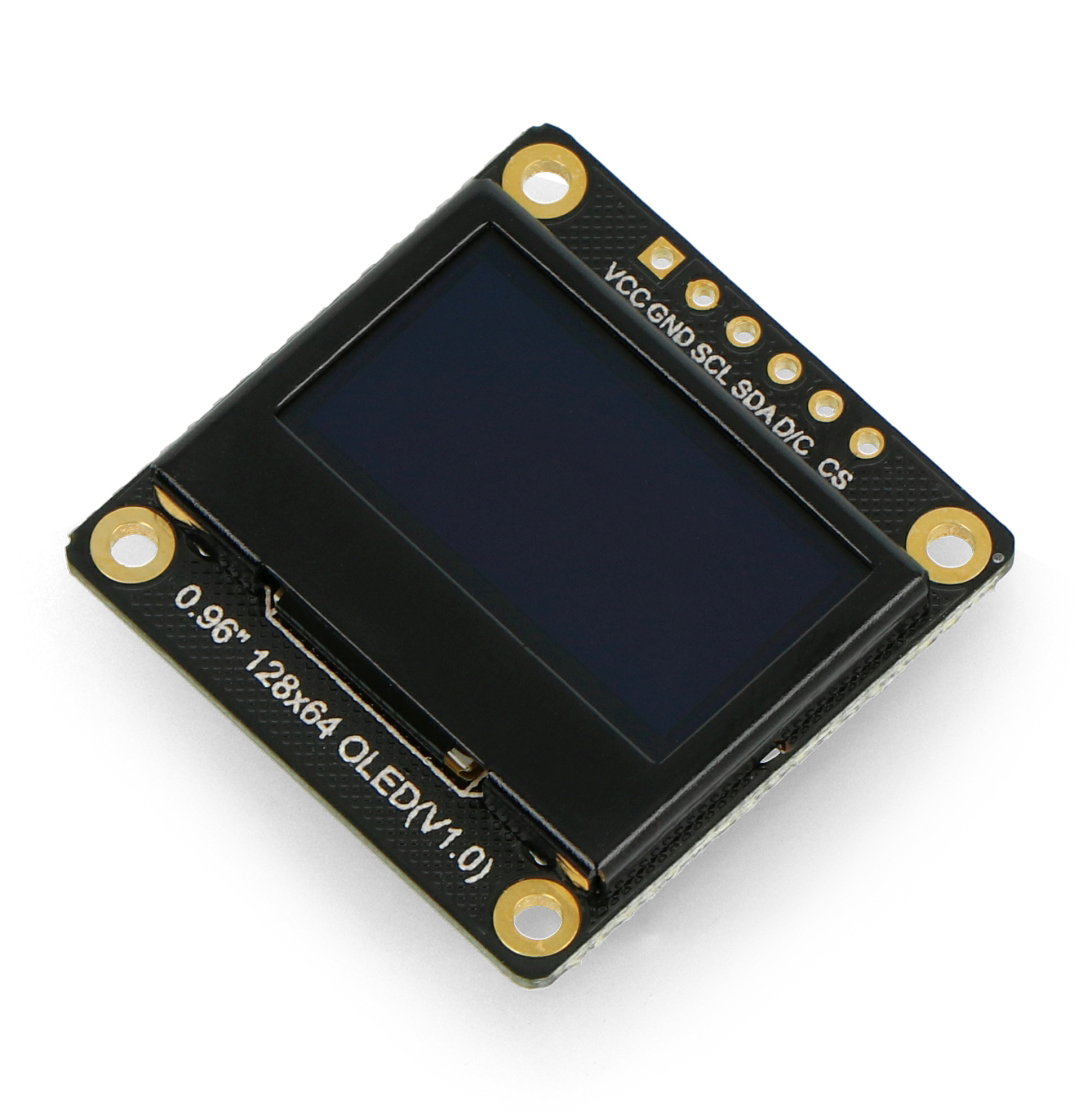

Connection of graphic OLED display 0.96".

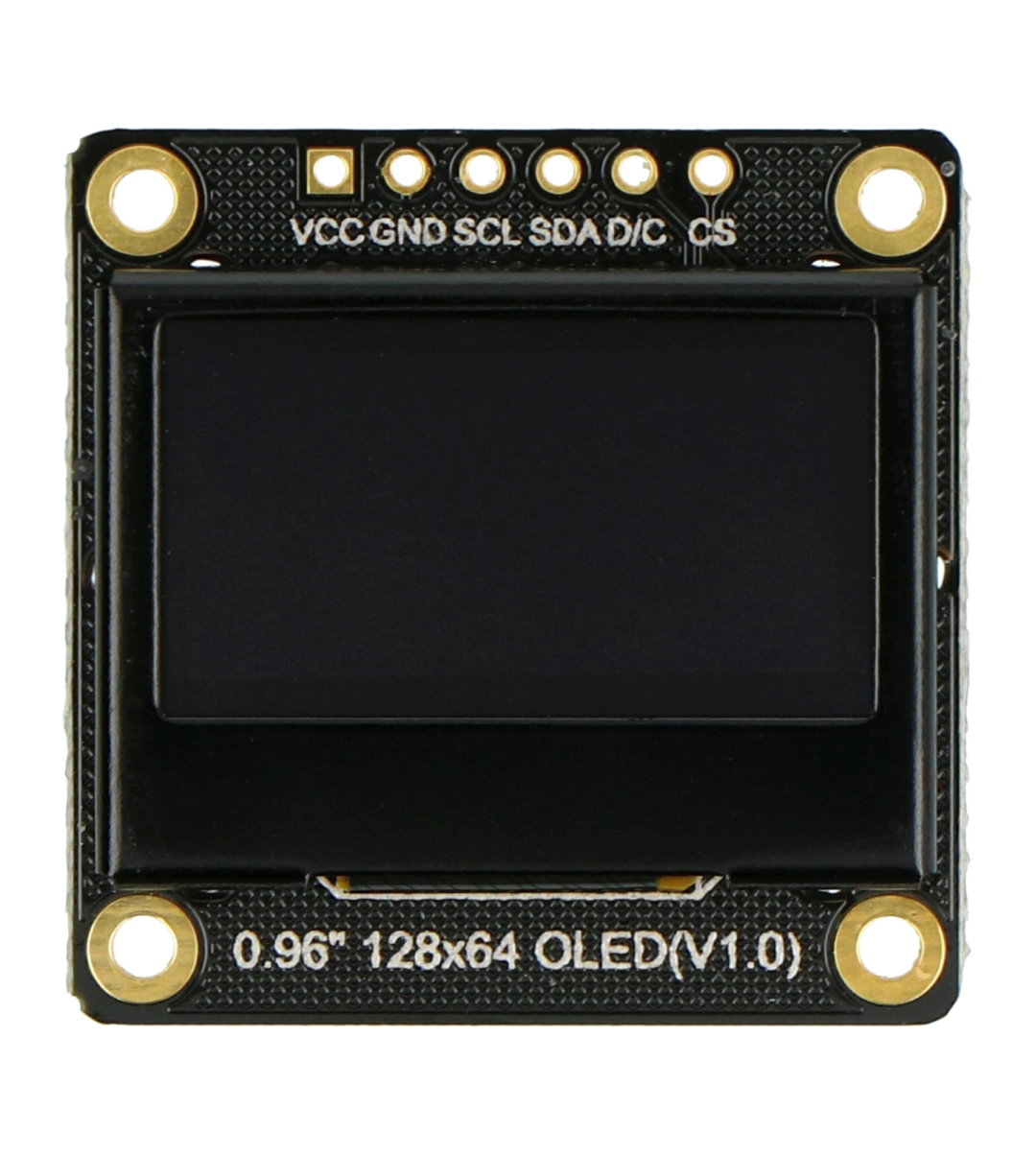

The module is equipped with goldpin connectors - 2.54 mm raster, communicates via I2C or SPI interface. The description of individual outputs can be found in the table.

Wyprowadzenia wyświetlacza

Displayoutputs.

Pin Symbol Description
1 VCC Supply voltage from 3.3 V to 5.0 V.
2 GND The weight of the system.
3 SCL Clock line I2C / SPI.
4 SDA I2C / SPI data line.
5 D/C Pin for SPI command data transmission.
6 CS Choice of SPI system.

Application of OLED display

  • Thermometer
  • Weather display
  • Kitchen scale display
  • Air quality detector
  • Small game console
  • Intelligent clothes display

Monochrome OLED display specification

  • The tension of work: 3.3 V and 5 V
  • Colour of characters: white
  • Number of pixels: 128 x 64
  • Interface: I2C (default) / SPI
  • I2C address: 0x3C
  • The deal: SSD1306
  • Brightness: 180 cd/m2
  • Power consumption at full backlight:
    • I2C: approx. 24 mA
    • SPI: approx. 27 mA
  • Power consumption with backlight off:
    • I2C: approx. 2 mA
    • SPI: approx. 2.87 mA
  • Operating temperature: -30°C to 70°C
  • Display area: 21,744 x 10,864 mm
  • Dimensions: 30 x 30 mm
  • Weight: 4,2 g

Screen - type OLED
Screen - diagonal 0,96"
Screen - interface I2C
Screen - touch no
Screen - resolution 128x64px
Voltage to 3.3 V
Voltage from 5.0 V
Package width 5.5 cm
Package height 2.5 cm
Package depth 6.3 cm
Package weight 0.01 kg
