Product description: Glass2 Unit - with a transparent OLED display 1.51'' 128 x 64 px - M5Stack U158-B
Glass2 Unit is a module with a 1.51" OLED display and SSD1309 controller. The display area is 35.5 x 18 mm and the screen resolution is 128 x 64 px . Moreover, the display has a 256-level brightness control, which allows you to obtain a readable and clear image in virtually all lighting conditions. The Glass2 Unit does not contain an STM32 MCU , but it does improve refresh performance, allowing for faster content updates or response to input signals. It also provides much smoother image and animation display . The board is compatible with M5Stack development modules and peripheral devices from this manufacturer. It uses the I2C communication interface with the default address 0x3C.
Also check out the user guide prepared by the manufacturer, which makes it easier to start working with the module.

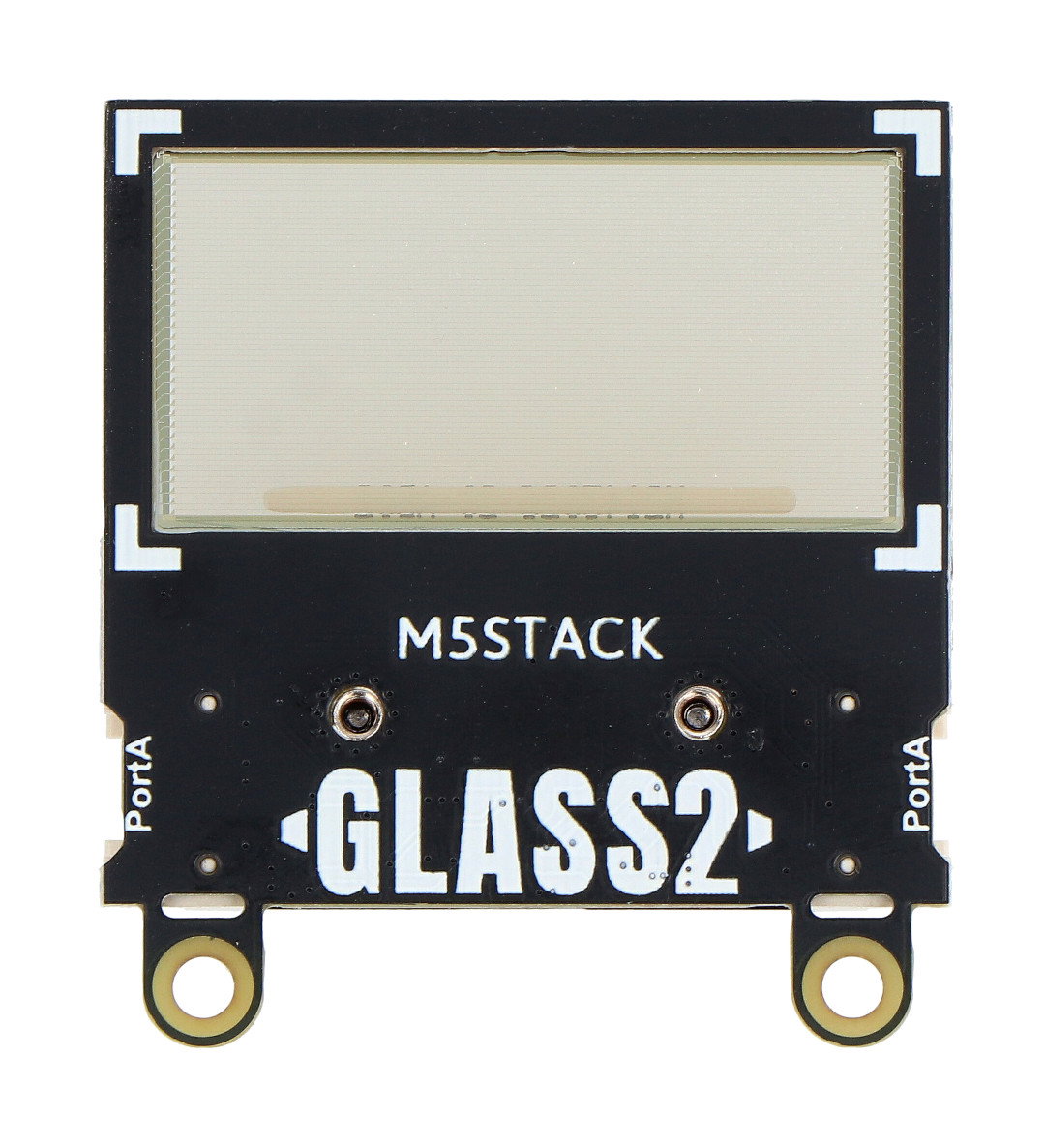

Glass2 Unit - with a transparent OLED display 1.51'' 128 x 64 px - M5Stack U158-B.

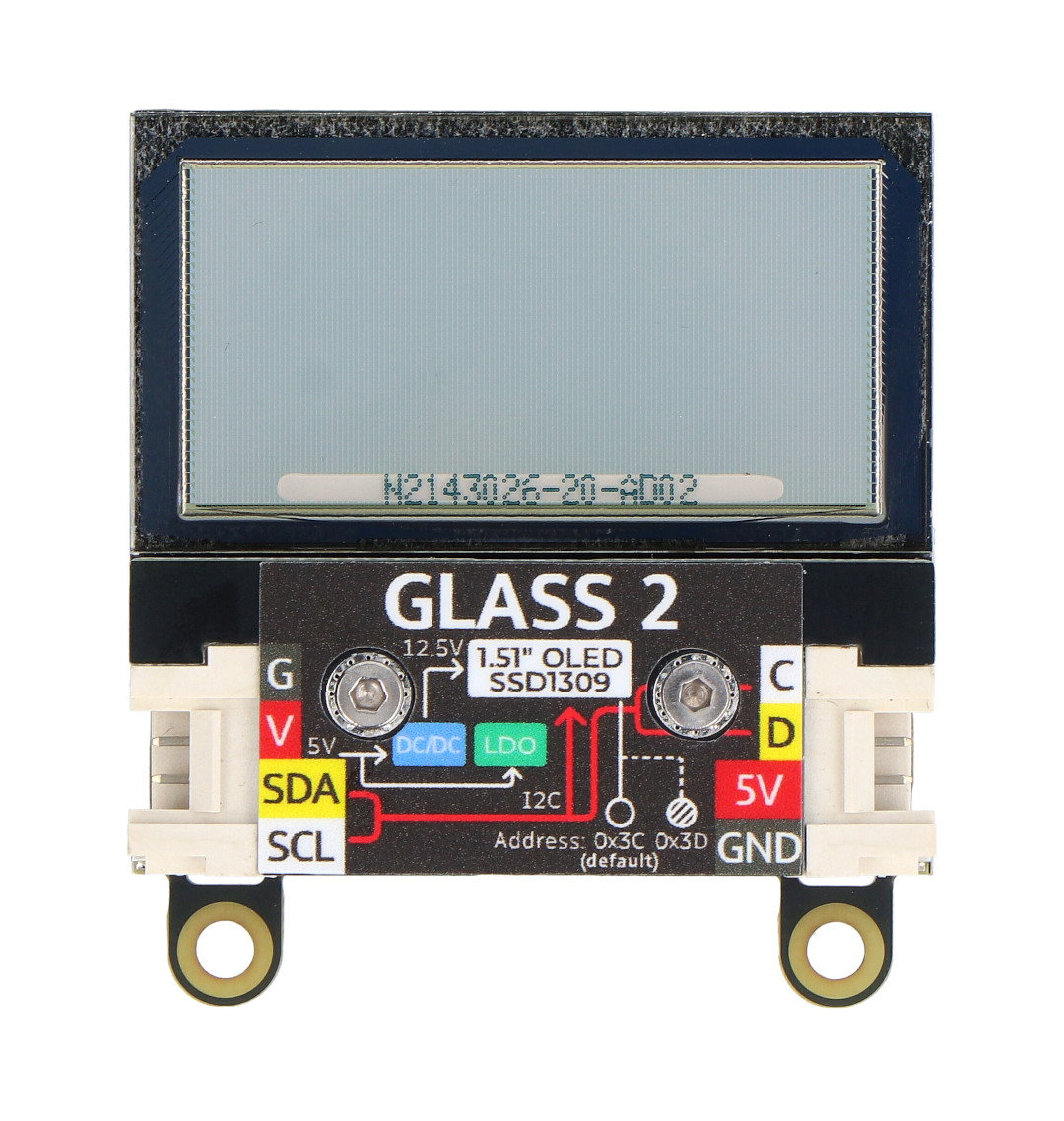

The Glass2 Unit module does not contain the STM32 MCU.
Special features of the Glass2 Unit
- It does not contain an STM32 MCU, which improves refresh performance and allows for faster updating of the presented content.
- It is used when creating game prototypes, as well as in creating personalized interfaces for presenting data and DIY toys.
- It has a 256-level display brightness control, thanks to which the user can personalize the quality of the presented content.
Technical Specifications
- Communication interface: I2C bus
- Interface address: 0x3C by default, configurable to 0x3D
- Logic voltage: 3.3V
- Display: OLED
- Built-in driver: SSD1309
- Diagonal: 1.51"
- Resolution: 128 x 64 px
- Display color: blue
- Viewing angle: full view
- Display area: 35.05 x 18 mm
- Screen dimensions: 42.04 x 27.16 x 1.25 mm
- Module dimensions: 136 x 92 x 13 mm
- Weight: 9.1 g
Set contents
- Glass2 Unit - with a 1.51'' OLED display, 128 x 64 px
- Connection cable with Grove connector - 20 cm

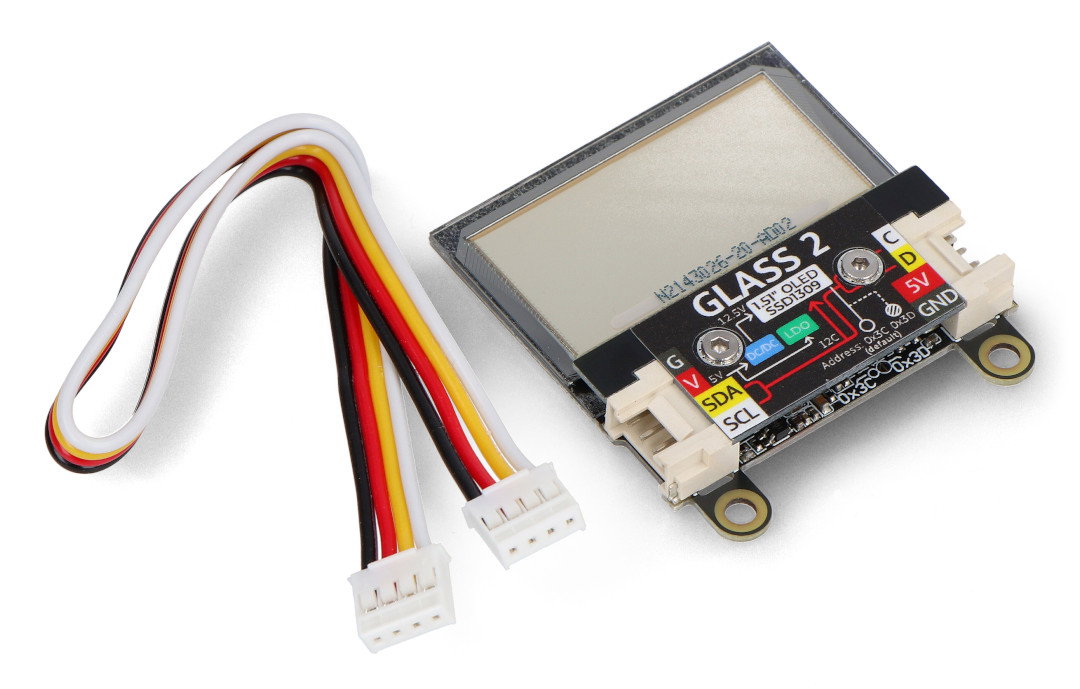

Elements included in the set.
