Product description: Grove - 0,66'' OLED display (SSD1306) 64x48px I2C - Seeedstudio 104020248

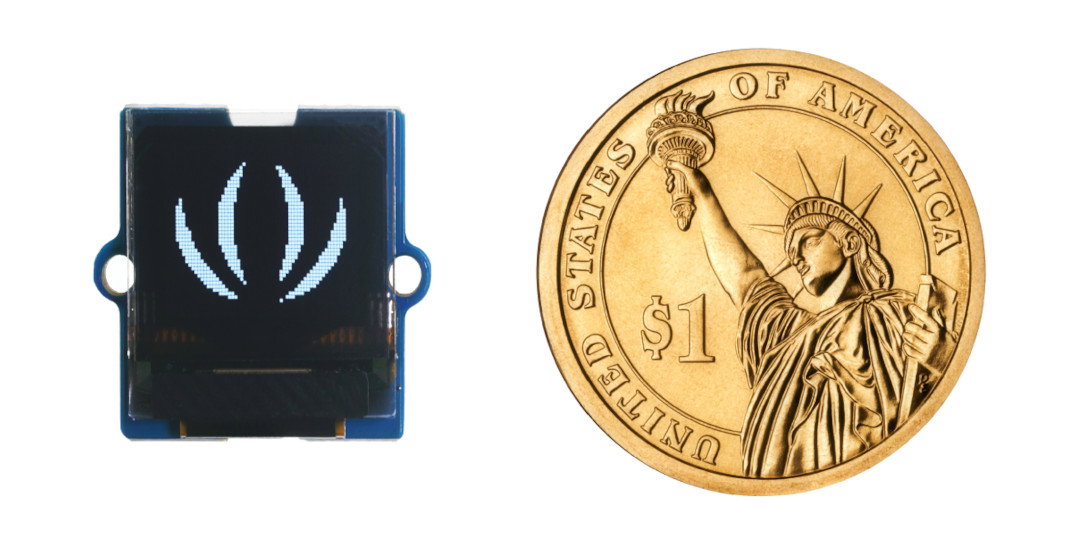

Monochrome OLED display produced by Seeedstudio. The screen is based on SSD1306 chip, its diagonal is 0,66" and resolution is 64 x 48 px. The module is equipped with Grove connector and communicates with the microcontroller using I2C interface. The supply voltage is 3.3 V or 5 V. The set also includes a cable for connection with Seeedstudio Base Shield v2.0 overlay. The display also supports U8g2 libraries.
Product is compatible with Arduino.
Manufacturer prepared user guide with example program for Arduino.

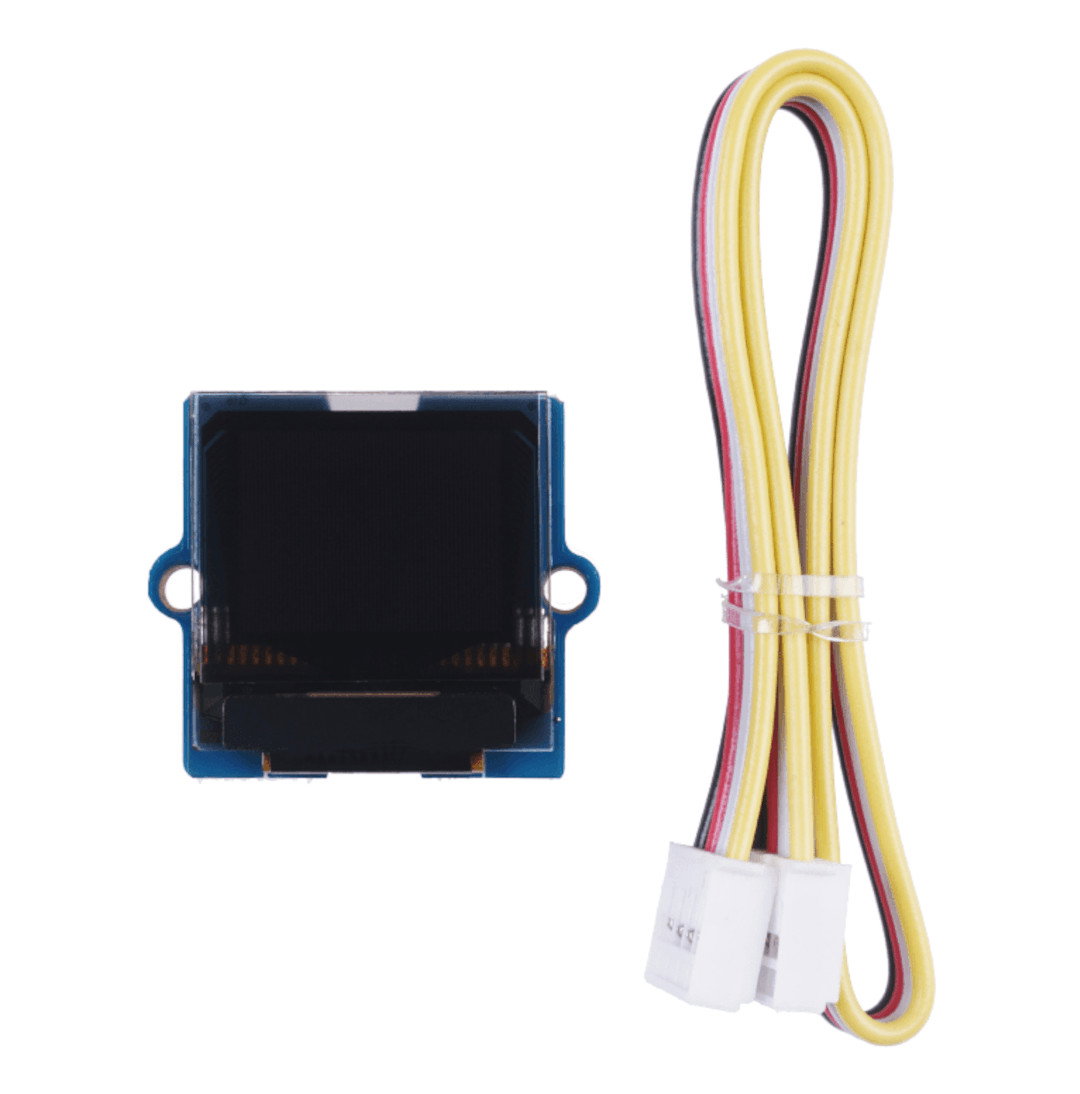

0.66" OLED display with Grove connector and compatible cable.
Leads of the OLED display.Display pinout description
The display has a 4-pin connector in the Grove system standard, which allows easy connection to a microcontroller equipped with the same type of connector. The module has the following leads:
- GND: system ground
- VCC: supply voltage 3.3 V or 5 V
- SCL: I2C bus clock line
- SDA: I2C bus data line
OLED display specification
- Chip: SSD1306
- Type: monochrome OLED
- Diagonal: 0.66"
- Interface: I2C
- Supply voltage: 3.3 V or 5 V
- Output voltage: 0 V to 2.3 V
- Temperature range: from -40°C to 85°C
- Dimensions: 20 x 20 x 4 m
- Weight: 9 g
Contents of the set
- Grove - 0.66'' OLED display (SSD1306) 64x48px I2C
- Grove cable

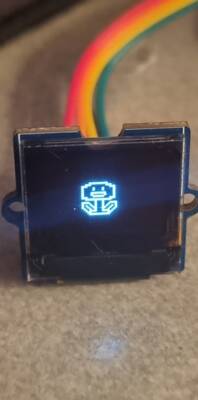

Monochrome 0.66" OLED display.
