2.23'' 128x32px OLED display - SPI/I2C - black/white - for Raspberry Pi Pico - Waveshare 19750

Index: WSR-19539 EAN: 5904422371937
A display dedicated to the popular Raspberry Pi version Pico. It has a built-in SSD1305 driver and uses SPI and I2C buses. The screen resolution is 128 x 32 px and its diagonal is 2.23''. The module presents the image in two colors - black and white, and the size of a single pixel is 0.41 × 0.39 mm.
2.23'' 128x32px OLED display - SPI/I2C - black/white - for Raspberry Pi Pico - Waveshare 19750
€14.90
€12.11 tax excl.
Delivery 10 pcs scheduled for 2024-04-12
Waiting for delivery
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: 2.23'' 128 x 32 px OLED display - SPI / I2C - black and white - for Raspberry Pi Pico - Waveshare 19750

Displaydedicated to popularRaspberry Pi Pico version. It has built-inSSD1305driver and usesSPIandI2Cbuses. Thescreenresolution is128 x 32 pxand its diagonal is2.23''. The module presents the image in two colors -blackandwhite, and the size of a single pixel is 0.41 × 0.39 mm.

The OLED display for Raspberry Pi Pico has been manufactured by Waveshare.

Product compatible withRaspberry Pi Pico

The manufacturer provides aproduct wiki pagethat provides information about the module's pinouts and a detailed user guide.

The display pinouts are compatible with the connector on the Raspberry Pi Pico.

Leads

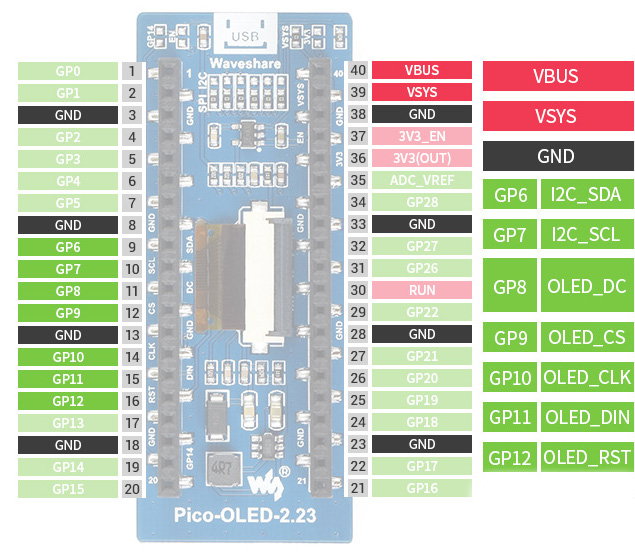

The displayhas pinouts in the form offemale connectors for easy connection to the Raspberry Pi Pico. Among the pinouts are:

  • VBUS- power pin from 3.3 V to 5.5 V
  • VSYS- power supply pin from 1.8V to 5.5V
  • GND- ground of the chip
  • I2C_SDA- I2C interface data line input pin (optional)
  • I2C_SCL- I2C interface clock input pin (optional)
  • OLED_DC- SPI bus data / commands select pin (high state - data; low state - commands)
  • OLED_CS- Chip Select
  • OLED_CLK- SPI clock input pin
  • OLED_DIN- SPI data line input pin
  • OLED_RST- RESET pin (activated by low state)

Technical specification of the display

  • Dedicated toRaspberry Pi Pico version
  • Type: OLED display
  • Communication interface: SPI / I2C 4-pin
  • Display diagonal: 2,23''
  • Display resolution: 128 x 32 px
  • Pixel size: 0.41 x 0.39 mm
  • Viewing angle: > 160°
  • Display colors: black and white
  • Logic voltage: 3,3 V
  • Operating voltage: 3.3 V / 5 V
  • Programming language: C / C++ / MicroPython
  • Embedded controller: SSD1305
  • Display dimensions: 55.02 x 13.10 mm
  • Module dimensions: 63 x 26 mm

Display can be programmed using C / C++ or MicroPython language. Only the display is included in the sale - Raspberry Pi and externader need to be bought separately.

Screen - type OLED
Screen - diagonal 2.23 "
Screen - interface SPI+I2C
Screen - touch no
Screen - resolution 128x32px
Package width 5 cm
Package height 7 cm
Package depth 2.5 cm
Package weight 0.022 kg
