Description

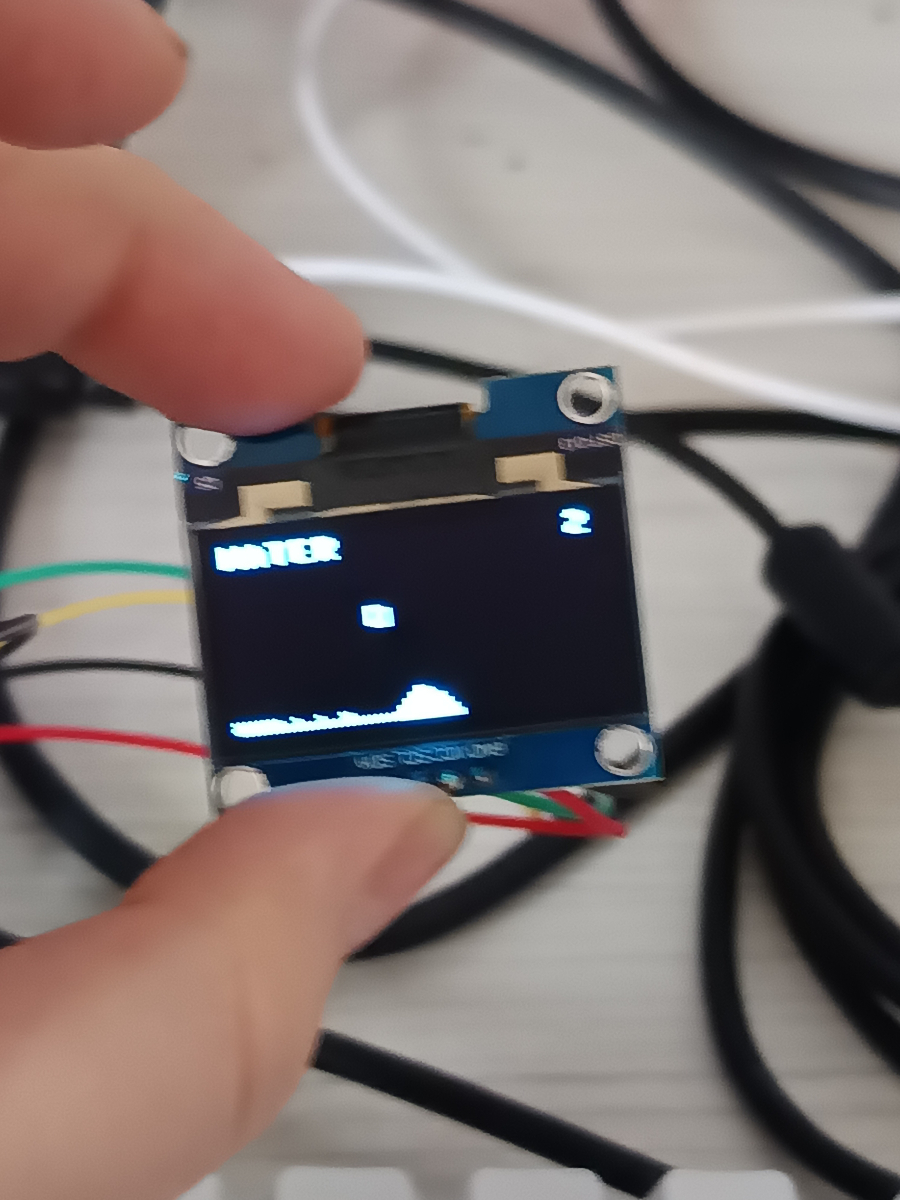

OLED blue display with a diagonal of 1.3" and a resolution of 128 x 64 px. The screen is based on SH1106 driver, it works with voltages of 3.3 V and 5 V, and communicates over I2C. It cooperates, in particular, with Arduino boards. Characters are displayed in blue.
|
The manufacturer provides auser manualandlibrary to support the screen. |
Connection

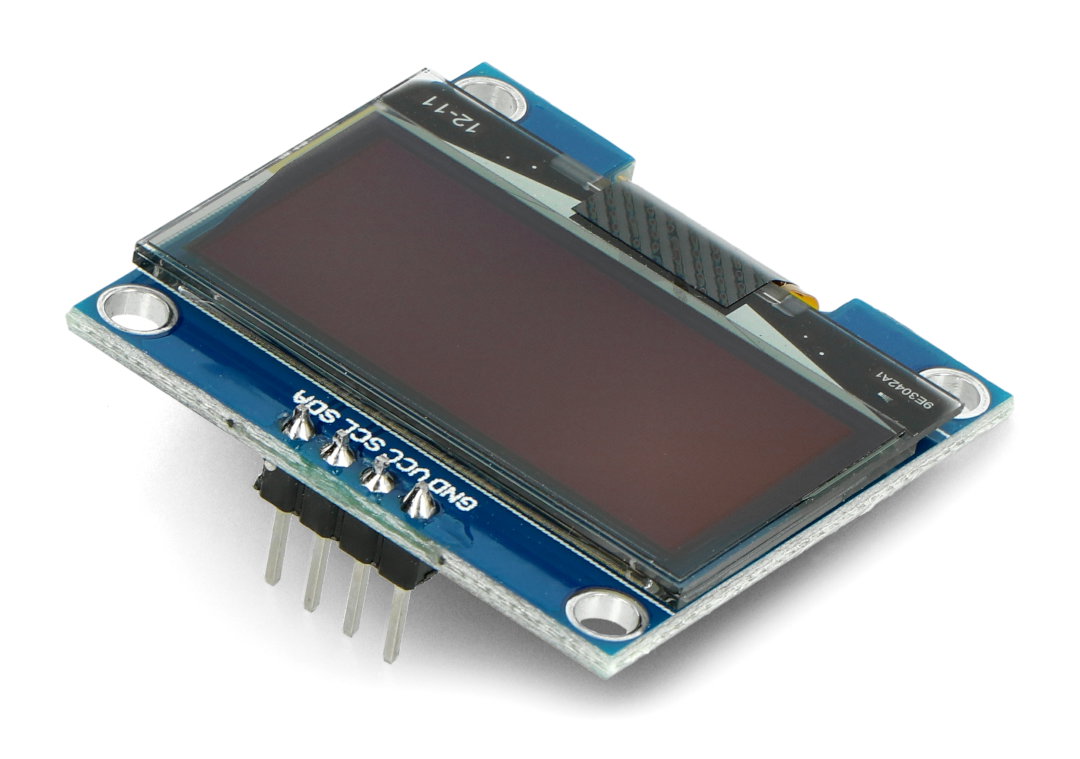

The module includes holes for soldering goldpinc connectors - raster 2.54 mm, communicates via the I2C interface. Description of the specific outputs is given in the table.
| Pin | Symbol | Description |
|---|---|---|
| 1 | GND | The ground of the system. |
| 2 | VCC | Supply voltage from 3.3 V to 5.0 V. |
| 3 | SCL | Clock line of I2C. |
| 4 | SDA | Data line of I2C. |

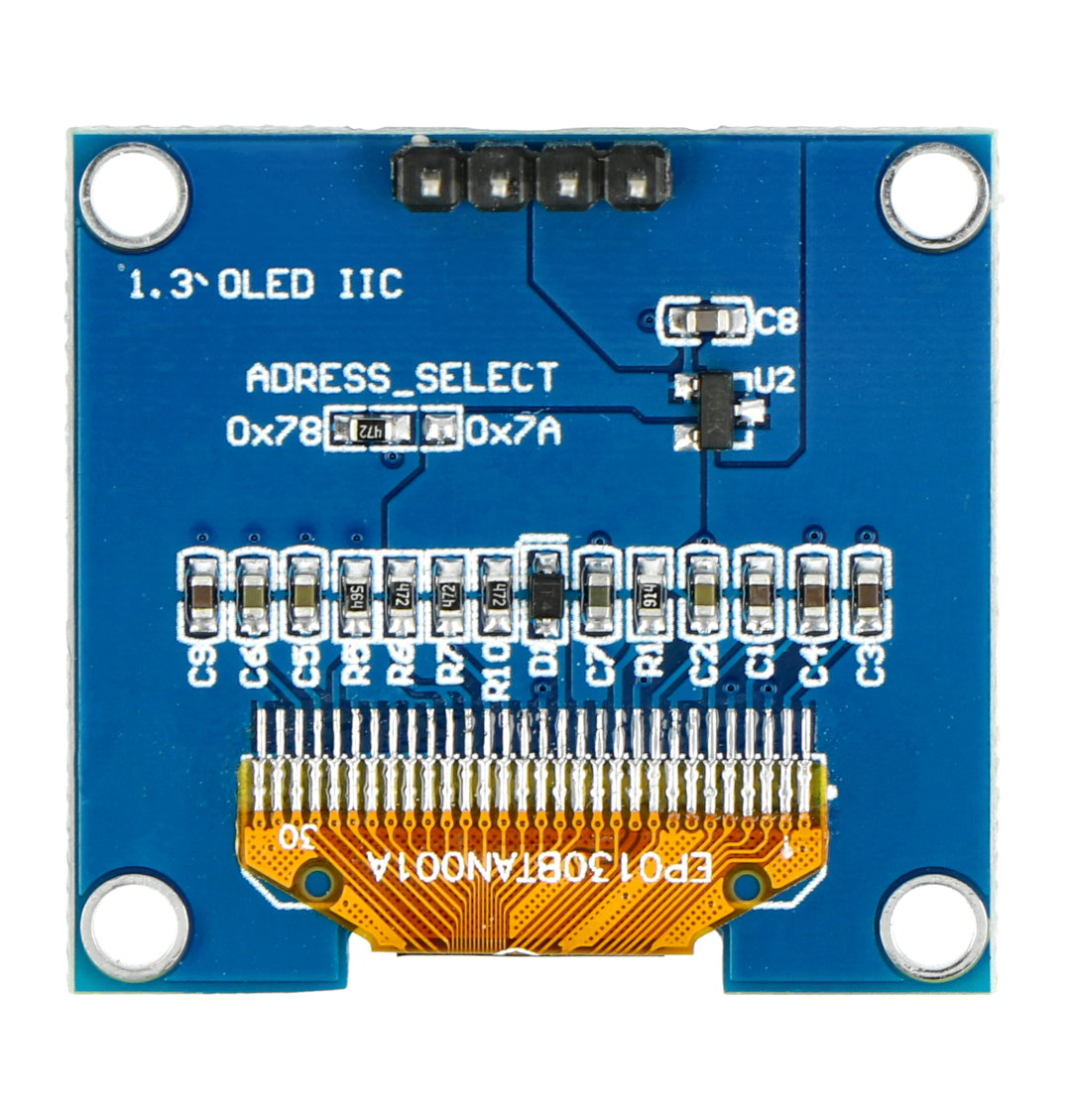

Jumper for address selection is in the center.
|
The product is compatible with Arduino |
Specification
- Working voltage: from 3.3 V to 5.0 V
- Driver: SH1106 (documentation)
- Communication: I2C
- I2C address: 0x78, 0x7A
- Display type: OLED
- Diagonal: 1,3"
- Resolution: 128 x 64 px
- Colors: blue, blue characters
- Backlight: blue
- The viewing angle of above 160 °
- Operating temperature: -20 °C to 70 °C
- Soldered goldpin connectors - 2.54 mm raster
- Dimensions: 35 x 33 mm
