Product description: OLED display - 0,96'' 128x64px - WisBlock IO extension - Rak Wireless RAK1921

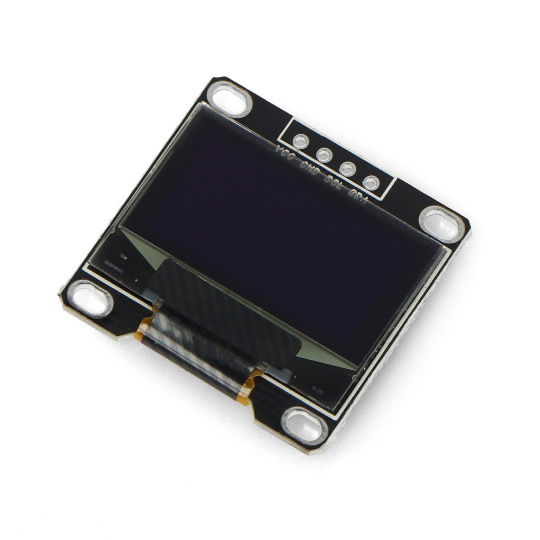

OLEDdisplayin the form of WisBlock IO extension. The diagonal of the display is0.96'' and the resolution is128 x 64 px. The module has been equipped withSSD1306 ICdriver. It displays the image in black and white.RAK1921can be used to display both text and graphics. The extension needs connection toWisBlock Base BoardandWisBlock Coredevelopment modules to work properly.

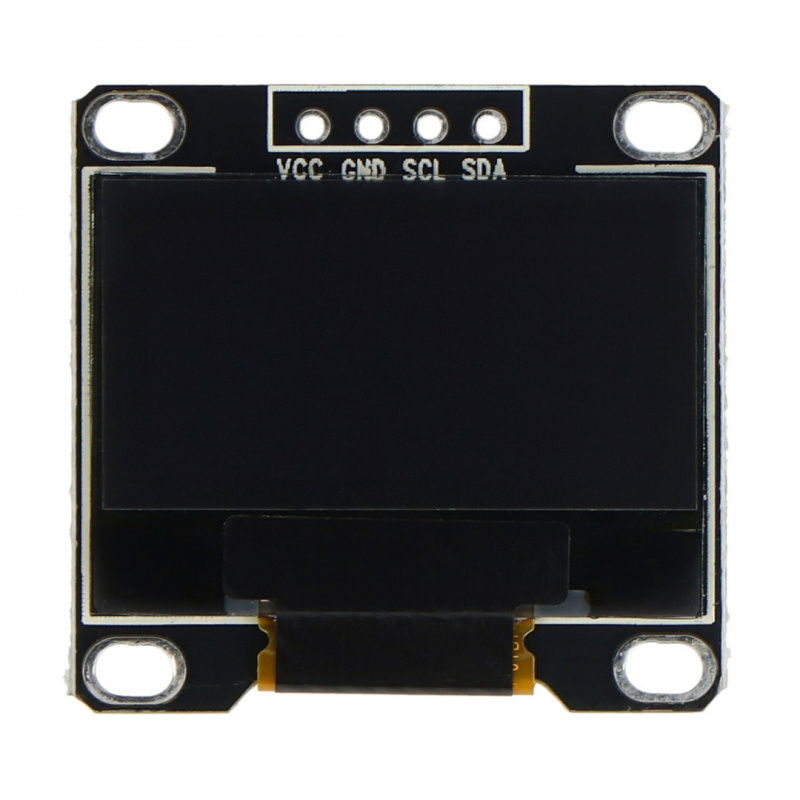

There is auser guideon the manufacturer's website, which contains a detaileddescription of eachpin and pinout.
OLED display from Rak Wireless.

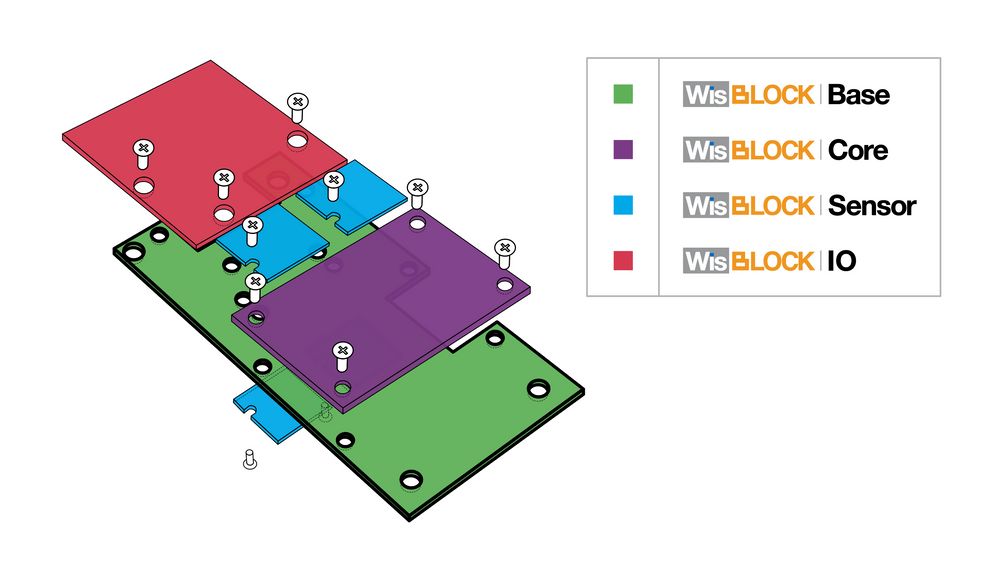

WisBlock System Composition.WisBlock series
WisBlockseries modules produced by RakWireless. They allow to makeextended IoT projects, which can be used in advanced scenarios and in basic projects. WisBlock system includes: WisBlockBase Board, WisBlockCoredeveloper module, WisBlockSensorsand WisBlockIO expansionmodules. They are used not only for rapid implementation of engineering prototypes, but are also designed to create mass applications, ready for industrial implementation.

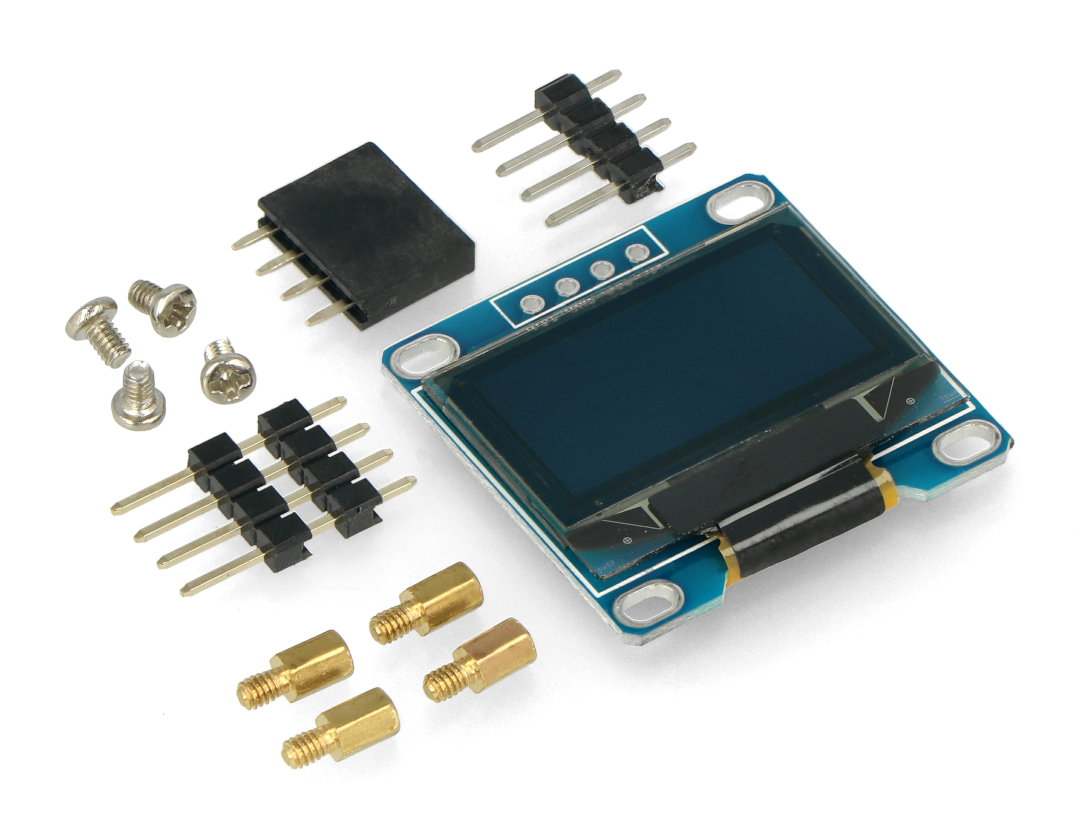

Technical specification of the module
- Type: display
- Compatible withWisBlockseries
- Display type: OLED
- Display diagonal size: 0,96''
- Resolution: 128 x 64 px
- Displayed colors: bright white color on black background
- Outline: slim, thin
- Wide viewing angle
- Low power consumption
- Communication interface: I2C bus
- Controller IC: SSD1306
- Operating temperature range: -30°C to 70°C
- Module dimensions: 27.8 x 27.3 mm
See alsoWisblock Sensorseries andWisBlock IOextensions.

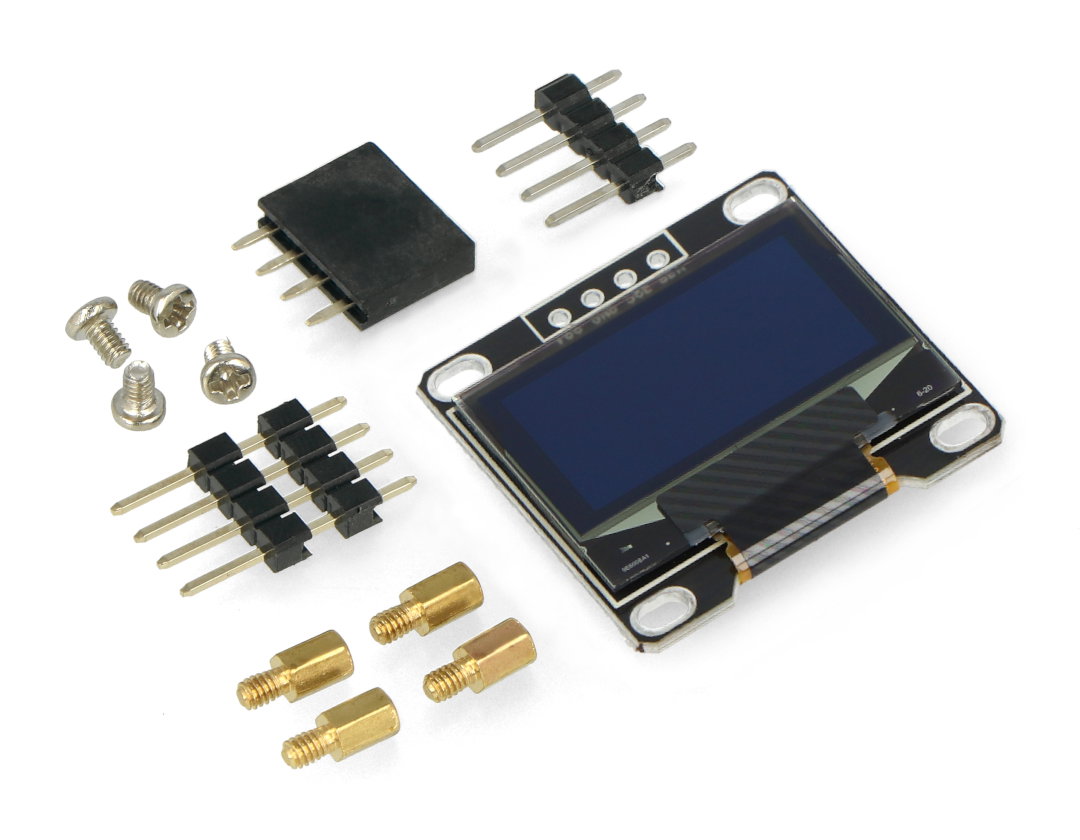

The kit includes the necessary mounting elements to connect the display to the base plate.
