Product description: OLED monochrome graphic display 0.91" 128 x 32 px I2C with chip - DFRobot DFR0647
MonochromeOLED 0.91"display, usesI2Cinterface for communication,operates on the basis ofSSD1306drive system. It has128 x 32 px white pixels and OLED technology provides high display contrast and low power consumption. Compatible withArduino UNO, Leonardo, ESP32/ESP8266, FireBeetle-M0 controllers. Small size, easy connection and low power consumption allows to use in many display applications such as thermometer, weather display or Mini Game console.
|
Arduinocompatible product The manufacturer prepared auser guideandlibraryfor Arduino users. |
Module outputs
The module has 4 leads, to which the goldpin plugs included in the kit should be soldered. Output 1 (D) corresponds to the data line of the I2C system (SDA), output 2 (C) corresponds to the clock line of the I2C system (SCL), output 3 (-) is ground (GND) and output 4 (+) is power supply (VCC).
|
Attention! When the screen is not in use, switch it off. Excessively long display may reduce the brightness of individual pixels. |
Monochrome OLED display specification 0.91" 128 x 32 px I2C with chip
- Operating voltage: 3.3 V to 5 V
- Colour of characters: white
- Pixel count: 128 x 32
- Interface: I2C
- Drive system: SSD1306
- Brightness: 180 (type.) cd/m²
- Full-screen lighting power: approx.25 mA (3.3 V) 25 mA (5 V)
- Power consumption with screen off: approx.2 mA (3.3 V) 2 mA (5 V)
- Operating temperature: -30°C to 70°C
- Display area: 22.38 x 5.58 mm
- Mounting hole diameter: 2 mm
- Dimensions: 41 x 12 mm
- Weight: 2,2 g
Set contents
- Monochrome OLED display 0.91" 128 x 32 I2C with chip
- 2.54 - 4P mounting pin

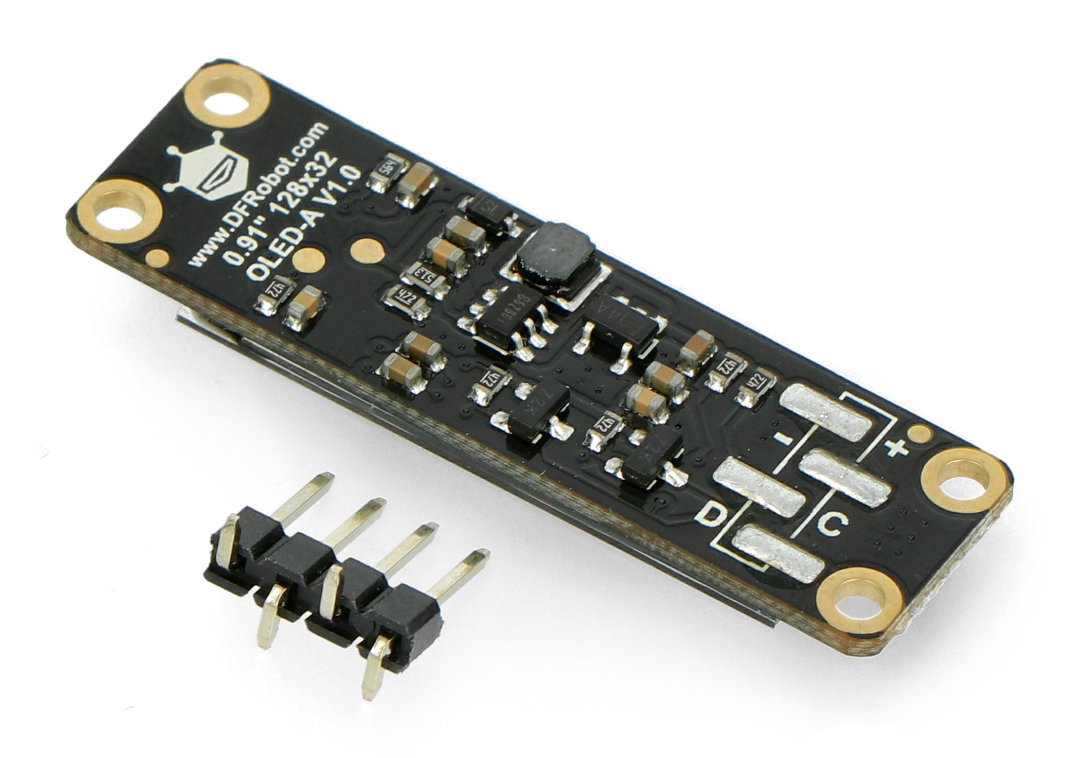

Monochrome OLED display with goldpin connector.
