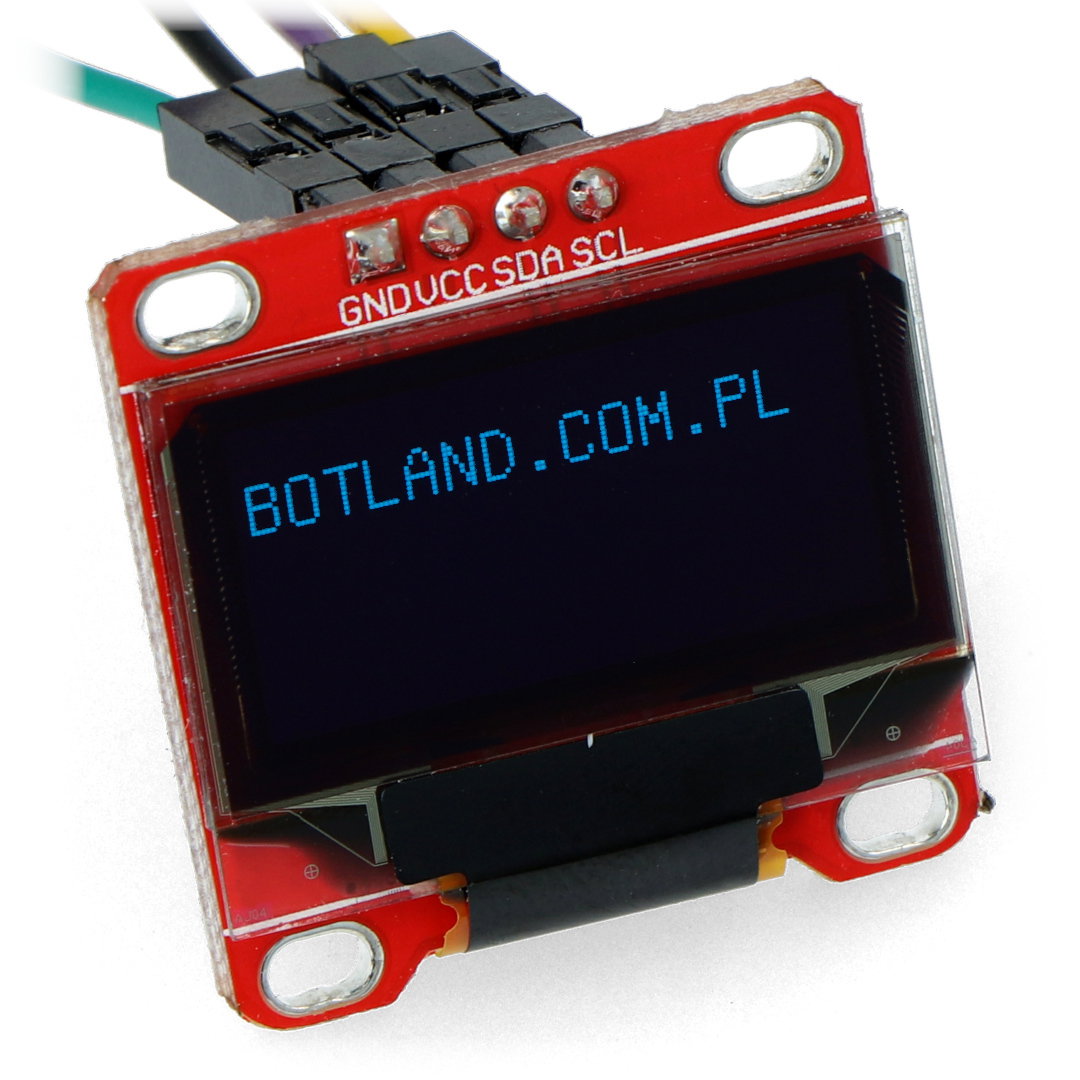

Description of product: OLED display, blue graphic, 0.96 '' 128x64px I2C - red
OLED blue display with a diagonal of0.96"and a resolution of128 x 64 px. The screen is based onSH1106driver, works with voltages of3.3 Vand5 V, and communicates overI2C. Cooperates, in particular, with the Arduinoboards.
|
The product is compatible with Arduino |

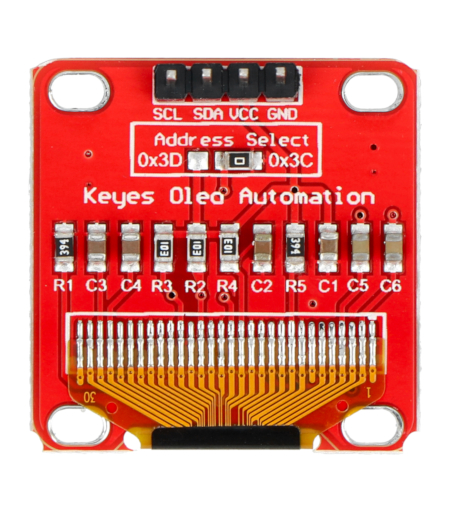

Connect the blue graphical OLED 0,96"

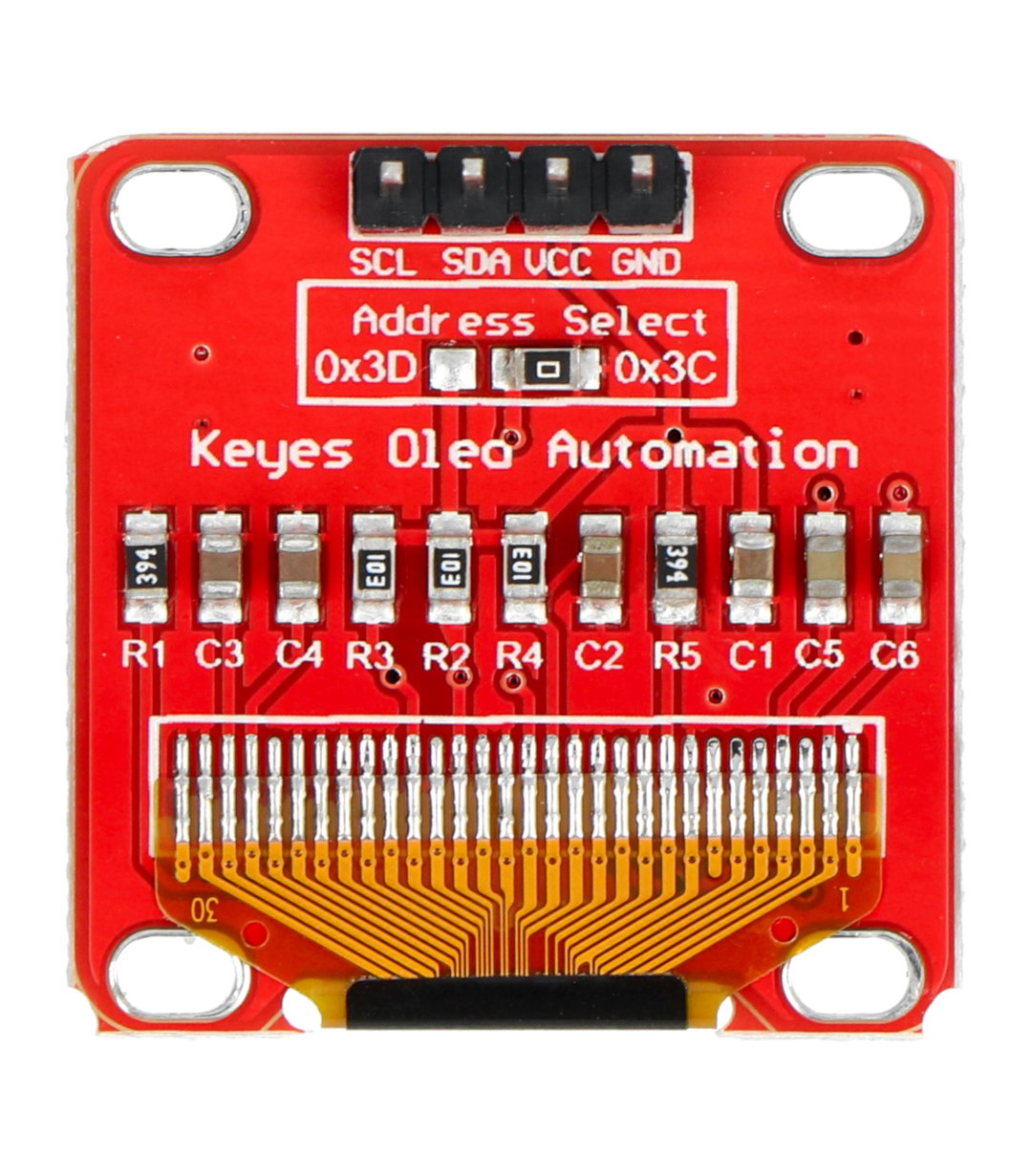

The module has straight goldpin connectors - 2.54 mm raster, communicates through an I2C interface. Description of the specific outputs is shown in the table.
| Pin | Symbol | Description |
|---|---|---|
| 1 | VCC | Supply voltage from 3.3 V to 5.0 V. |
| 2 | GND | The ground of the system. |
| 3 | SCL | I2C clock line. |
| 4 | SDA | I2C data line. |
Technical characteristics of the OLED display
- Working voltage: from 3.3 V to 5.0 V
- Driver: SH1106 (documentation)
- Communication: I2C
- Display type: OLED
- Diagonal: 0,96"
- Resolution: 128 x 64 px
- Color: blue
- The viewing angle of above 160 °
- Operating temperature: -20 °C to 70 °C
- Goldpin connectors - raster of 2.64 mm
- Dimensions: 28 x 27 mm
