Bigtreetech TMC2226 v1.0 Stepper Motor Driver

Index: BTT-18757 EAN: 5904422358839
Two-phase stepper motor driver. Maximum current consumption per coil is 2.8 A. RMS effective value is 2 A. It ensures a smooth operation with a resolution of 256 steps. The product enables configuration of STEP/DIR parameter on 1/8, 1/16, 1/32 or 1/64 steps. The TMC2226 v1.0 provides support for MicroPlyer, StealthChop2, SpreadCycle and StallGuard 4. Compatible with the Coolstep standard, it saves up to 75% power. The product is compatible with the Bigtreetech v1.4 Turbo 32-bit motherboard used in Biqu B1 printers. A heat sink is included with the controller.
Bigtreetech TMC2226 v1.0 Stepper Motor Driver
€6.90
€5.61 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Bigtreetech

Product description: Bigtreetech stepper motor driver TMC2226 v1.0

Two phase stepper motor driver. Themaximum current consumption per coil is 2.8 A. RMS rms value is 2 A. It ensures smooth operation with a resolution of 256 steps. The product enables configuration of STEP/DIR parameter on 1/8, 1/16, 1/32 or 1/64 steps. The TMC2226 v1.0 provides support for MicroPlyer, StealthChop2, SpreadCycle and StallGuard 4. Compatible withthe Coolstep standard, it saves up to 75% power. The product is compatible with theBigtreetech v1.4 Turbo 32-bitmotherboard used inBiqu B1printers. A heat sink is included with the controller.


Presentation of silent driver BTT TMC2226 v1.0.

Porównanie temperatur pracy sterowników TMC2226 oraz TMC2209

Comparison of operating temperature of TMC2226 and TMC2209controllers.

Advantages of TMC2226 v1.0 controller

  • Ensures precise operation ofthe stepper motor
  • Prevents motor vibration, thus reducing noise generated during operation
  • Included high capacity heatsink effectively reduces the temperature generated during operation
  • TMC2226 v1.0 module provides Step/Dir and UART mode support

TMC2226 v1.0 Controller Specification

  • Operating voltage: 4.75 V to 29 V
  • Maximum current consumption per coil: 2,8 A
  • RMS rms: 2 A
  • Step/dir operation variants: 1/8, 1/16, 1/32 or 1/64 step
  • Protection against overheating in the form of attached heat sink
  • Dimensions: 20.32 x 15.24 mm

Set contains

  • TMC2226 v1.0 controller
  • Dedicated heatsink
  • Connection cable

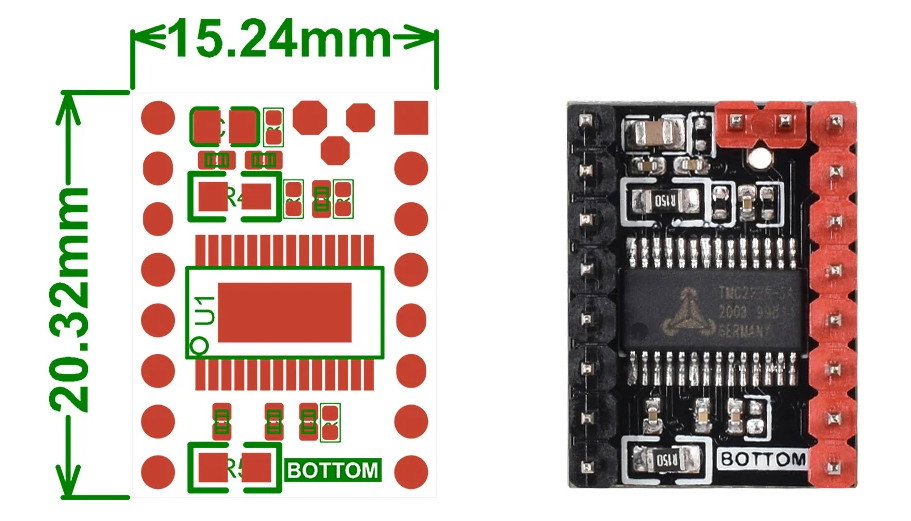

Schemat i wymiary sterownika TMC2226 v1.0

Schematics and dimensions of the TMC2226 v1.0controller.

Package width 5.6 cm
Package height 3 cm
Package depth 4.5 cm
Package weight 0.013 kg
