Product description: Bigtreetech TMC2209 v1.3 stepper motor driver
Stepper motor driver whose supply voltage ranges from 4.75 V to 28 V DC. Maximum current consumption per coil is 2 A (RMS). The driver can operate in two modes: step / dir or UART. The Flexible microPlyer interpolation unit can perform up to 256 microsteps. Bigtreetech TMC2209 V1.3 uses Stallguard locked motor test, allowing to verify malfunctions of this component. Dynamic Coolstep control provides up to 75% power savings. The set includes a controller and a heat sink.

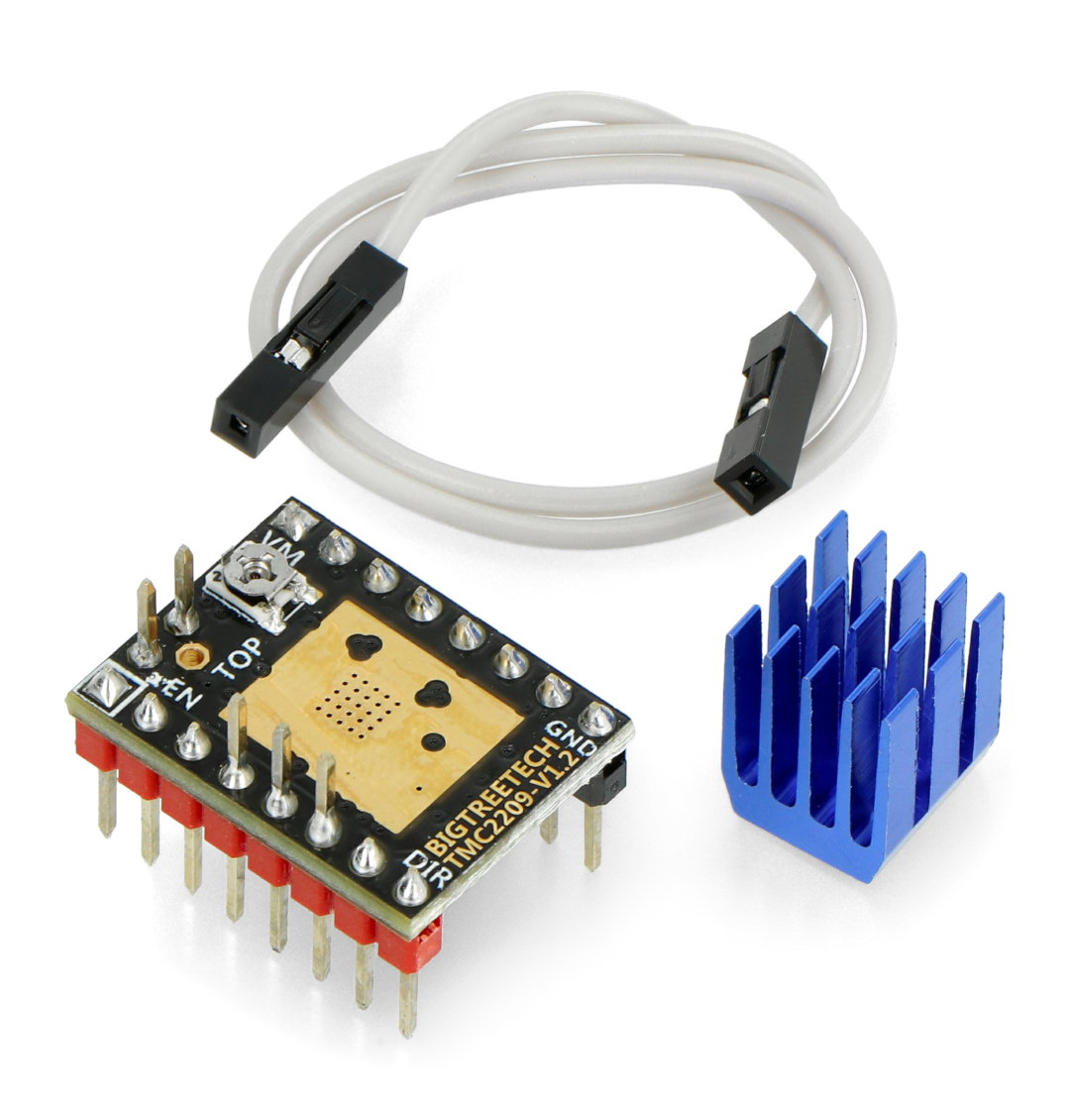

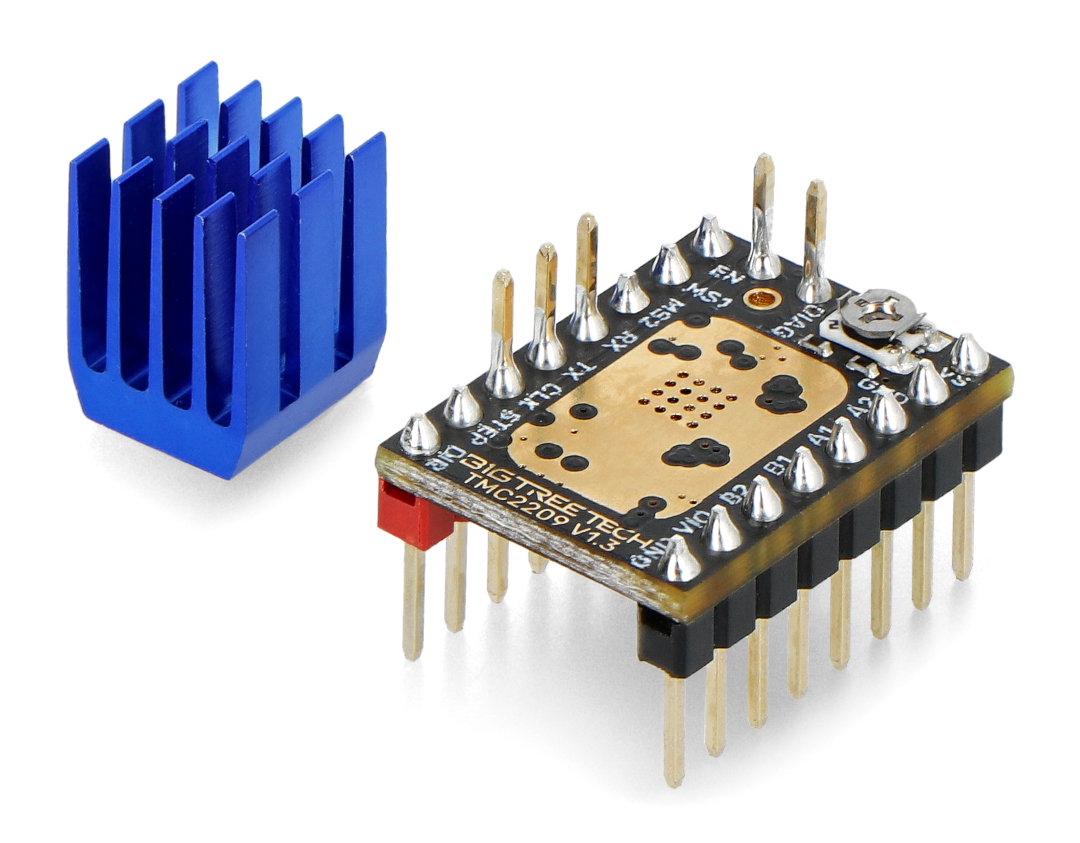

Bigtreetech TMC2209 v1.3 stepper motor driver.
Features
- SpreadCycle support allows to avoid "losing" steps and Jittering phenomenon which occurs during printer's work. Jittering is the appearance of unevenness on the finished model.

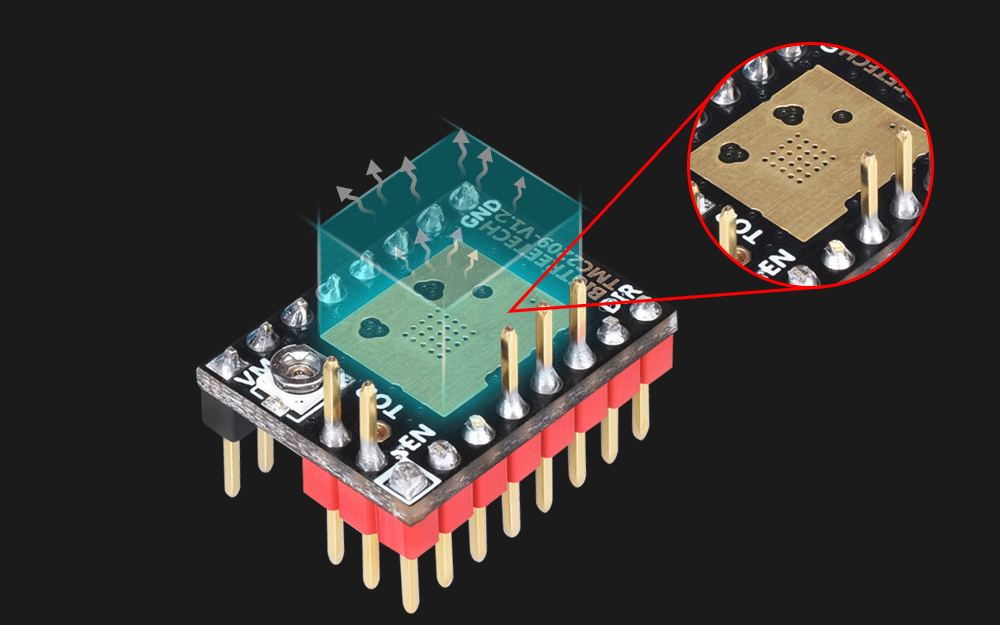

- Increased surface area of the heat-dissipation area on the controller, prevents overheating
- StealthChop provides quiet operation (approx. 10 dB)
- CoolStep support with power control to save energy (up to 75% less power required)
- Compatible with StallGuard sensorless motor load detection
Controller specifications
- Supply voltage: 4.75 V to 28 VDC
- Current consumption per coil (RMS value): 2 A
- Maximum number of microsteps: 256
- Overall dimensions: 20.32 x 15.24 mm
Set contents
- Bigtreetech TMC2209 v1.2 stepper motor driver
- Additional heat sink
