LCD IPS 1,3'' 240x240px - SPI - 65K RGB - for Raspberry Pi Pico - Waveshare 19650

Index: WSR-19541 EAN: 5904422371883
LCD display manufactured by Waveshare, dedicated to the popular Raspberry Pi Pico module. It is equipped with a high quality ST7789 driver, uses SPI buses for communication with Raspberry Pi Pico. The images are presented in 65k RGB colors, which gives a clear and realistic color effect. The LCD screen resolution from Waveshare is 240 x 240 px and its diagonal is 1.3''. The size of a single pixel is 0.0975 × 0.0975 mm.
LCD IPS 1,3'' 240x240px - SPI - 65K RGB - for Raspberry Pi Pico - Waveshare 19650
€7.90
€6.42 tax excl.
Delivery 30 pcs scheduled for 2024-03-22
Waiting for delivery
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: IPS LCD 1,3'' 240 x 240 px - SPI - 65K RGB - for Raspberry Pi Pico - Waveshare 19650

LCD displaymanufactured by Waveshare, dedicated to the popularRaspberry Pi Pico minicomputer. It is equipped with a high qualityST7789driver, usesSPIbuses for communication with Raspberry Pi Pico. The images are presented in 65k RGB colors, which gives a clear and realistic color effect.The screenresolution is240 x 240 pxand its diagonal is1.3''. The size of a single pixel is 0.0975 × 0.0975 mm.

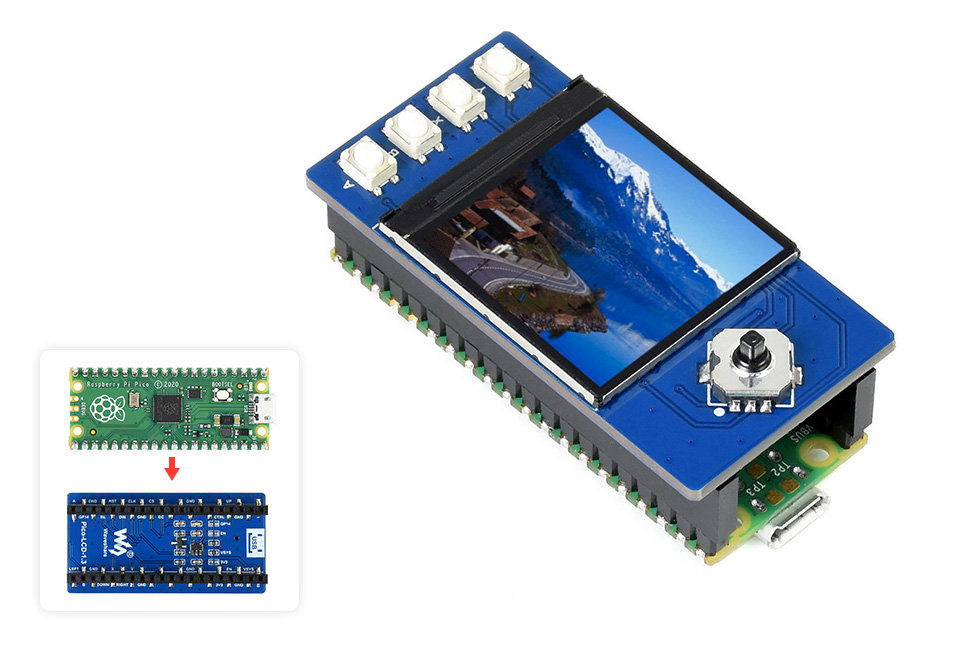

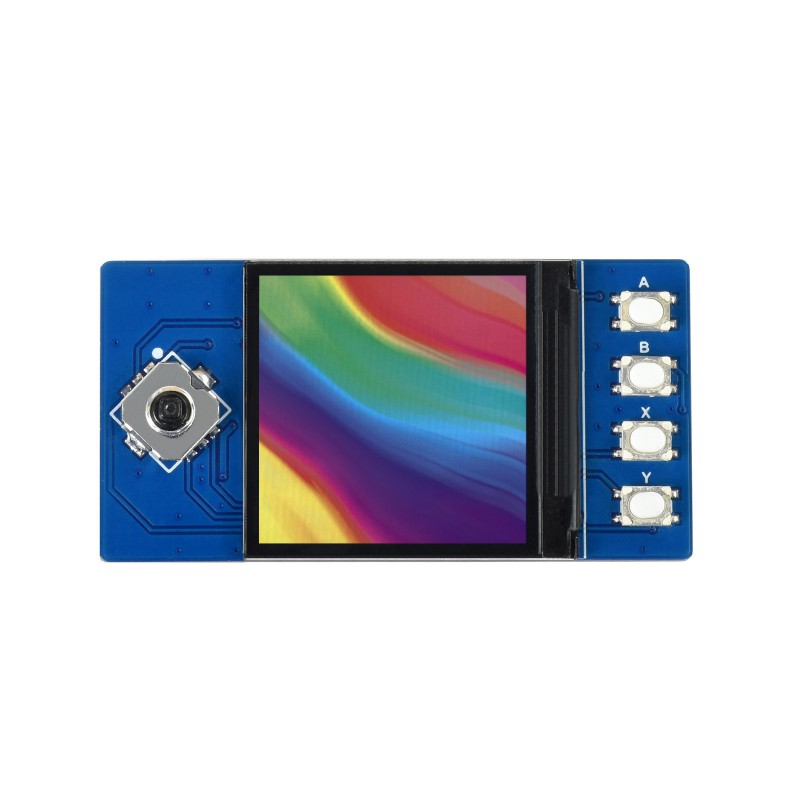

The LCD display for Raspberry Pi Pico is equipped with four usable buttons and one joystick.

Product compatible with RaspberryPi Pico

The manufacturer provides aWiki page for the product, which includes information about the module's pinouts and a detailed user guide.

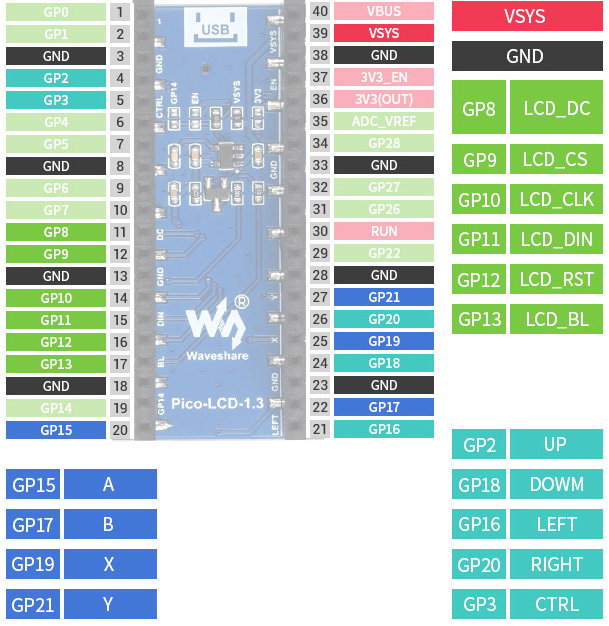

The display pinouts are compatible with the connector on the Raspberry Pi Pico.

Leads

Thedisplay has pinouts in the form offemale connectors for easy connection to the Raspberry Pi Pico. Among the pinouts are:

  • VSYS- power supply pin from 1.8 V to 5.5 V
  • GND- chip ground
  • LCD_DC- data / command select pin (high state - data; low state - commands)
  • LCD_CS- Chip Select (activated by low state)
  • LCD_CLK- SPI interface clock input pin
  • LCD_DIN- SPI interface data line input pin
  • LCD_RST- RESET pin (low state activated)
  • LCD_BL- backlight pin
  • Joystick control pins:
    • UP- up movement
    • DOWM- move down
    • LEFT- move left
    • RIGHT- right movement
    • CTRL- middle button
  • A- utility button A
  • B- utility button B
  • C- operation key C
  • D- user button D

Technical specification of the display

  • Dedicated toRaspberry Pi in Pico version
  • Type: IPS LCD display
  • Communication interface: SPI 4-pin
  • Display diagonal: 1,3''
  • Display resolution: 240 x 240 px
  • Pixel size: 0.0975 × 0.0975 mm
  • Display colors: 65K RGB
  • Supply voltage: 2.6 V to 5.5 V
  • Accessory equipment:
    • utility buttons A, B, C and D - 4 pcs.
    • joystick - 1 pcs.
  • Programming language: C / C++ / MicroPython
  • Embedded controller: ST7789
  • Display dimensions: 23.4 x 23.4 mm
  • Module dimensions: 52 x 26.5 mm

The display can be programmed using C / C++ or MicroPython. Only the display is included in the sale - Raspberry Pi Pico needs to be purchased separately.

Screen - type LCD IPS
Screen - diagonal 1.3''
Screen - interface SPI
Screen - touch no
Screen - resolution 240x240px
Package width 7 cm
Package height 9.5 cm
Package depth 2 cm
Package weight 0.013 kg
