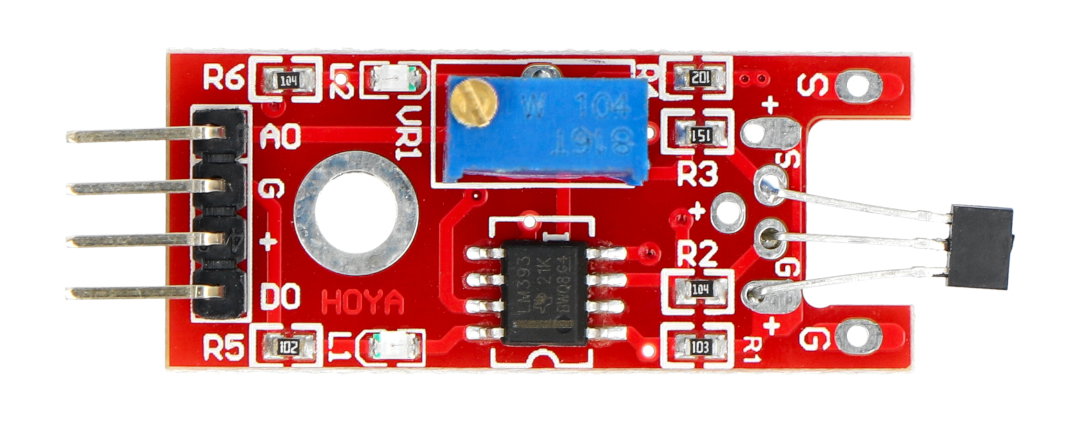

Description of product: Iduino Module with Hall sensor
The module with the Hall sensor, the detection range of the magnetic field is regulated with the potentiometer. It has a built-in digital and analog connector. Powered with the voltage of 5 V.
Connecting the Hall sensor
The sensor works withany microcontrollerwith digital or analog inputs, includingArduino. To read data, it is sufficient to connect the power source and output pins to any input of the microcontroller, and read its status.
Connection example with Iduino Uno.
| PIN | Description |
|---|---|
| A0 | The output of the analog signal. |
| G | The ground of the system. |
| + | The supply voltage of 5 V. |
| D0 | The output of the digital signal. |
Specification of Hall sensor
- Supply voltage: 5 V
- Output: digital / analog
- Pins: 4-pin
- Dimensions: 25 x 12 mm
- Weight: 4 g
