Bus Pirate v3.6a - SparkFun TOL-12942

Index: SPF-01707 EAN: 5904422366544

The device allows you to connect the computer with electronic modules, using the popular data transfer protocols, e.g. SPI, I2C, UART. It improves the process of communication with the new system, makes it easy to detect transmission errors. It has a built-in logic state analyzer and an AVR programmer.

Bus Pirate v3.6a - SparkFun TOL-12942
€39.50
€32.11 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: SparkFun

Description

The device allows you to connect the computer with electronic modules, using the popular data transfer protocols, e.g. SPI, I2C, UART. The Bus Pirate simplifies the process of communication with the new system, makes it easy to detect errors while transmitting data, to check the correct operation of the bus, and to transmit commands. It is especially useful when operating the sensors to verify the flow of data. In addition to the abovelistedfunctions, the system also works as an analyzer of logical states (up to 1 MHz), a frequencysignal generator and a programmer for AVR microcontrollers.

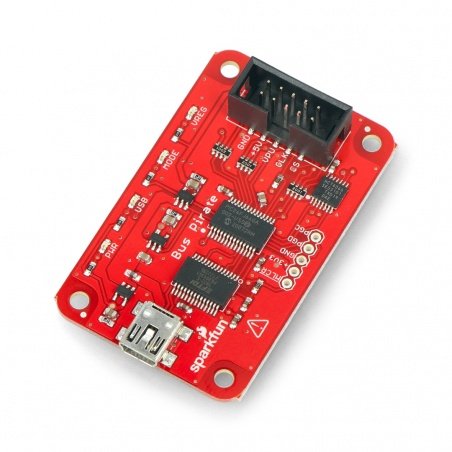

Bus Pirate v3.6a - SparkFun

Moduleis installed on the PC as a virtual COM port, so you can control it using any terminal. Built-in bootlader allows you to update the software (firmware). The main elements on the board are the control processor PIC24FJ64 and the converter USB-UART FT232RL. The mini-USB port allows you to connect the system to the computer using a cable. Electronic modules connect via theIDC connectoror viawires. A detailed instructionanda forum of the product help with the control of the Bus Pirate.

Specification

  • Supported communication protocols:
    • 1-Wire
    • I2C
    • SPI
    • JTAG
    • UART
    • USART
    • MIDI
    • PC keyboard
    • HD44780 LCD
    • 2 - and 3-wire
  • Inputs tolerate voltage range: 0 - 5.5 V
  • The range of measured analog voltage: 0 - 6 V
  • The range of measured frequency:1 Hz - 40 MHz
  • PWM generator:1 kHz - 4 MHz
  • Built-in pull-up resistors
  • Built-in source voltage of 5 V and 3.3 V
  • Macros forcommonoperations
  • The analyzer of the data stream of the I2C bus and SPI bus traffic sniffers)
  • Built-in downloader that allows you to update the software in a simple way
  • Converter USB to UART (serial)
  • Analyzer of logical states10 Hz - 1 MHz
  • The ability to work in programmer mode AVR STK v2
  • Connector with miniUSBcable not included
  • Board sizes: 53 x 30 mm





Package width 7.6 cm
Package height 9 cm
Package depth 1.1 cm
Package weight 0.011 kg
