Description

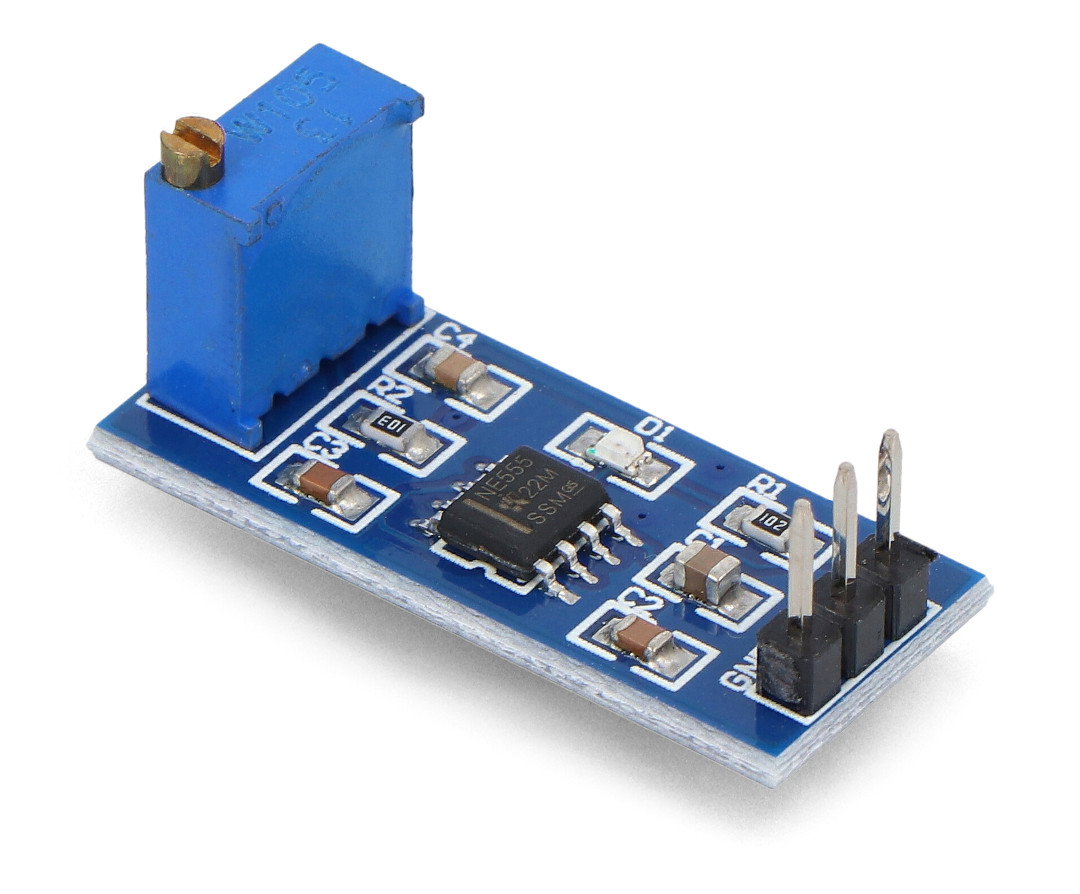

The module works as a timer, pulse generator or oscillator application. It can be used as a time delay. Works with voltages from 5 V to 12 V. Board size: 30 x 13 mm.
Specification
- Modulee NE555
- Output: analog signal
- Built-in potentiometer to adjust the output frequency
- Supply voltage: 5 V to 12 V
- Work cycle:
- Minimum: 50% of a cycle at 3.7 Hz
- Maximum: 98 %, cycle - 1.3 kHz
- Board size: 30 x 13 mm
Inputs
The module has three outputs
| PIN | Description |
| 1. VCC | Power - the voltage from 5 V to 12 V. |
| 2. OUT | Output pin |
| 3. GND | The ground of the system. |
|
The product is compatible with Arduino Online you can findthe description of the modulealong with a sample program modules forArduino. |
