Description

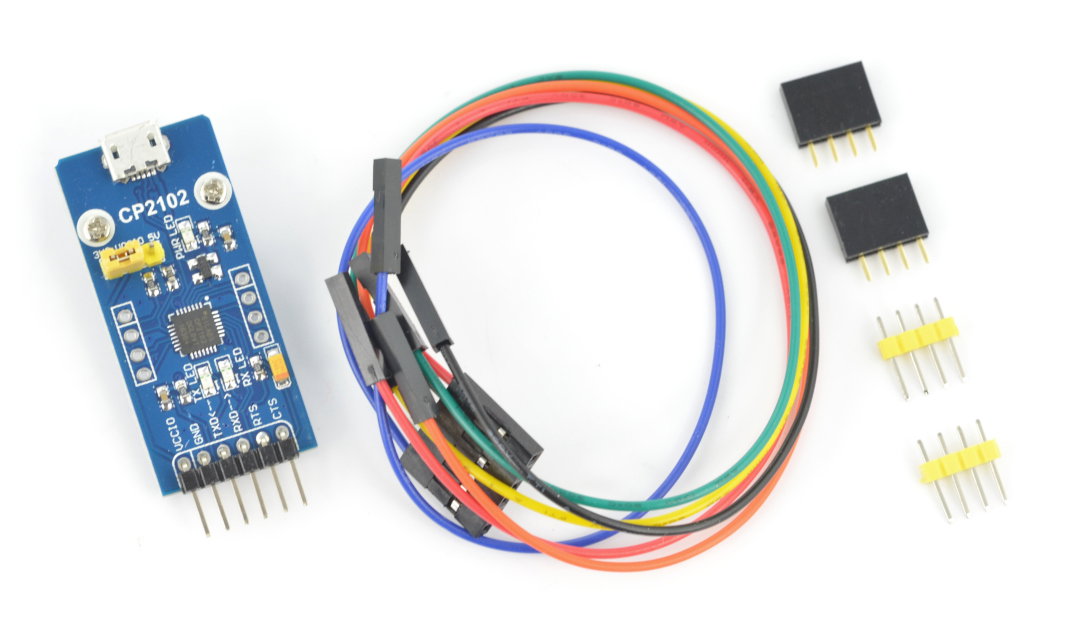

The converter enables the connection between two popular interfaces, serial ports, USB and UART. The module is based on a CP2102. The system is running on Windows 7 and Windows 8/8.1, without the need to install drivers. The module comes with all necessary wires and connectors goldpin.
The module can be used to exchange data between the computer and the microcontroller system or for programming boards with remote serial interface, e.g.ArduinoorSTM32Discovery. The operating system is visible as a virtual COM port. It has 3 LEDs indicating the power state, sending and receiving data.
The device works with voltages of 3.3 V and 5 V. The voltage selection is done using jumpers. Circuit board has connectors raster 2.54 mm suitable forbreadboardsor for connection using wires.
Connection
Description of the inputs given in the table.

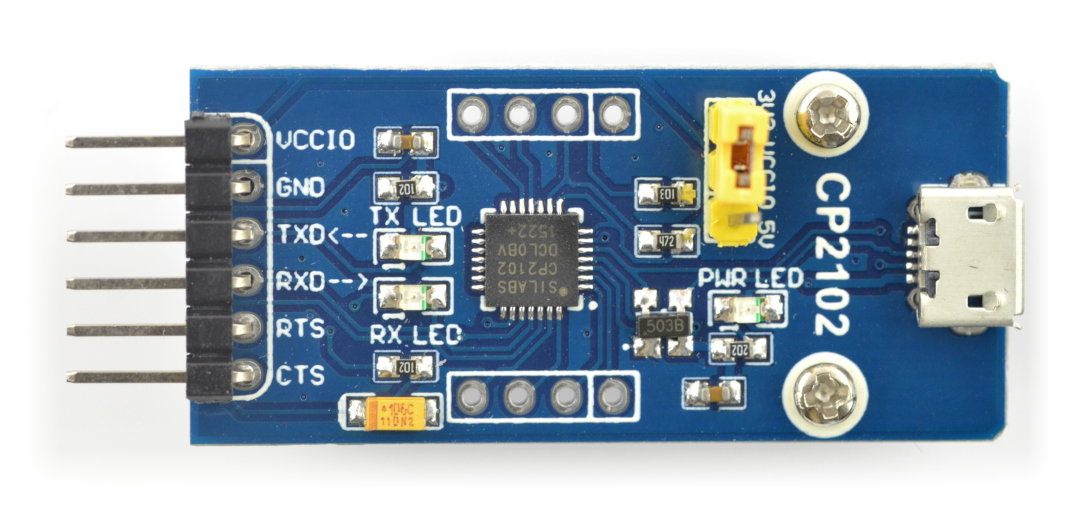

| Pin | Description |
|---|---|
| VCCIO | Power 3.3 V or 5 V selectable with jumper |
| GND | The ground of the system |
| TXD | Pin of UART transmitter |
| RXD | Pin of UARTreceiver UART |
| CTS | Signal Clear to Send of UART interface |
| RTS | Signal Request to Send of UART interface |
