Level Booster Breakout - 3V - 5V voltage level converter - STEMMA QT / Qwiic - Adafruit 5649

Index: ADA-22546
Level Booster Breakout is a board produced by Adafruit, it has the form of a voltage level converter that allows you to obtain an output voltage of 5 V from an input voltage of 3 V to 5 V. It has a built-in 5 V voltage stabilizer with a capacity of up to 250 mA . The Level Booster Breakout board has leads in the form of solder pads, as well as two STEMMA QT / Qwiic connectors, thanks to which it can be used with peripheral devices equipped with this connector standard - without the need for soldering.
Level Booster Breakout - 3V - 5V voltage level converter - STEMMA QT / Qwiic - Adafruit 5649
€4.00
€3.25 tax excl.
Delivery 20 pcs scheduled for 2024-07-22
Waiting for delivery
PayPal payment
Manufacturer: Adafruit

Product description: Level Booster Breakout - voltage level converter 3 V - 5 V - STEMMA QT / Qwiic - Adafruit 5649

Level Booster Breakout is a board manufactured by Adafruit , it has the form of a voltage level converter that allows you to obtain an output voltage of 5 V from an input voltage of 3 V to 5 V. It has a built-in 5 V voltage stabilizer with a capacity of up to 250 mA . The Level Booster Breakout board has leads in the form of solder pads, as well as two STEMMA QT / Qwiic connectors, thanks to which it can be used with peripheral devices equipped with this connector standard - without the need for soldering.

Also check the manufacturer's user guide !

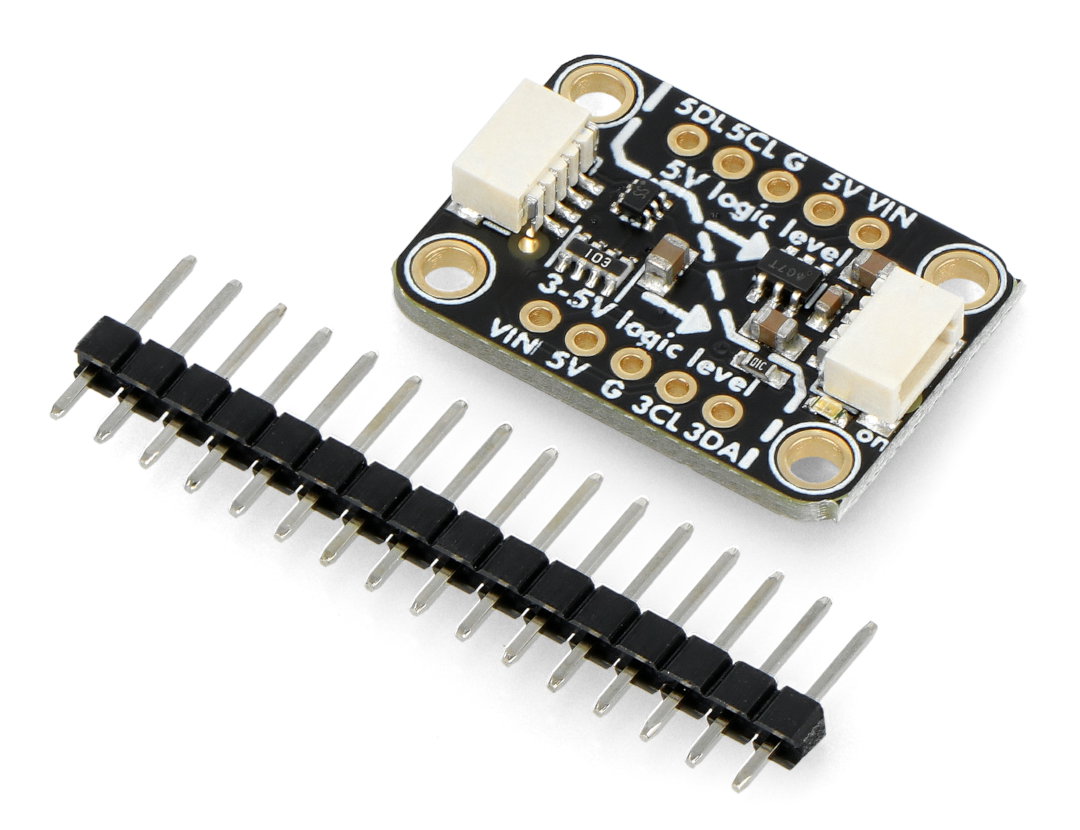

Components included in the set.

Components included in the set.

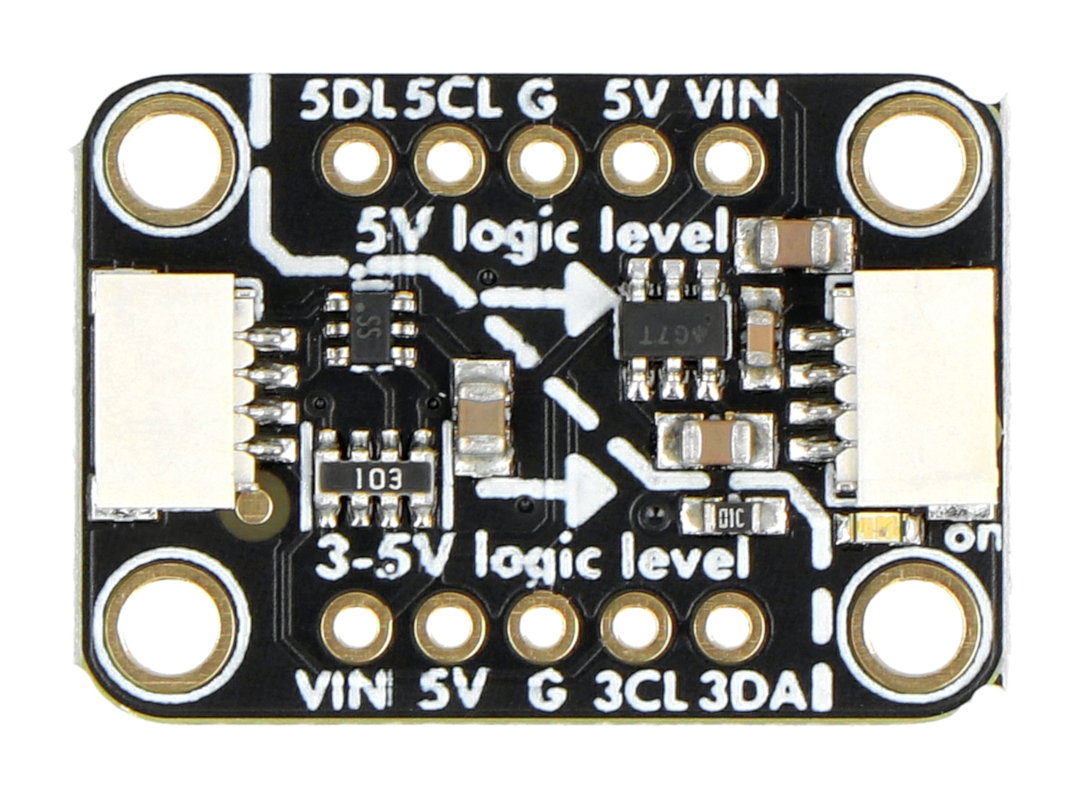

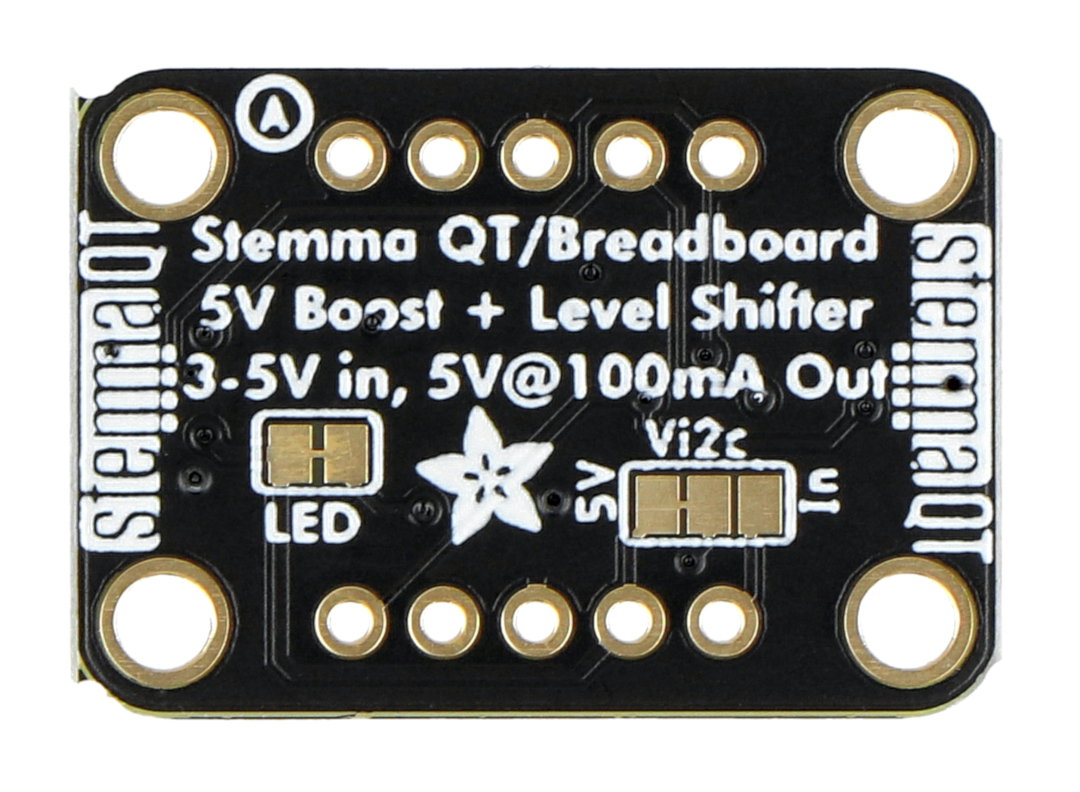

All pins of the module have been clearly described.

All pins of the module have been clearly described.

Pinout description and connection diagram

The module has outputs in the form of soldering pads, to which the goldpin connectors included in the set should be soldered. Alternatively, STEMMA QT / Qwiic connectors can also be used, which do not require soldering. The converter should be connected with the selected modules in accordance with the following description of the pins:

  • VIN - input voltage pin
  • 5V - 5V output pin (100 mA continuous and 200 mA peak)
  • G - common mass of the system
  • 3CL - I2C clock line of 3 V input voltage
  • 3DA - I2C data line of 3 V input voltage
  • 5CL - 5V output voltage I2C clock line
  • 5DA - I2C data line of 5 V output voltage

Module technical specification

  • Type: voltage converter
  • Built-in chip: AP3602A
  • Input voltage range: 3V to 5V
  • Output voltage: 5V
  • Voltage regulator: 5 V (100 mA continuous and 200 mA peak)
  • Status indication: built-in LED
  • Connectors: 2x STEMMA QT/Qwiic connector
  • Board dimensions: 25.6 x 17.7 x 4.6 mm
  • Weight: 1.6g

Kit contents

  • Level Booster Breakout - voltage level converter 3 V - 5 V - STEMMA QT / Qwiic - 1 piece
  • Goldpin strip - raster 2.54 mm - 1 piece

Level Booster Breakout - voltage level converter 3 V - 5 V - STEMMA QT / Qwiic - Adafruit 5649.

Package width 7.7 cm
Package height 10 cm
Package depth 1 cm
Package weight 0.004 kg
