Product description: TLV62569 - voltage converter 5.5 V / 3.3 V 1.2 A - Adafruit 4711
The converter is based on the TLV62569 chip . Enables you to get output voltage of 3.3 V. Input voltage range: 2.5 V to 5.5 V. It provides a continuous load current of up to 1.2 A in the input voltage range from 3.4 V to 5.5 V. Suitable for powering from various sources (LiPol batteries, alkaline batteries, USB) of popular modules operating with a voltage of 3.3 V. Due to the coil used, the manufacturer does not recommend exceeding the current value of 1.2 A (in the case of short peaks 2 A).

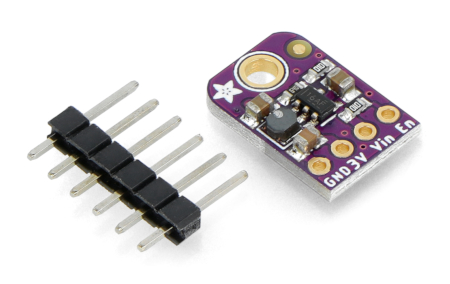

TLV62569 - voltage converter 5.5 V / 3.3 V 1.2 A.
Presentation of the module prepared by the manufacturer .

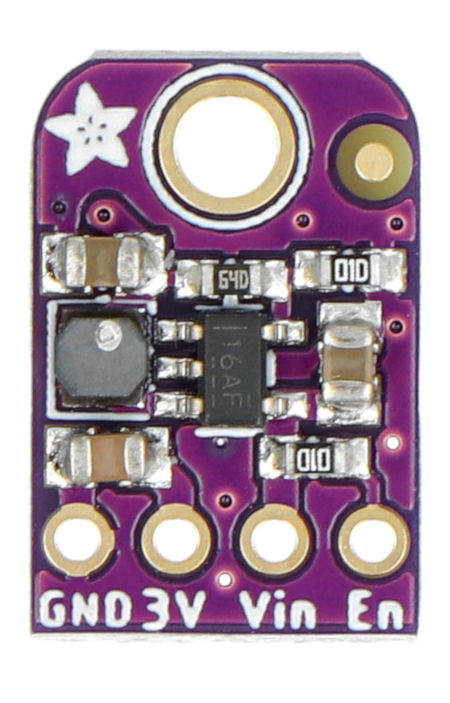

Voltage converter based on the TLV62569 chip .
Voltage converter specification
- Developer: Adafruit
- Manufacturer part number: 4711
- Input voltage range: 2.5 V to 5.5 V
- The value of the output voltage: 3.3 V
- Continuous output current: 1.2 A (in the voltage range from 3.4 V to 5.5 V)
- Quiescent current: 35 μA
- Switch-off current: less than 2 μA
- Duty Cycle: 100%
- Switching frequency: 1.5 MHz
- Soft start function
- Thermal switch
- Dimensions: 15.2 x 10 x 2.9 mm
Kit contents
- TLV62569 - voltage converter 5.5 V / 3.3 V 1.2 A - Adafruit 4711 - 1 pc.
