Encoder with button 30 pulses - M5Stack U135

Index: MSS-20920 EAN: 6972934173393
The 30 impulse encoder is equipped with a button function, it communicates via the I2C interface.
Encoder with button 30 pulses - M5Stack U135
€9.90
€8.05 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stack Core M5Atom M5Stick

Product description: Encoder with button 30 pulses - M5Stack U135

The encoder knob allows the user to create a simple user interface. The communication module uses the I2C interface , additionally, to increase the functionality of the device, it has been equipped with a button directly built into the encoder knob and two fully programmable RGB SK6812 LEDs .

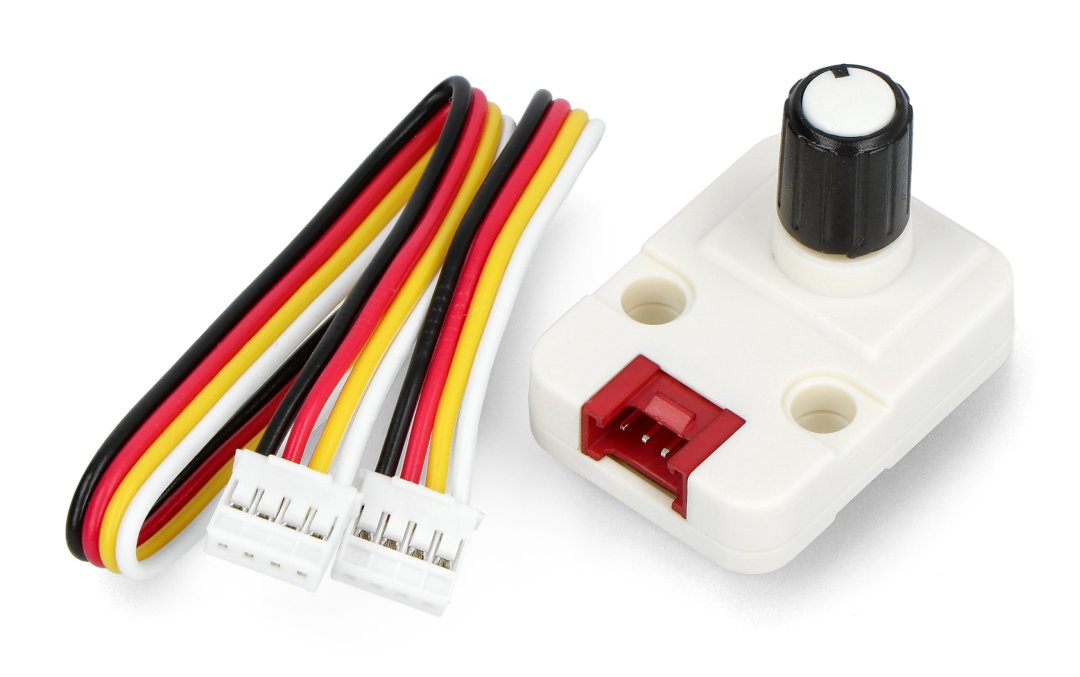

Encoder with button 30 pulses M5Stack U135

Encoder with button 30 pulses M5Stack U135.

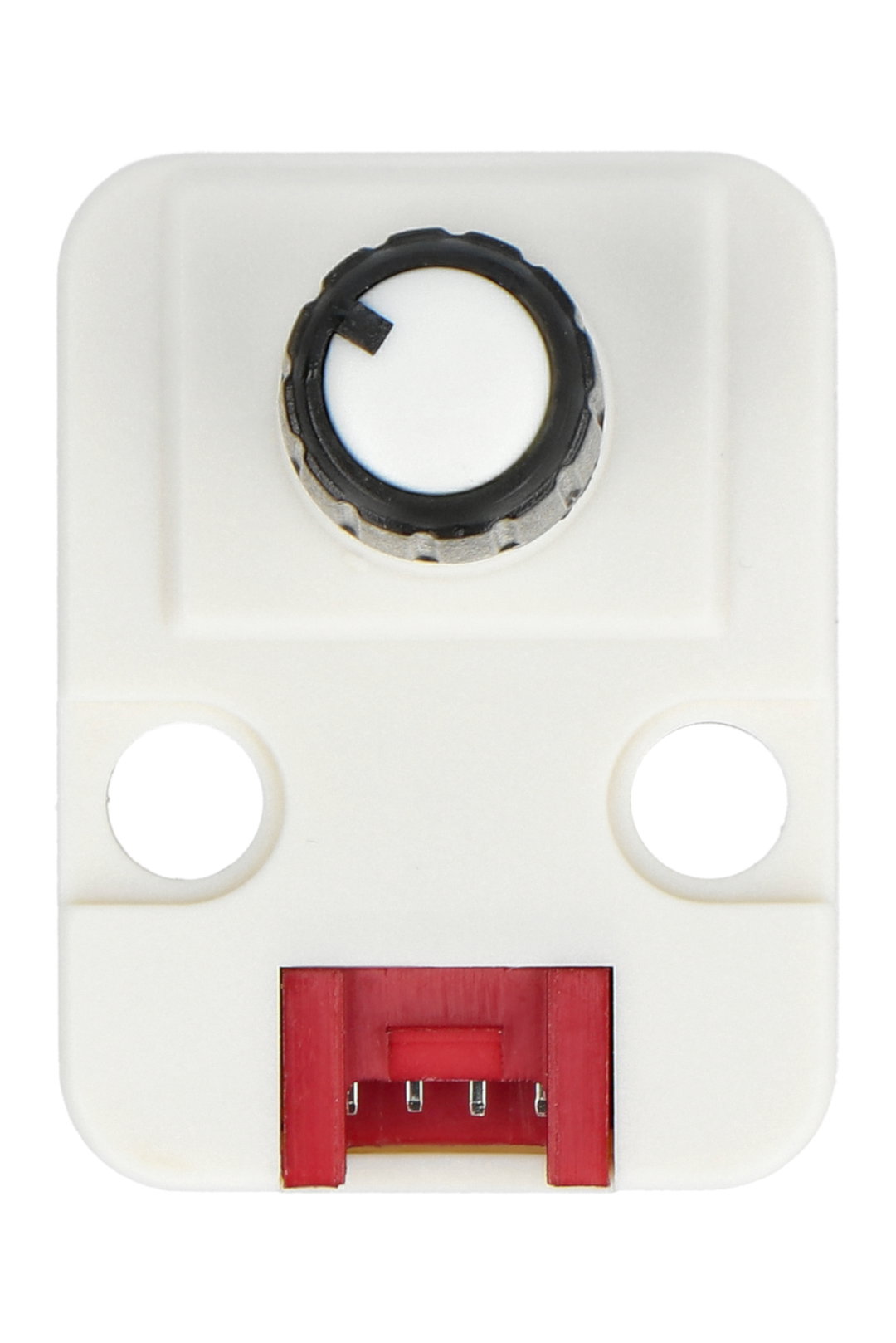

Encoder with M5Stack 30-pulse button

Encoder with M5Stack 30-pulse button.

Features of the encoder

  • 30-bit pulse coding knob (30 pulses per revolution)
  • 2x programmable RGB LEDs SK6812
  • 1x button

Set contains

  • Encoder with button 30 pulses - M5Stack - SKU: U135
  • 1x HY2.0-4P cable - 20 cm

Module specification

  • Pulse encoder knob: 30 pulse
  • Programmable RGB LED: 2x SK6812
  • Button: on the knob
  • Power supply: 5 V / 17 mA
  • Dimensions: 32 x 24 x 22 mm
  • Weight: 7.4 g

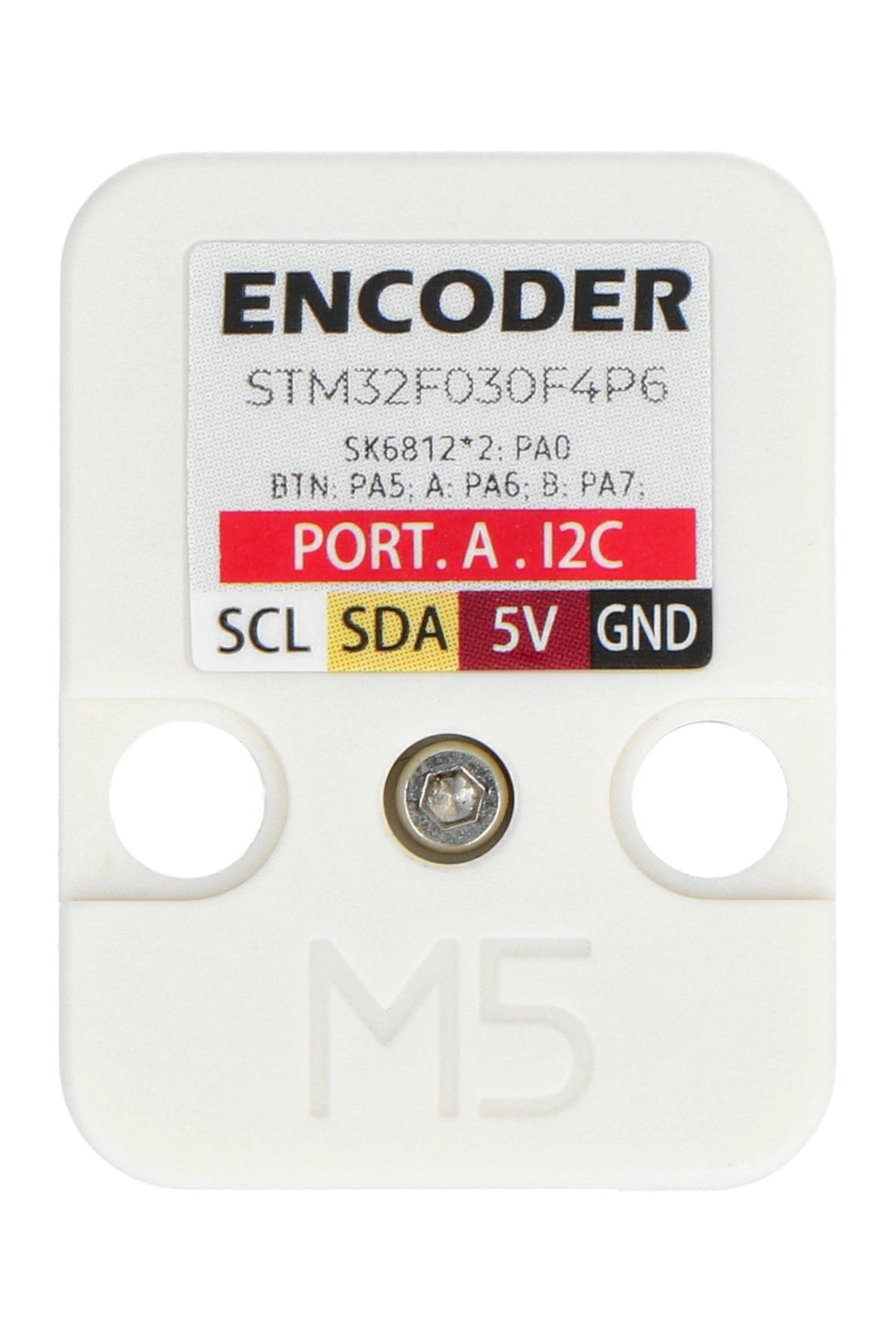

Encoder with button 30 pulses M5Stack rear view

Encoder with button 30 pulses M5Stack rear view.

Switch - type2 monostable
Switch - type Joystick + module
Switch - shape rectangular
Colour white
Mass 7,4
LED - type SK6812
Package width 12.5 cm
Package height 2.4 cm
Package depth 9 cm
Package weight 0.013 kg
