Product description: I / O 2 Expansion Module - STM32F0 - M5Stack U011-B
The I / O 2 module is based on the STM32F0 chip and extends the M5Stack main modules with additional I / O ports. It uses the I2C interface for communication with the main module. Each I / O port available on the module can be freely configured with such a port as: digital I / O, ADC, server control and RGB LED . The module allows you to change the I2C address, which means that the user can connect multiple M5Stack I / O 2 modules to one master module. The product is suitable for many digital, analog signal acquisition, with lighting and servo control.

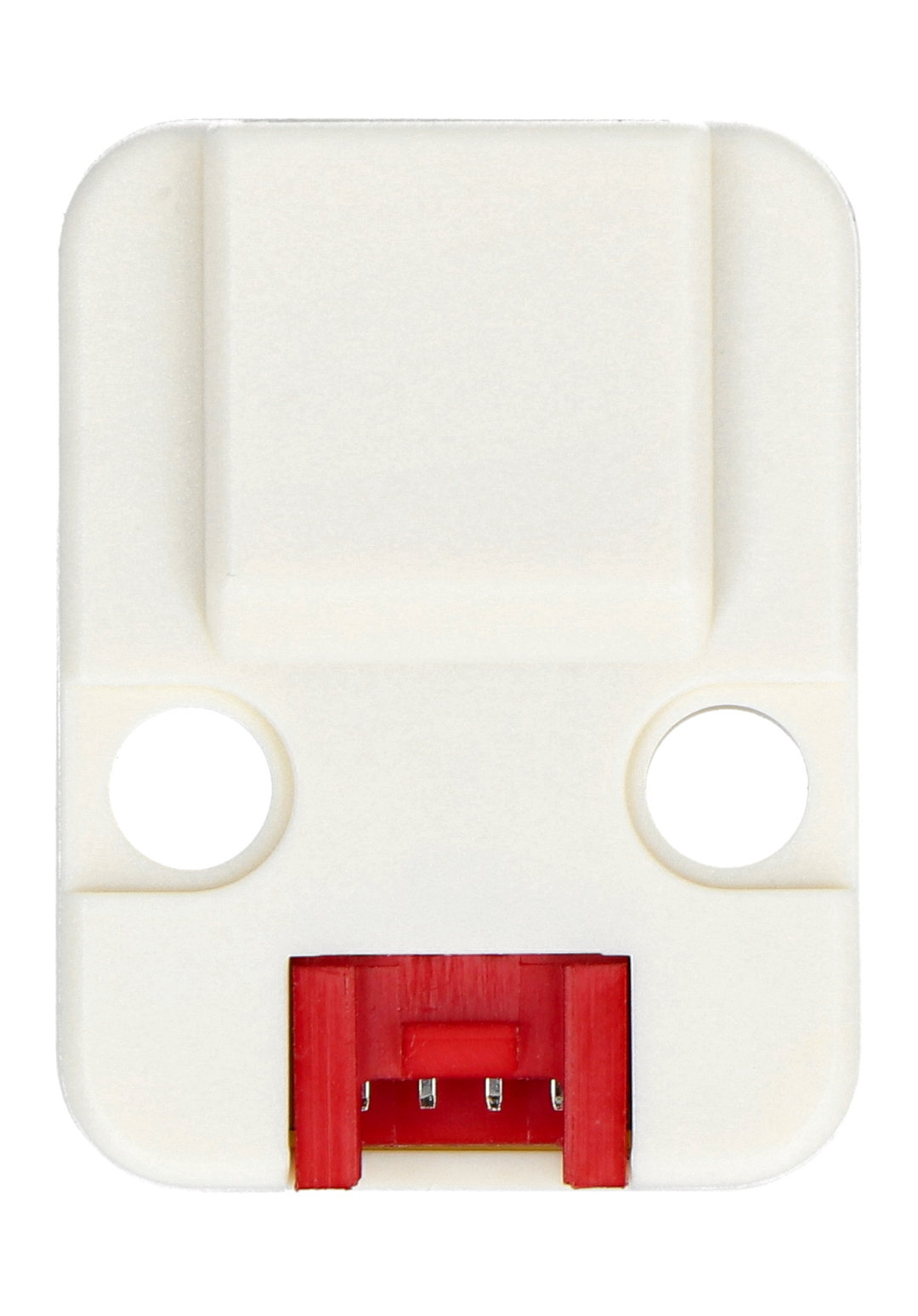

Expansion module I / O 2 - STM32F0 - M5Stack U011-B.

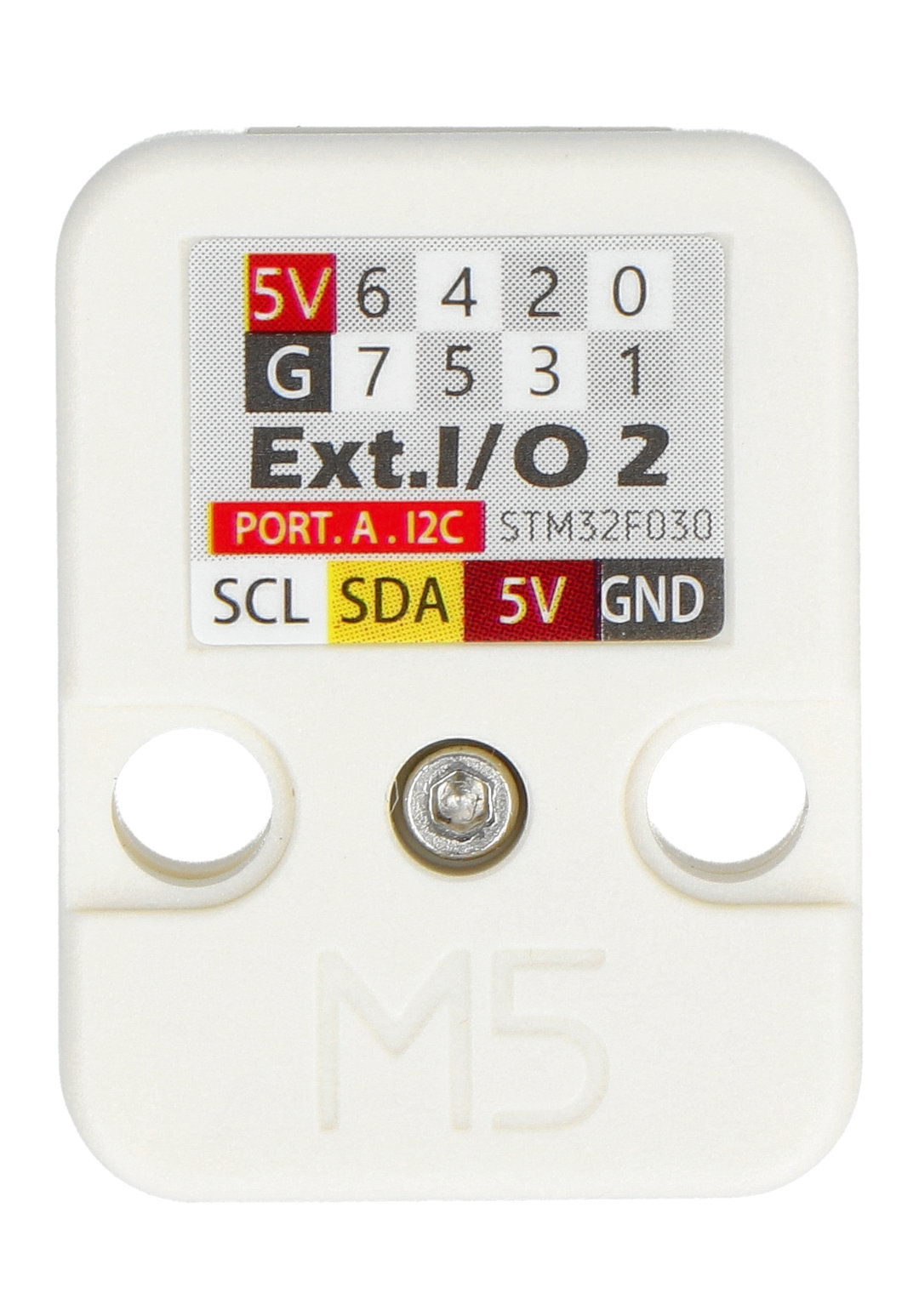

I / O expansion module 2.
Features of the module
- 8-channel expansion in and out
- Digital I / O
- ADC input
- SERVO control (PWM)
- RGB LED control
- Supports I2C address configuration

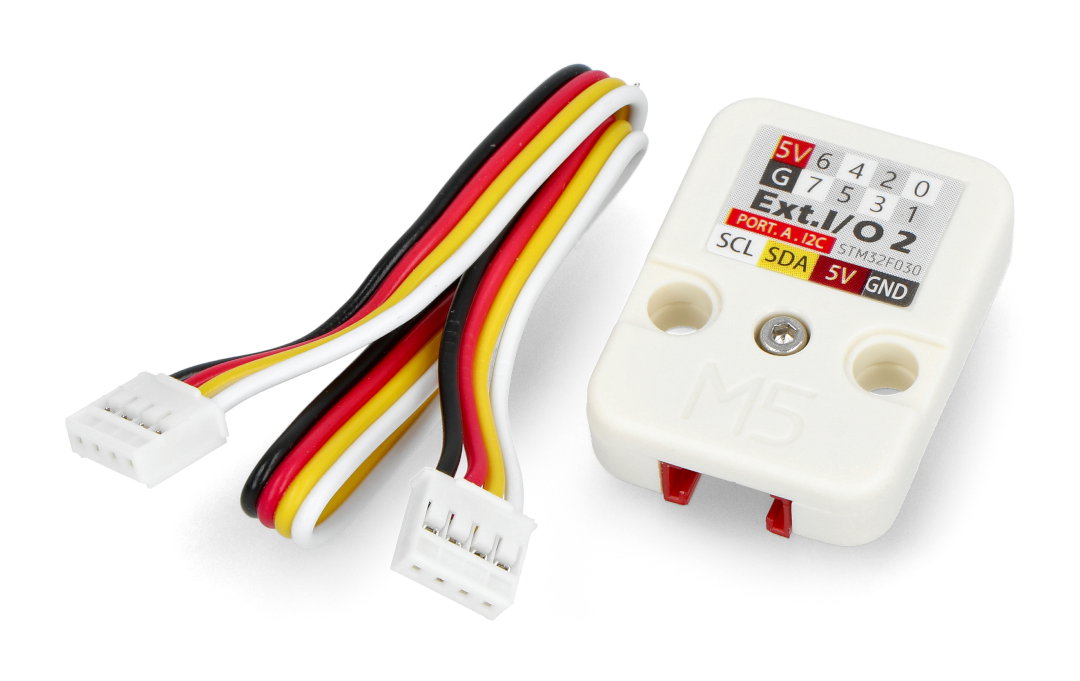

Set contains
- 1x extended IO 2 module - M5Stack - SKU: U011-B
- 1x HY2.0-4P cable
Expansion module specification
- Microcontroller: STM32F030
- I2C address: 0x45
- Number of IO extensions: 8
- Spacing between the pins of the IO interface: 2.54 mm
- Supported modes: Digital input / output, ADC, SERVO control, RGB LED control
- Power supply: 3.3 V
- Dimensions: 32 x 24 x 11 mm
- Weight: 5 g
I / O 2 Expansion Module - STM32F0.
