Product description: Pb.Hub V.1.1 I/O 6-channel I2C - STM32F0 - Unit extension module - M5Stack U041-B
I/O hub in the form of a Unit type extension from M5Stack . The module offers as many as 6 additional input/output ports and has been equipped with the STM32F0 control system. It uses the I2C interface to communicate with the main module. Each I/O port on the module can support GPIO, PWM, it also allows you to control the servo, ADC sampling or RGB lighting control.
The manufacturer has also prepared a detailed user's guide , which significantly facilitates work with the module. Check!

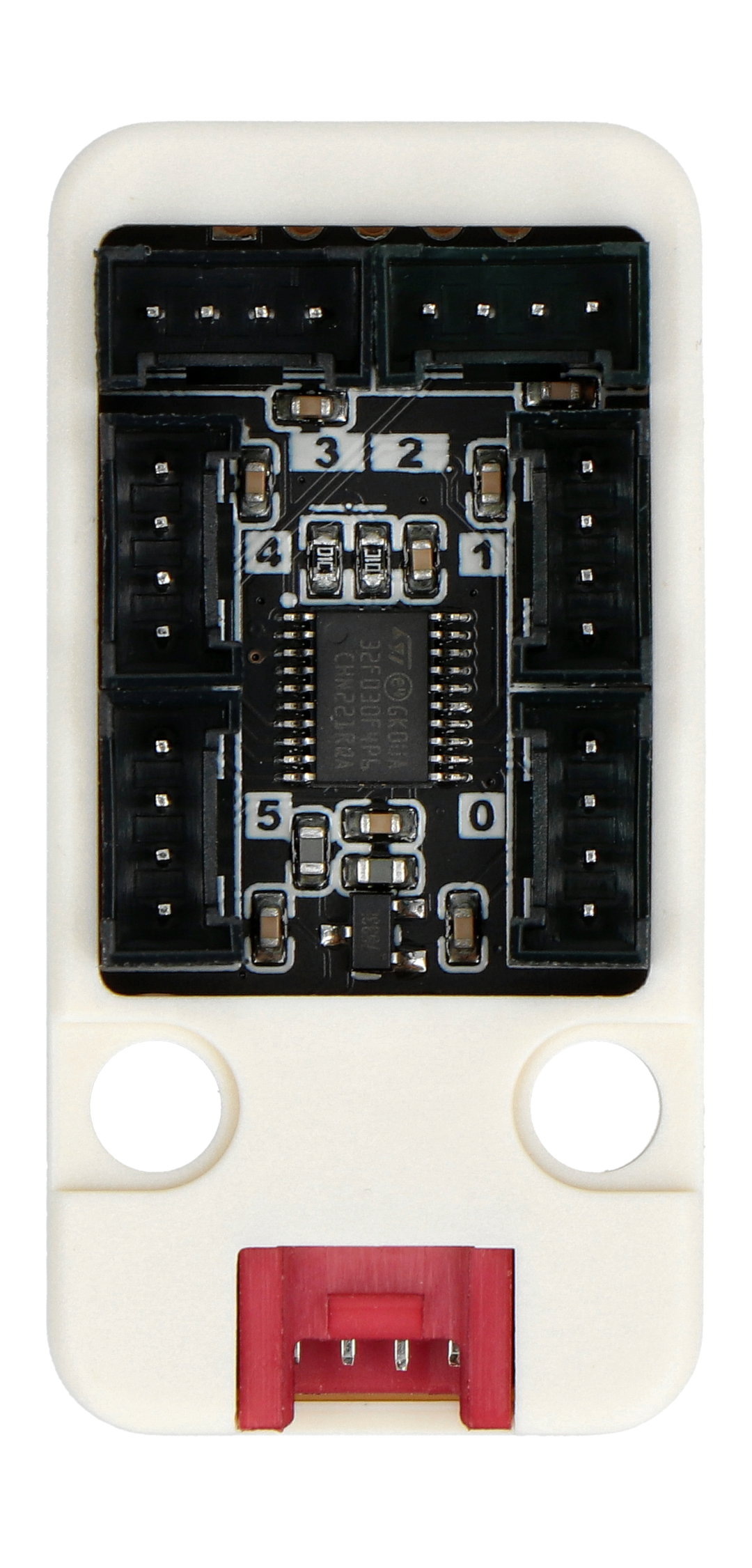

Pb.Hub V.1.1 I/O 6-channel I2C - STM32F0 - Unit expansion module - M5Stack U041-B.

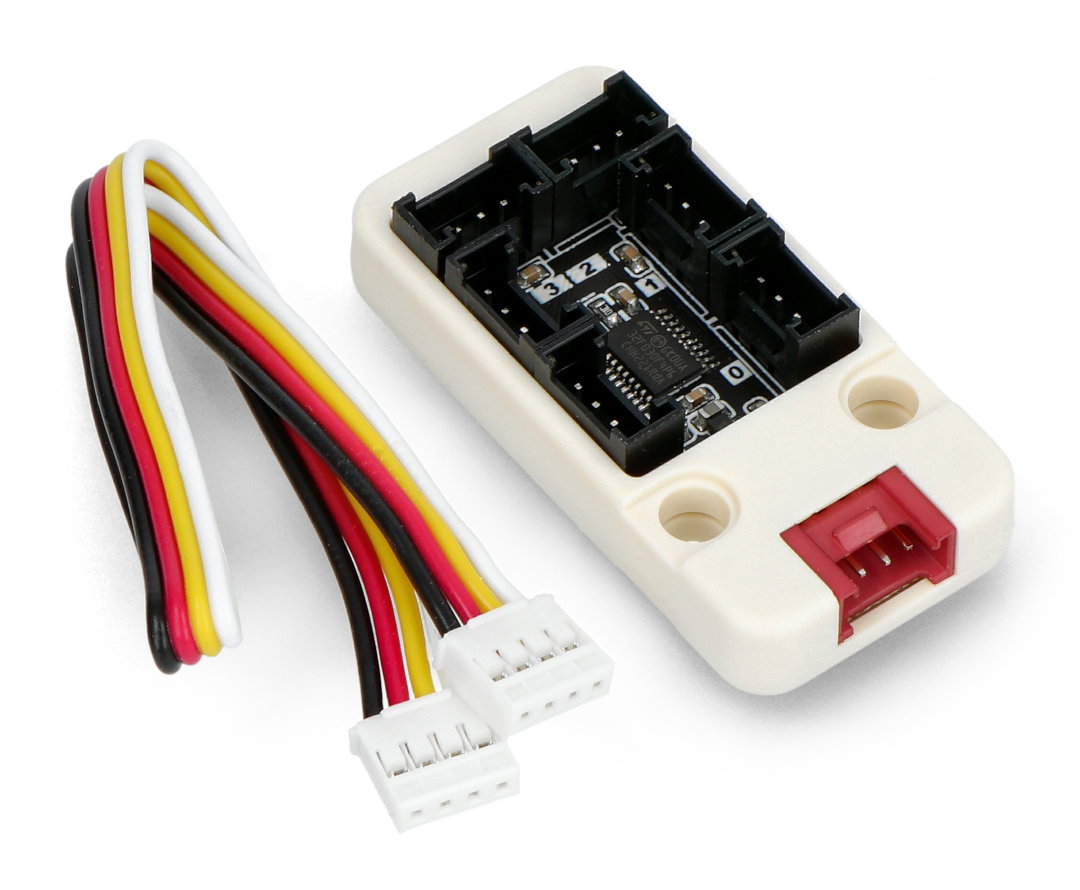

Components included in the set.
Module technical specification
- Type: I/O hub, ADC
- Built-in chip: STM32F0
- Number of channels: 6x I/O + 1x I2C
- Communication interface: I2C bus
- Interface address: 0x61 (configurable)
- Module dimensions: 48 x 24 x 12 mm
- Weight: 6.7g
Kit contents
- I/O Hub 6-channel I2C - STM32F0 - Unit extension module - M5Stack
- Connection cable with Grove connector - 20 cm long
