Product description: TSOP31236 infrared receiver - 36 kHz
TSOP31236 infrared receiver, operating at 36 kHz with a voltage from 2.7 V to 5.5 V.

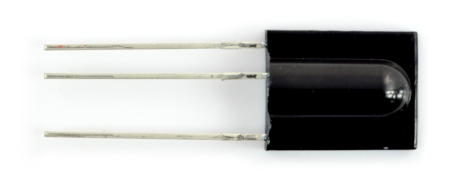

TSOP31236 infrared receiver.
Receiver connection

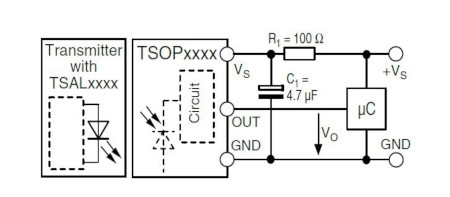

The picture below shows the sensor connection diagram taken from the documentation. The manufacturer recommends limiting the current with 100 ohm resistor and using 4.7uF filtering capacitor between the power supply terminals.
Connection diagram of the infrared receiver.
Specification of the TSOP31236 infrared receiver
- Supply voltage: 2.7 V to 5.5 V
- Average current: 5 mA
- Output voltage: up to 6V
- Operating frequency: 36 kHz
See documentation for details.
