Force sensor FSR-402 - 2kg round 18mm - Pololu 1696

Index: PLL-00753 EAN: 5904422366896

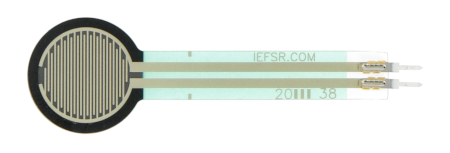

The pressure sensor reduces its resistance as the force applied to the round tip increases. Round sensor with a diameter of 18 mm.

Force sensor FSR-402 - 2kg round 18mm - Pololu 1696
€10.83
€8.80 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
FSR force sensor - size:
Manufacturer: Pololu
Compatibility: Arduino

Product description: Pressure force sensor FSR-402 - 2kg, round 18mm

The sensor reduces its resistance as the force applied to the round tip increases. Thanks to this phenomenon and the use of a microcontroller with an analog-to-digital converter, it is possible to construct a sensor measuring the pressure force. The measurement can be displayed e.g. on the LCD display.

With no force applied to the sensor, the resistance is approximately 1 MΩ. The placement of a 20-gram object caused the resistance to drop to 50 kΩ. During strong pressing of the sensor, the meter showed 200 Ω.

Układ pomiarowy i wykres zależności napięć i rezystancji od przyłożonej siły

The product is compatible with Arduino

On the web you can find a tutorial with sample code for Arduinoon the bildr website.

Pressure force sensor specification

  • External dimensions: 18.3 x 18.3 x 0.5 mm
  • Model: FSR-402
  • Range: 0.2 N to 20 N
  • Weight: 0.25 g

More details in thedocumentation.
