Tension beam YZC-1B (97) 40kg (400N)

Index: DNG-13170 EAN: 5903351240949

Strain-gauge beam operating in the range of up to 40 kg (400 N approx.). It is applied, for example, for kitchen scales, portable scales. The connecting cable has tips with the removed insulation, and its length is 50 cm.

Tension beam YZC-1B (97) 40kg (400N)
€18.00
€14.63 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Specification

  • Operating voltage: from 5 V to 12 V
  • Measuring range: 40 kg (approx. 400 N)
  • Output: analog signal
  • Case: NA1 - aluminum
  • Cable: four-vain, φ4 with the length of 50 cm
  • Dimensions: 97 x 24 x 22 mm
  • Weight: 195 g





Description

Strain-gauge beam operating in the range of up to 40 kg (400 N approx.). It is applied, for example, for kitchen scales, portable scales. The connecting cable has tips with the removed insulation, and its length is 50 cm.

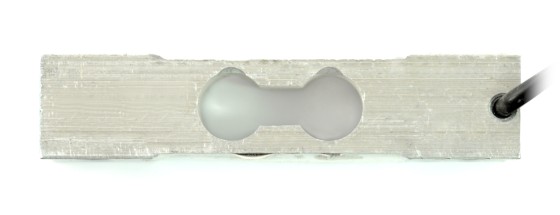

Belka tensometryczna 40kg (400N)

Connection:

  • Red cable: input voltage, positive pole (+)
  • Black wire: input voltage, negative pole (-)
  • Green wire: output signal +
  • White wire: output signal -



Check how to connect the beam with the Arduino!



Package width 9 cm
Package height 15 cm
Package depth 2.5 cm
Package weight 0.2 kg
