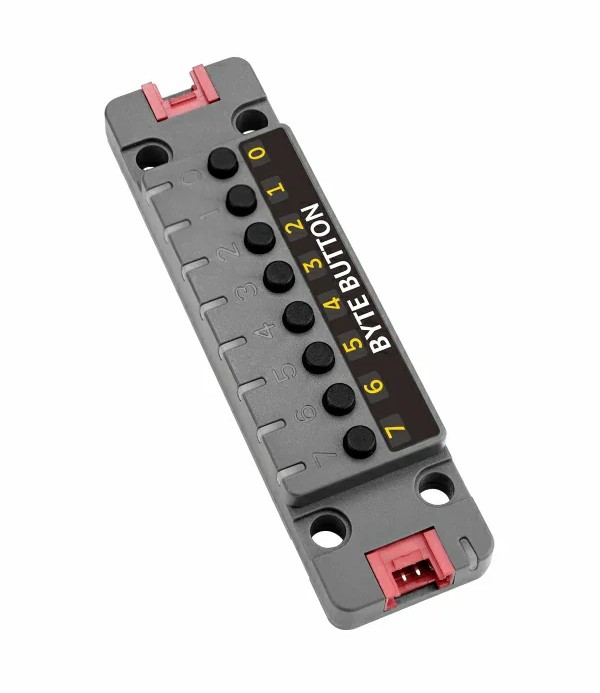

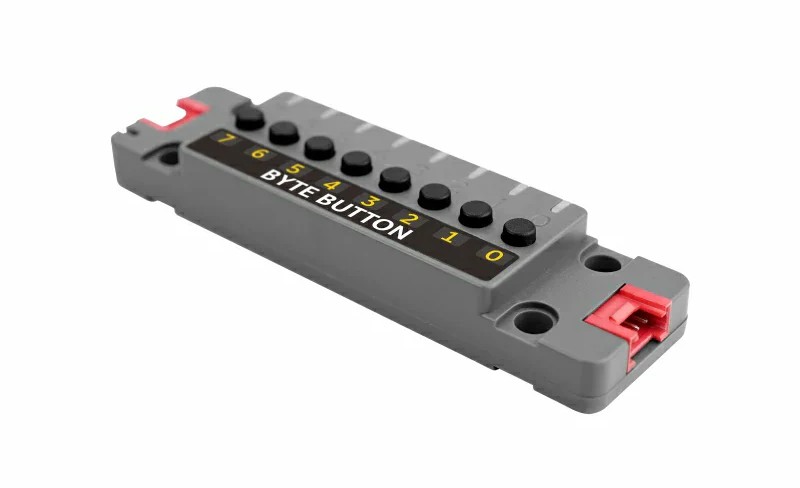

ByteButton - 8 buttons + 9 LEDs WS2812C RGB expansion module Unit - M5Stack U192
Unit ByteButton is an input module equipped with 8 buttons and 9 WS2812C RGB diodes . It was designed for dynamic detection of button inputs and effective status visualization using RGB lights. It is based on the STM32 microcontroller and supports I2C communication, which makes it an ideal solution for Smart Home systems, control panels, educational devices and interactive exhibitions.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Byte Button Unit - 8 button module + 9 WS2812C RGB diodes - Unit expansion module - M5Stack U192
Unit ByteButton is a compact module designed to detect inputs from 8 independent buttons . In addition to the buttons, the module is equipped with 9 WS2812C RGB diodes , which enable dynamic backlighting, serving as visual feedback to the user. Thanks to the STM32G031 microcontroller, the module provides efficient operation of buttons and LEDs, while offering simple communication with other devices via the I2C interface. The module can be used in various applications, such as control panels in Smart Home systems, interactive exhibitions, or educational devices. One of its key features is the ability to cascade, which allows for easy expansion of the system with additional units , e.g. increasing the number of buttons or RGB diodes in larger projects. It is compatible with popular programming platforms such as Arduino IDE and UiFlow , which makes its integration in various environments quick and easy.
Also check out the user guide prepared by the manufacturer!
Byte Button Unit - module 8 buttons + 9 WS2812C RGB diodes - Unit expansion module - M5Stack U192.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

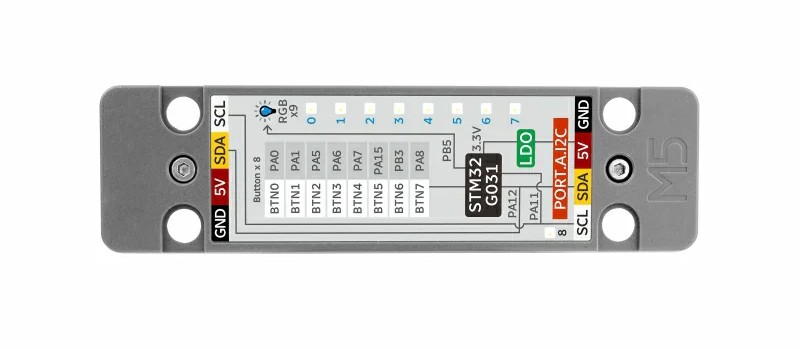

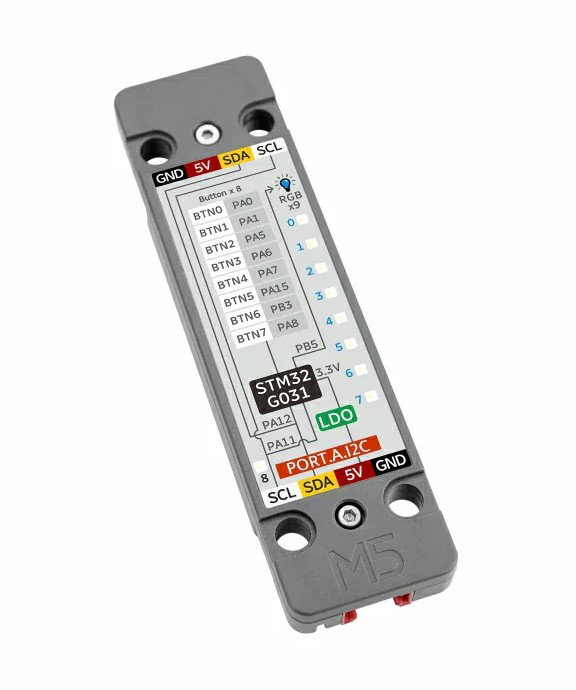

The module is based on the STM32G031G8U6 microcontroller.
Key Features of ByteButton Unit
- 8 independent buttons : ensure precise and fast detection of system inputs
- 9 WS2812C RGB LEDs : enable dynamic button illumination, adapted to different colors and effects
- STM32G031G8U6 microcontroller : 32-bit ARM Cortex M0+ processor provides high performance and reliability
- I2C communication : facilitates integration with other devices, allows for the expansion of the system with additional modules
- Possibility of cascading units : allows the system to be expanded with additional buttons and RGB diodes
- Compatibility with popular development environments : supports Arduino IDE and UiFlow, simplifying programming and integration
Compatibility and programming
Unit ByteButton supports I2C communication, which allows for easy connection and integration with other devices. This makes it compatible with a wide range of platforms, including popular development environments such as Arduino IDE and UiFlow . The module is an ideal solution for users of the M5Stack ecosystem, enabling integration with other M5Stack development modules such as Core , StickC or Atom , which allows for the creation of more advanced applications. Thanks to the possibility of cascading several modules, the system can be easily expanded with additional buttons and RGB diodes. The STM32G031 microcontroller, responsible for handling all functions, ensures precise management of inputs and outputs and fast data transfer.

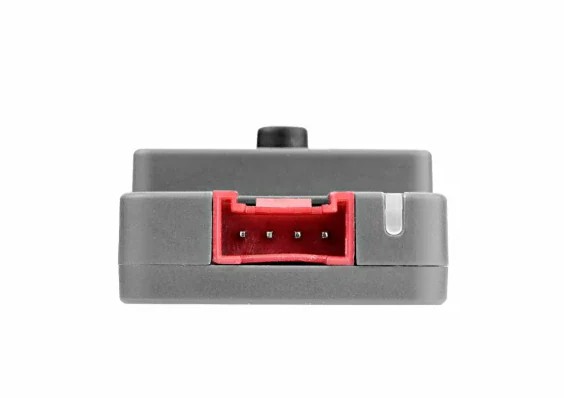

The module is equipped with a Grove interface.
Byte Button Unit is compatible with M5Stack development modules.
Practical applications
Unit ByteButton is ideal for a variety of applications including:
- Control panels for Smart Home systems : allows you to manage your home devices via buttons and visual cues
- Gaming Devices and Entertainment Controllers : Perfect for creating control panels with physical buttons and dynamic lighting effects
- Educational and laboratory platforms : perfect for learning programming and creating interactive projects
- Status displays and feedback devices : RGB LEDs provide a dynamic visual feedback on the system status
- > Interactive exhibitions and stage : to control lighting effects and interact with users
Technical Specifications Byte Button Unit
- Microcontroller: STM32G031G8U6, 32-bit ARM Cortex M0+, 64 MHz
- Number of buttons: 8 independent buttons
- Button type: capacitive buttons
- RGB LEDs: WS2812C-2020 (9 pcs.)
- Communication interface: I2C, 0x47
- Grove Interface: 2 ports (I2C bus extension)
- Standby Power Consumption: DC 5V @ 8.94mA
- Operating temperature range: 0°C to 40°C
- Dimensions: 88 x 24 x 12 mm
- Weight: 15.1 g
Kit Contents
- 1x Byte Button Unit
- 1x Grove Cable (20cm)
Thanks to two PORT.A interfaces, it is possible to cascade multiple modules.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | STM32G031G8U6 |
| UC - Core | ARM Cortex-M0+ |
| UC - freq | 64 MHz |
| UC - I2C | yes |
| Width | 12 cm |
| Height | 17 cm |
| Depth | 2 cm |
| Weight | 0.022 kg |
