M5PoECAM-W V1.1 - OV3660 PoE camera module - WiFi - M5Stack U121-B-V11

Index: MSS-25330 EAN: 6972934175328
M5PoECAM-W V1.1 is a programmable PoE camera based on ESP32 and W5500 with an OV3660 image sensor with a resolution of 3 MPx and WiFi connectivity. It has 16 MB Flash, 8 MB PSRAM, an RJ45 interface with TCP/IP support and PoE function (up to 6 W). Equipped with a Grove port, a G37 button, an LED diode and the possibility of LEGO assembly. Suitable for monitoring, industrial automation and Smart Home applications. Supports Arduino and ESP-IDF platforms, and programs can be uploaded via microUSB.
M5PoECAM-W V1.1 - OV3660 PoE camera module - WiFi - M5Stack U121-B-V11
€39.50
€32.11 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack

Product description: M5PoECAM-W V1.1 - OV3660 PoE camera module - WiFi - M5Stack U121-B-V11

M5PoECAM-W V1.1 is a compact, programmable PoE camera (ESP32 + W5500) with a 3 MPx OV3660 image sensor and a 66.5 ° viewing angle. The integrated RJ45 connector provides a fast LAN connection (10 / 100 M), and WiFi 802.11 b / g / n allows wireless connectivity. The camera supports TCP / IP and PoE (up to 6 W), making it ideal for remote monitoring and automation. Built-in 16 MB Flash memory, 8 MB PSRAM and an LED, Grove port and LEGO clip increase its functionality and expandability. Programs can be easily uploaded via microUSB. It supports Arduino and ESP-IDF, providing versatile application possibilities.

There is a detailed user guide available on the manufacturer's website to help you get started with the camera, as well as a tutorial showing how to power and program the module via PoE.

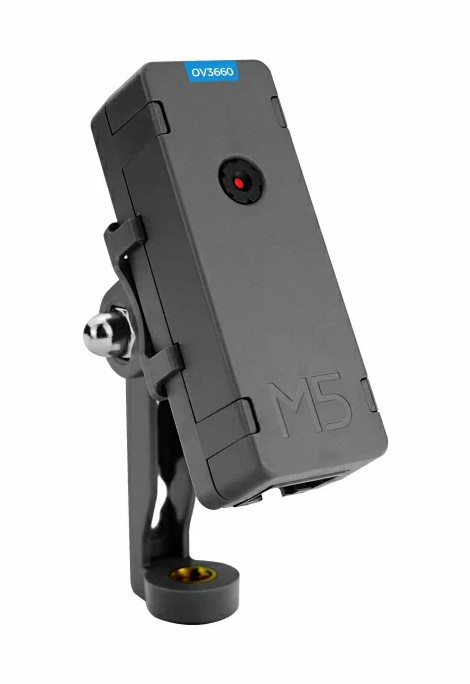

M5PoECAM-W V1.1 - OV3660 PoE camera module - WiFi - M5Stack U121-B-V11

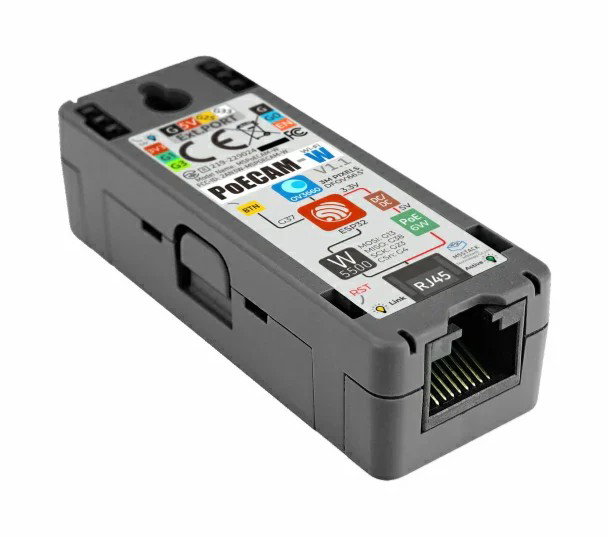

M5PoECAM-W V1.1 - module with OV3660 PoE camera - WiFi - M5Stack U121-B-V11.

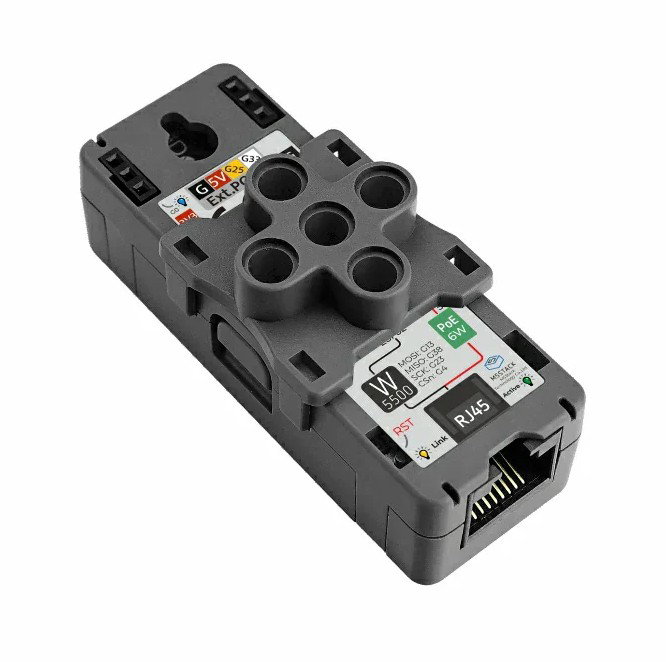

M5PoECAM-W V1.1 - OV3660 PoE camera module - WiFi - M5Stack U121-B-V11 It has built-in PoE (Power Over Ethernet) with W5500 control system.

Main Features of PoECAM-W V1.1

  • OV3660 3MP image sensor with 66.5° viewing angle
  • ESP32 module with 16 MB Flash and 8 MB PSRAM
  • RJ45 Ethernet interface (LAN 10/100M)
  • PoE compliant with IEEE802.3 AF standard (max 6 W)
  • Built-in LED, Grove port, G37 button
  • Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Support for Arduino and ESP-IDF platforms

Connection and Compatibility

To get started with the M5PoECAM-W V1.1, all you need is a PoE-enabled Ethernet cable and a microUSB port for programming and power. The camera is compatible with various M5Stack modules , such as M5Stack Core2 , M5StickC , M5Atom , and M5 expansion modules, such as LoRa and RS485. The Grove port also allows you to connect various accessories, including sensors.

M5PoECAM-W V1.1 - OV3660 PoE camera module - WiFi - M5Stack U121-B-V11

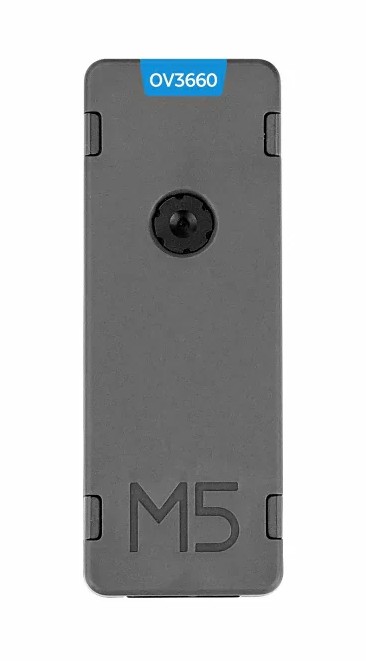

The OV3660 camera offers 3 Mpx resolution and a 65° field of view.

Applications of the OV3660 PoE camera module

M5PoECAM-W V1.1 is an ideal solution for remote monitoring and automation, suitable for a wide range of applications. Thanks to the PoE (Power over Ethernet) function, the camera is suitable for continuous monitoring of warehouse spaces, smart homes and industrial facilities. Equipped with WiFi and support for TCP/IP protocols, the camera can be used for tasks related to machine vision, serial photography and visual analytics. Compatibility with Arduino and ESP-IDF platforms allows programming of non-standard functions, such as automatic image transfer to the server or integration with IoT systems.

PoECAM-W V1.1 Technical Specification

  • Built-in chip: ESP32-D0WDQ6-V3
  • Connectivity: Wi-Fi 802.11 b/g/n
  • Camera module: OV3660
  • Resolution: 3MPx
  • DFOV: 65.5°
  • FOV: 65°
  • Ethernet: W5500 chip, RJ45 interface, LAN 10/100M, PoE (IEEE802.3 AF, max 6W)
  • Memory: 16MB Flash, 8MB PSRAM
  • Image Output Format: RAW, RGB565/555/444, YUV422/420, YCbCr422, JPEG
  • Automatic image control functions: AEC, AGC, AWB, ABF, ABLC
  • Dimensions: 64 x 24 x 18 mm
  • Weight: 38 g

Kit Contents

  • 1x M5PoECAM-W V1.1 (PoE camera)
  • 1x Camera Mount Bracket
  • 1x LEGO compatible clip
M5PoECAM-W V1.1 - OV3660 PoE camera module - WiFi - M5Stack U121-B-V11

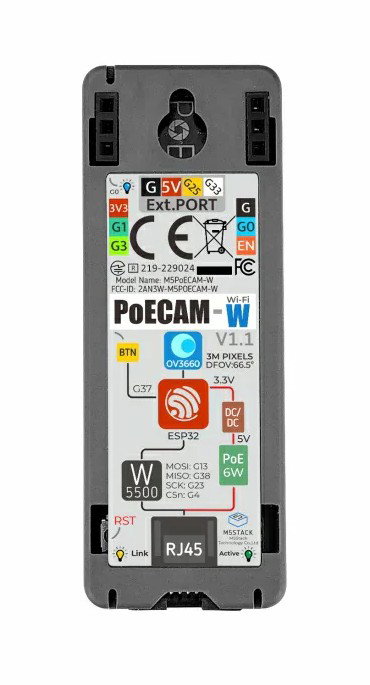

The built-in ESP32-D0WDQ6-V3 chip supports 2.4 GHz WiFi.

Package width 4 cm
Package height 8 cm
Package depth 3.5 cm
Package weight 0.044 kg
