M5Stack Core Basic V2.7 - development module - ESP32

Index: MSS-20531 EAN: 5904422381547
M5Stack Core Basic V2.7 development module based on ESP-32 controller with a dual-core 32-bit Xtensa® LX6 microprocessor clocked at up to 240 MHz. It has WiFi and Bluetooth wireless communication module, 16 MB Flash memory, memory card slot, built-in speaker, 3 programmable buttons and 2" display 320 x 240 px.
M5Stack Core Basic V2.7 - development module - ESP32
€41.50
€33.74 tax excl.
Delivery 50 pcs scheduled for 2024-11-01
Waiting for delivery
PayPal payment
Manufacturer: M5Stack

Product description: M5Stack Core Basic V2.7 - development module - ESP32

M5Stack Core Basic V2.7 development module based on ESP-32 controller with a dual-core 32-bit Xtensa® LX6 microprocessor clocked at up to 240 MHz. It has WiFi and Bluetooth wireless communication module, 16 MB Flash memory, memory card slot, built-in speaker, 3 programmable buttons and 2" display 320 x 240 px.

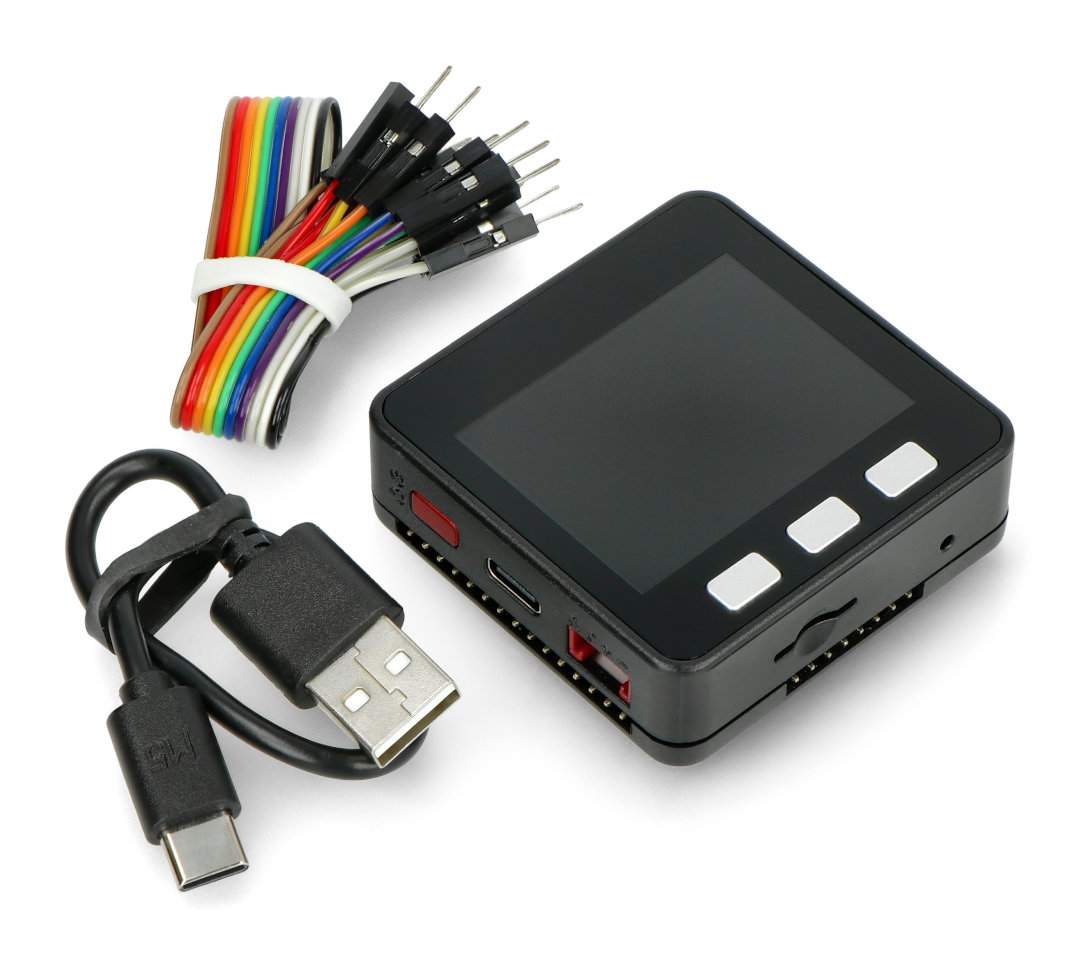

Set contents

  • M5Stack Core Basic V2.7 - development module - ESP32
  • M5Stack Core Bottom - extension cap with battery
  • USB type C cable 20 cm long
  • Connection wires

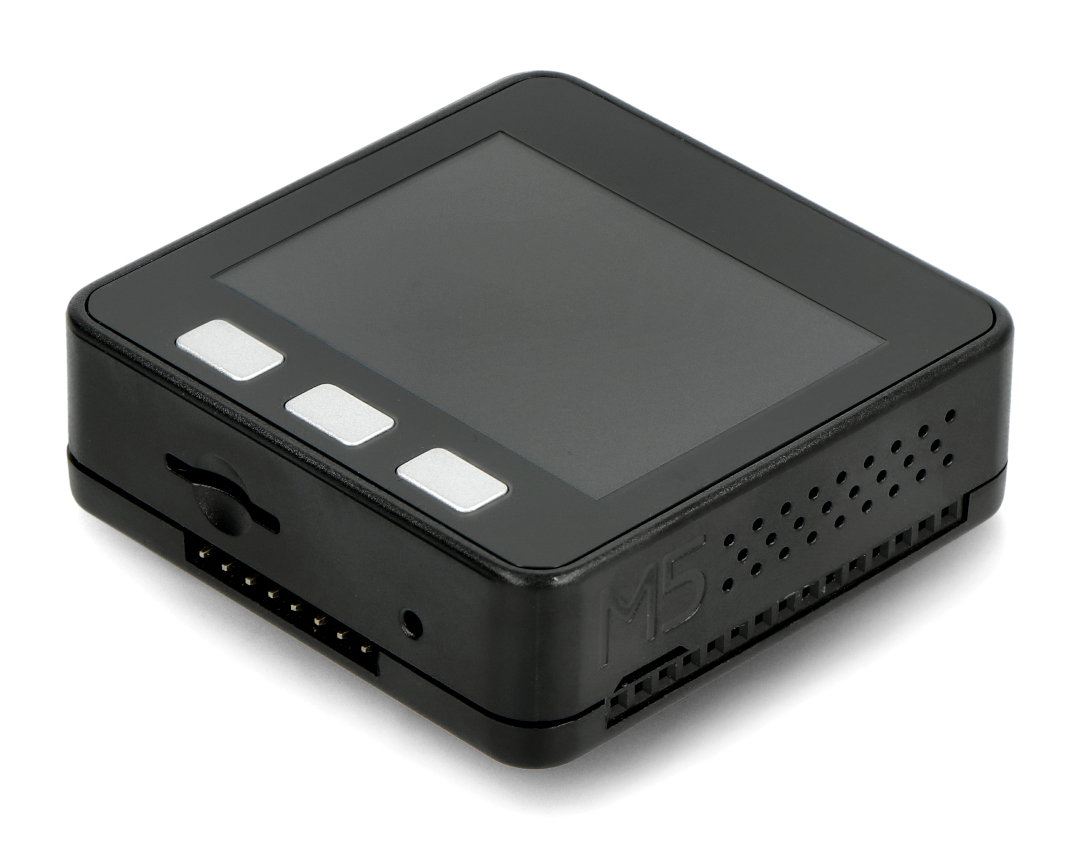

M5Stack Core Basic V2.7 - development module - ESP32.

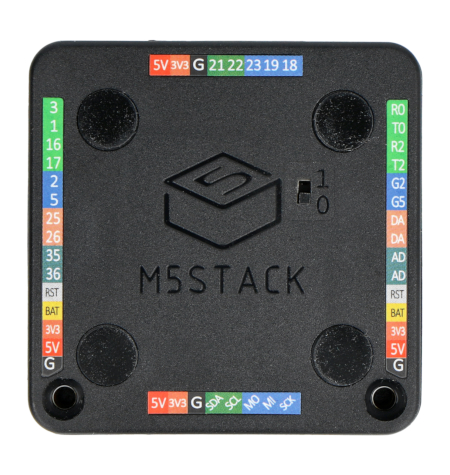

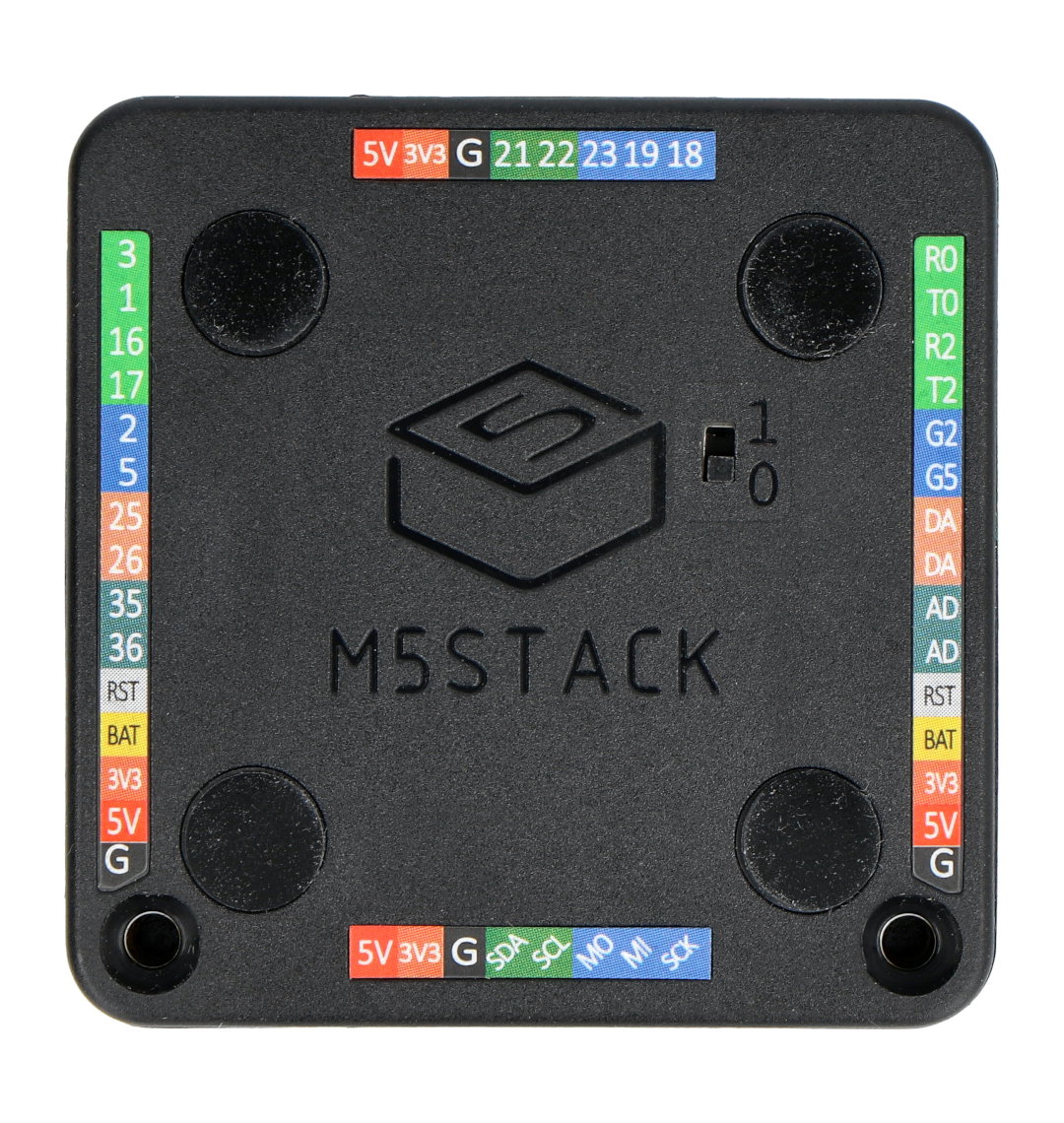

Producent zastosował kolorowe oznaczenia, ułatwiające identyfikację wyprowadzeń. The manufacturer has used color coding, making it easier to identify the leads.

M5Stack Core - what distinguishes these modules?

The Core series from M5Stack is the most advanced series of modules produced by the company. With their help, you can easily develop systems using multiple sensors and extensions - all without knowledge of electronics and robotics. M5Stack has prepared a number of extensions for its modules that are convenient and easy to install - they only require plugging in the Grove cable or plugging in compatible connectors located at the bottom of the device. Basic kit is equipped with USB type C cable for powering and programming the module, connecting cables and basic Bottom cover with GPIO connectors and Li-Ionbattery.

Technical specification M5Stack Basic Core

  • Version: V2.7
  • Controller: ESP32-D0WDQ6-V3
    • Dual-core with 240 MHz, 600 DMIPS, 520 KB SRAM,
    • Wireless communication: WiFi
  • Flash memory: 16 MB
  • Input voltage: 5 V / 500 mA
  • Display: 2" TFT 320 x 240 px
  • Interfaces: I2C, USB type C
  • I/O: G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
  • Number of buttons: 3
  • Display: 2'' IPS with resolution 320 x 240 px
  • Speaker: 1W-0928
  • USB chip: CH9102F
  • Antenna: 3D 2.4 GHz
  • Supported development environments:
  • Rechargeable battery: 3.7 V / 110 mAh
  • Dimensions: 54 x 54 x 18 mm
  • Weight: 47.2 g
Package width 9.5 cm
Package height 2.5 cm
Package depth 6.5 cm
Package weight 0.091 kg
