STM32F030F4 AC relay module - 2-channel - for M5Stack developer modules - M124
2-channel relay module STM32F030F4 designed for development modules M5Stack Core series . It is used as a device designed to control the operation of a small load circuit - the maximum operating parameters are 250 V AC / 5 A , and the contact resistance is less than 100 mOhm . The module can be used in control applications such as solenoid valve control and can be used as a remote IoT switch.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Relay module STM32F030F4 AC - 2-channel - for development modules M5Stack - M124
2-channel relay module STM32F030F4 designed for development modules M5Stack Core series . It is used as a device designed to control the operation of a low-load circuit - the maximum operating parameters are 250 V AC / 5 A , and the contact resistance is less than 100 mOhm. The module can be used in control applications such as solenoid valve control and can be used as a remote IoT switch.
The manufacturer has also prepared a detailed user guide - check it out!

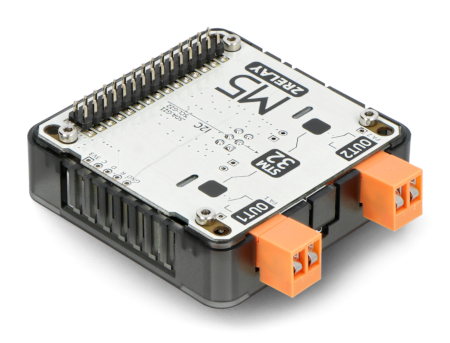

Relay module STM32F030F4 AC 13.2 - 2-channel - for development modules M5Stack Core - M124.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

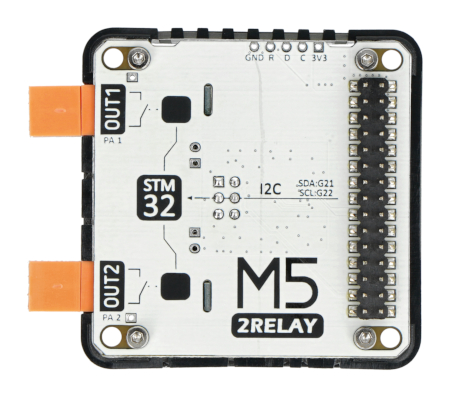

2-channel relay module manufactured by M5Stack.
What is a relay? What is the relay for?
Are you wondering what the definition of a relay is? In short, it can be said that a relay is a device that performs the ON-OFF function. It opens and closes the electric circuit, thanks to which it affects the work of other elements in a given control system. Among the basic types of electrical relays, we distinguish polarized relays, safety relays, electromagnetic relays and static relays. Have more questions? Also check the article on our blog - Relays and contact elements - How does it work?
Module technical specification
- Module type: relay
- Built-in chip: STM32F030F4P6
- Number of channels: 2
- Communication interface: I2C bus
- I2C interface address: 0x26
- Maximum operating parameters: 250 V AC / 5 A
- Contact resistance: ≤ 100mOhm
- Supported development platforms: Arduino, UIFlow
- Module dimensions: 54 x 54 x 20.2 (13.2) mm
- Weight: 33.4g
Kit contents
- Relay module STM32F030 AC 13.2 - 2-channel
- Screw connectors VH3.96-2P - 2 pieces

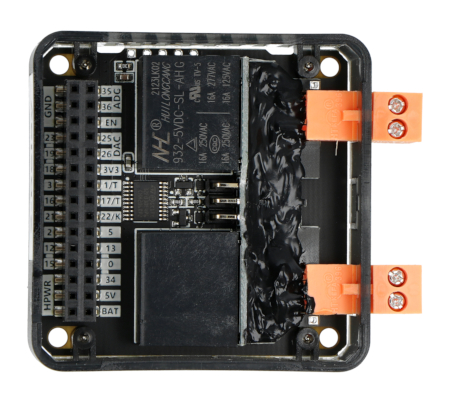

STM32F030F4 relay module - inside view.
Useful links
| Name | Value |
|---|---|
| Sensor - type | relay |
| Width | 9.5 cm |
| Height | 6.5 cm |
| Depth | 2.8 cm |
| Weight | 0.054 kg |
