Product description: M5Stack Battery Module 13.2 - battery cover - 1500 mAh - for M5Stack Core development modules - M5Stack M120
M5Stack Battery Module 13.2 is a cover with a lithium-polymer battery with a capacity of 1500 mAh , designed for M5Stack development modules of the Core series . It increases design possibilities, allows for more complex expansion and provides autonomous and stable power sources . It is compatible with most of the available 3.7 V Li-Pol batteries, and has protection against overcharging and discharging the battery.

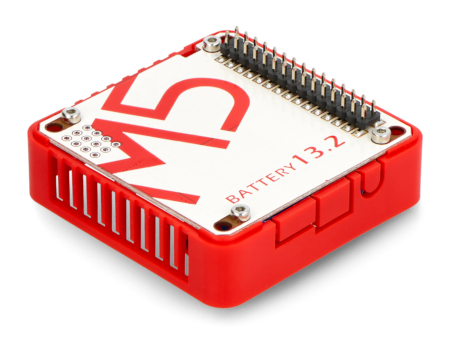

M5Stack Battery Module 13.2 - cover with battery - 1500 mAh - M5Stack M120.

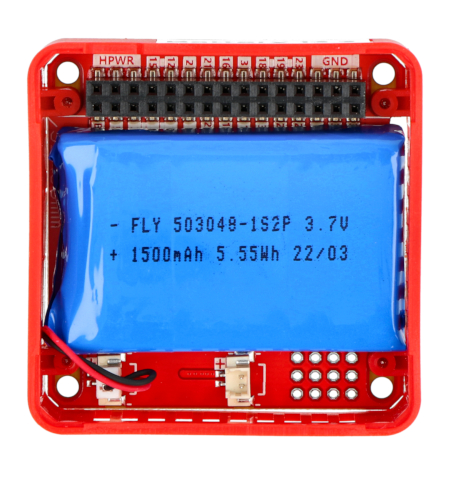

The cover has a 1500 mAh lithium-ion battery in the set.
Special features of the overlay
- Nominal capacity of 1500 mAh extending the design possibilities
- Overcharge and over-discharge protection
- Compatible with many 3.7V Li-Pol polymer batteries
- Laboratory tested:
- Charging current 791 mA - full charging time 110 minutes (test equipment: M5Stack Core + M5Stack Battery Module 13.2)
- Discharge current 330mA - discharge time 265 minutes (test equipment: M5Stack + M5Stack Battery Module 13.2 + M5GO DOL overlay)
Kit contents
- M5Stack Battery Module 13.2 - overlay with battery - 1500 mAh - for M5Stack Core development modules - 1 piece
Technical specification of the extension
- Battery type: Lithium Polymer Li-Pol
- Battery capacity: 1500mAh (0.2C)
- Battery voltage: 3.7V
- Charging voltage: 4.2V
- Discharge voltage: 3V
- Charging Current:
- Standard Charging: 0.2C (300mA)
- Fast Charge: 0.8C (1200mA)
- Maximum charge / discharge current: 0.8C (1200mA)
- Internal resistance: ≤ 150 mOhm
- Service life: more than 300 cycles
- Operating temperature range:
- Charging: 5 ° C to 45 ° C
- Discharging: -10 ° C to 55 ° C
- Dimensions: 54.2 x 54.2 x 13.2 mm
- Weight: 43.3 g

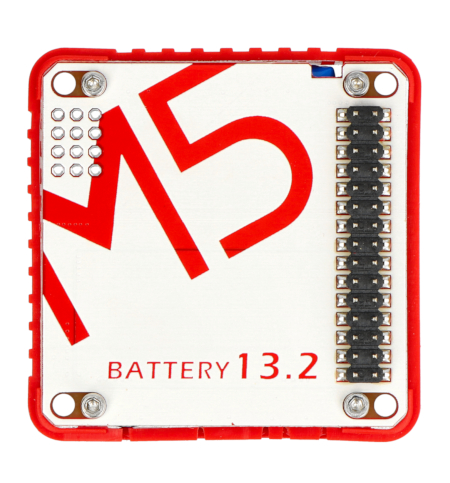

The derived connectors allow for convenient stocking and further prototyping of development modules.

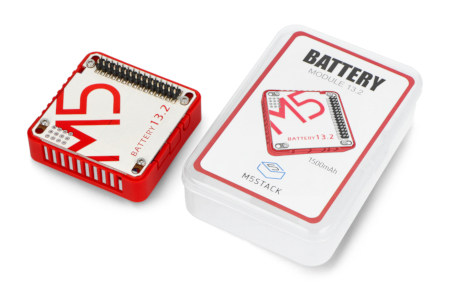

The M5Stack Core development module must be purchased separately.
M5Stack Core / M5Stack Core 2 - series of modules
The Core series is the most advanced series of development modules manufactured by M5Stack. Thanks to them, systems with many sensors and extensions can be developed quickly and easily - even without any knowledge in the field of electronics and robotics. The manufacturer M5Stack has prepared a wide range of extensions for development modules, which during installation only require connecting the Grove cable or plugging into compatible connectors at the bottom of the device.
