Product description: Multi-channel 4IN8OUT - multi-channel DC driver - STM32F030 - M5Stack M122
The multi-channel 4IN8OUT is a multi-channel DC driver with the STM32F030 chip. It offers the user as many as 4 input channels that can work as switches, and as many as 8 MOS output channels . The shield is powered with a voltage in the range from 9 V to 24 V DC , inside the system there is also a DC / DC converter that lowers the voltage to 5 V. The multi-channel 4IN8OUT is an extension intended for the development modules M5Stack Core Basic , M5Stack Fire and M5Stack Core2 . The set also includes screw connectors that make it easy to connect peripheral devices.

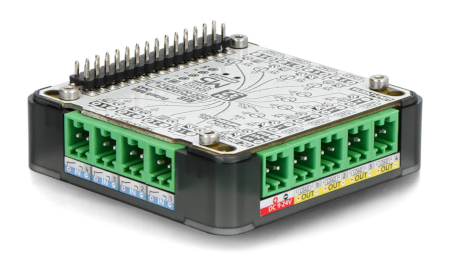

Multi-channel 4IN8OUT - multi-channel DC driver - STM32F030 - M5Stack M122.

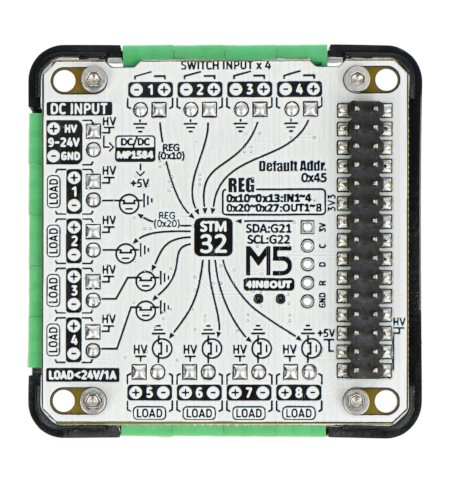

The module has a total of 12 channels - 4 inputs and 8 outputs.
Special features of the module
- Compatible with M5Stack Core Basic , M5Stack Fire and M5Stack Core2 development modules
- Built-in STM32F030 as an I/O chip, I2C communication with the ability to modify the address
- Has an internal MP1584 voltage converter, 9 V to 24 V -> 5 V DC / DC
- Output load < 1 A per channel
- Equipped with as many as 12 channels - 4 inputs and 8 outputs
- It is used as a multi-channel driver such as a relay, valve, single-phase motor, single LED.
The manufacturer has also prepared a user's guide , which includes sample program code.
Module technical specification
- Input voltage range: 9 V to 24 V
- Number of channels: 12
- Number of inputs: 4
- Number of outputs: 8
- Output load: < 1 A per channel
- Communication interface: I2C bus
- Interface address: default 0x45, can be changed by modifying the 0xF0 register
- Module dimensions: 54 x 54 x 13 mm
- Weight: 21.9g

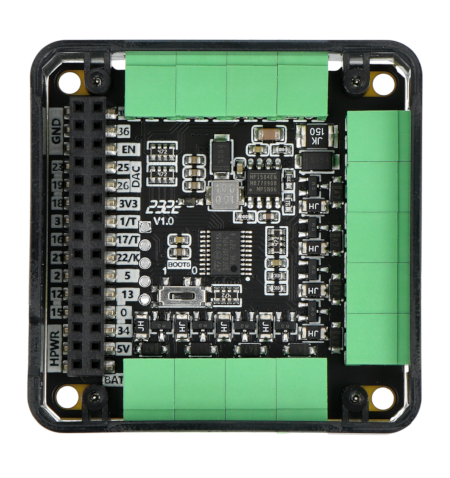

Multi-channel 4IN8OUT - inside view.

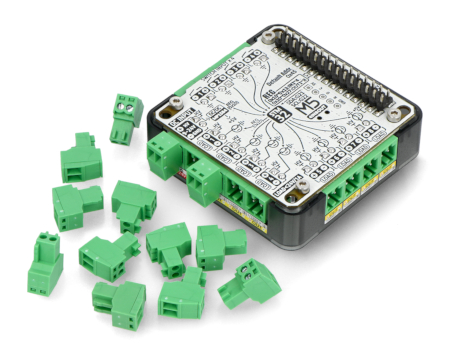

Components included in the set.
Kit contents
- Multi-channel 4IN8OUT - multi-channel DC driver - STM32F030 - 1 piece
- 2-pin screw terminal - 13 pieces
