Product description: LAN Module 13.2 - communication module - W5500 - for M5Core development modules - M5Stack M136
The LAN Module 13.2 is a compact and functional communication module based on the W5500 chip – a hardware TCP/IP controller with SPI support. The module enables rapid implementation of Ethernet connections in microcontroller designs without the need for a network stack implementation in code. It supports TCP, UDP, and IPv4 protocols and has an internal data buffer for efficient packet management. An isolated mains transformer protects the module from electromagnetic interference and ensures connection security. The LAN Module 13.2 is powered via a DC jack (9V to 24V) and a DC-DC converter , allowing for stable operation in a variety of power conditions. A built-in jumper allows for selecting the active chip and simultaneous use of two modules for dual Ethernet connections.

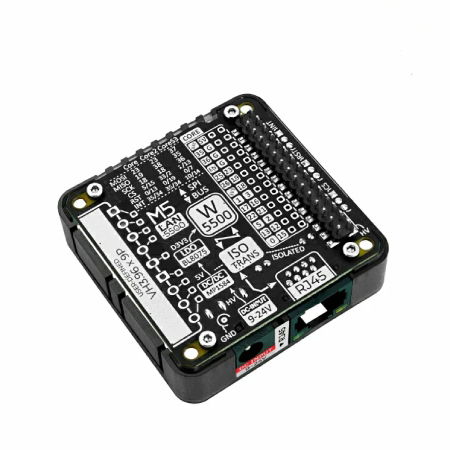

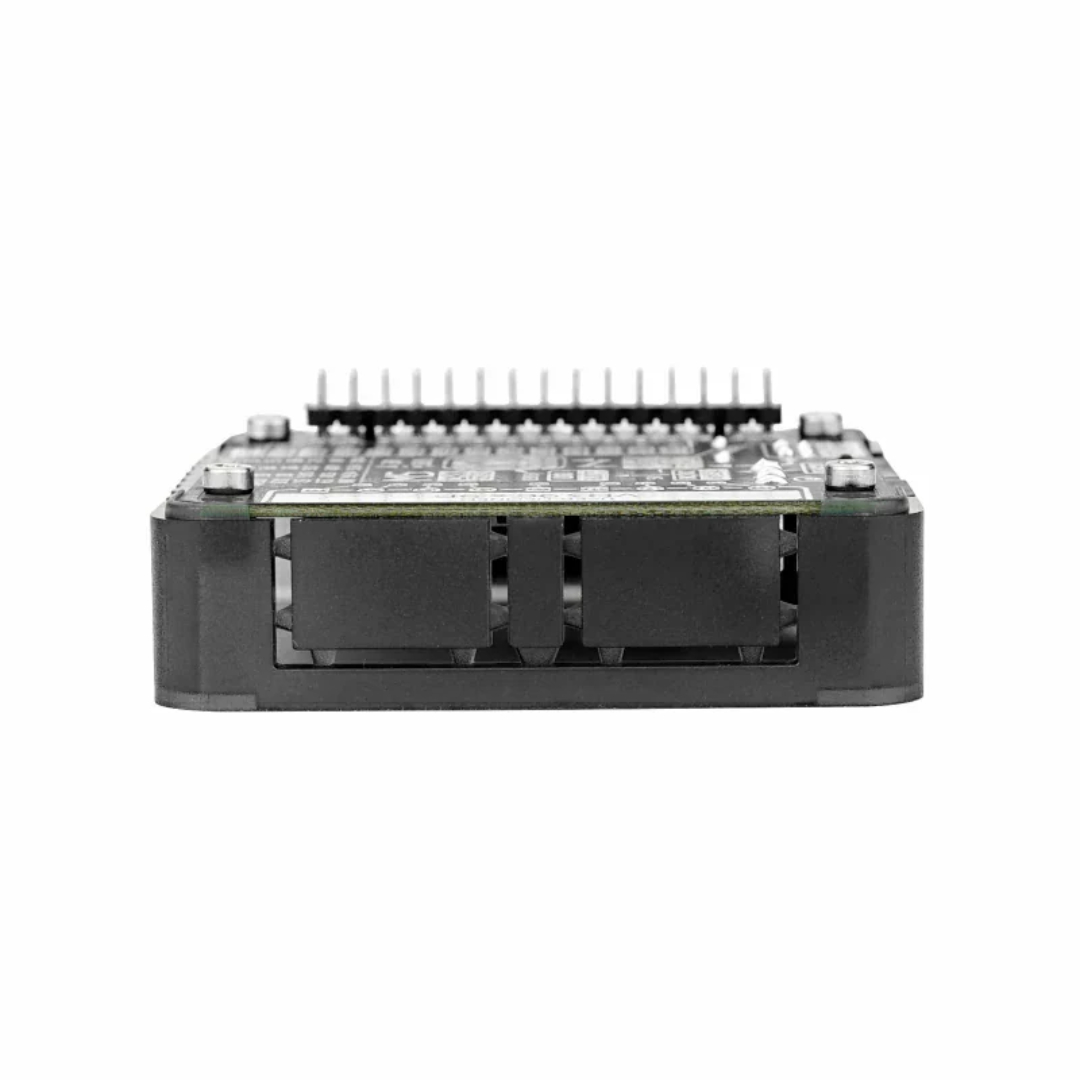

LAN Module 13.2 - communication module - W5500 - for M5Core - M5Stack M136 development modules.

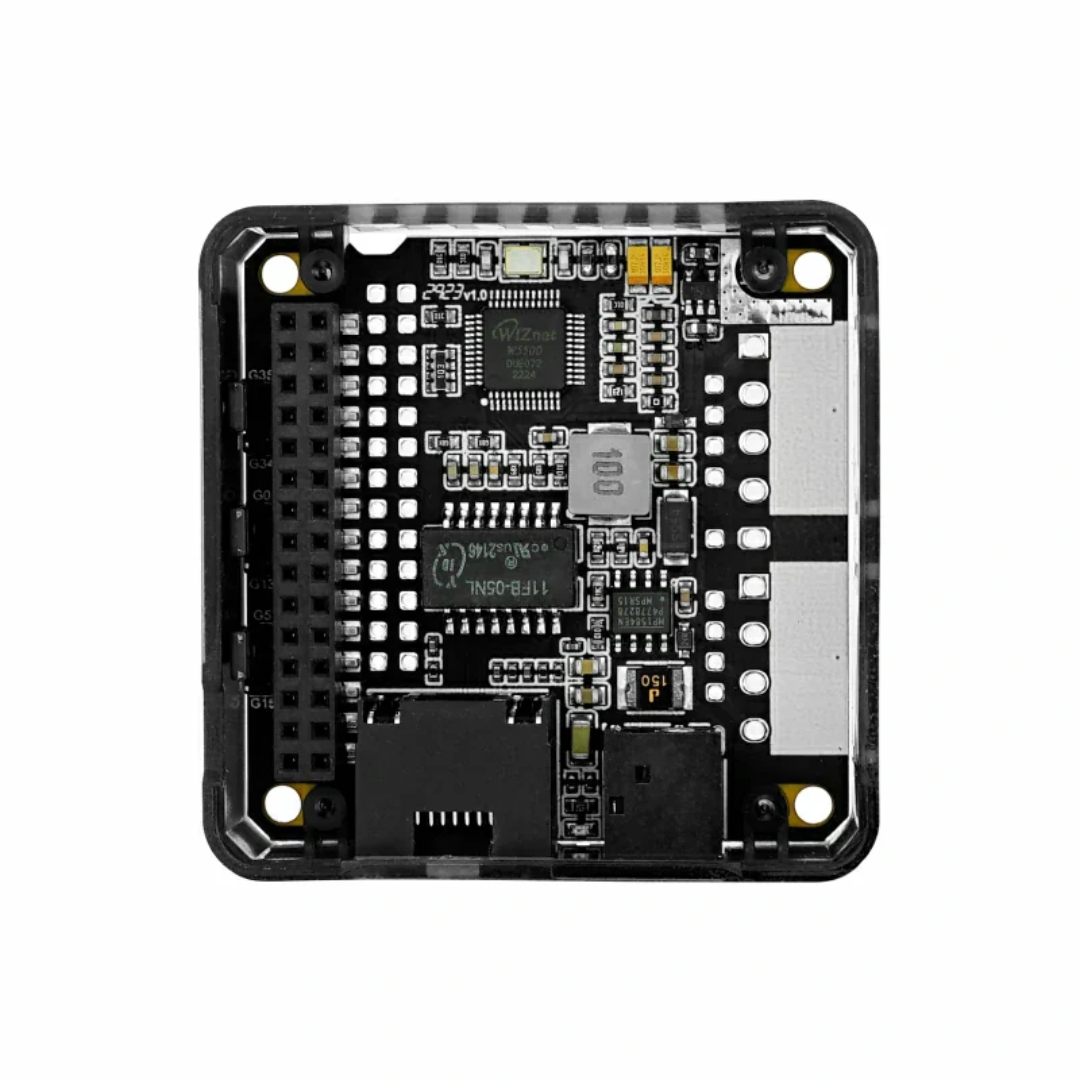

LAN Module 13.2 is a compact and functional communication module based on the W5500 chip.Special features
- W5500 embedded controller: hardware TCP/IP, UDP, IPv4 stack support
- SPI interface : a simple way to communicate with microcontrollers
- 10/100 Mbps RJ45 port: adaptive network communication
- Isolated signal transformer: improved stability and noise immunity
- Power supply from 9V to 24V DC-Jack: wide voltage compatibility
- DC-DC circuit: voltage stabilization for internal circuits
- Chip selection jumper: ability to work with two modules simultaneously
- 4-pin port with 3.96 mm pitch: allows integration with additional devices
Practical applications
The LAN Module 13.2 is suitable for industrial automation, data acquisition systems, remote monitoring, IoT gateways, and embedded communication systems. It can be used in open-source projects, commercial products, and educational platforms, wherever a stable network connection is required.
Versatility in industrial applications
Designed for use in harsh industrial environments, the module can be used for data acquisition, RS485 to Ethernet transmission, as a network gateway, HTTP server, or TCP client. Supporting 9V to 24V power supplies and a compact size, it is ideal for mobile, industrial, and educational applications.
Stable Ethernet communication in IoT devices
With the W5500 controller and proven SPI communication, the LAN Module 13.2 provides a robust solution for integrating Ethernet with microcontrollers. Data buffering, signal isolation, and low power consumption make it ideal for IoT devices requiring a reliable network connection.
A built-in jumper allows you to select the active chip and use two modules simultaneously to support dual Ethernet connections.

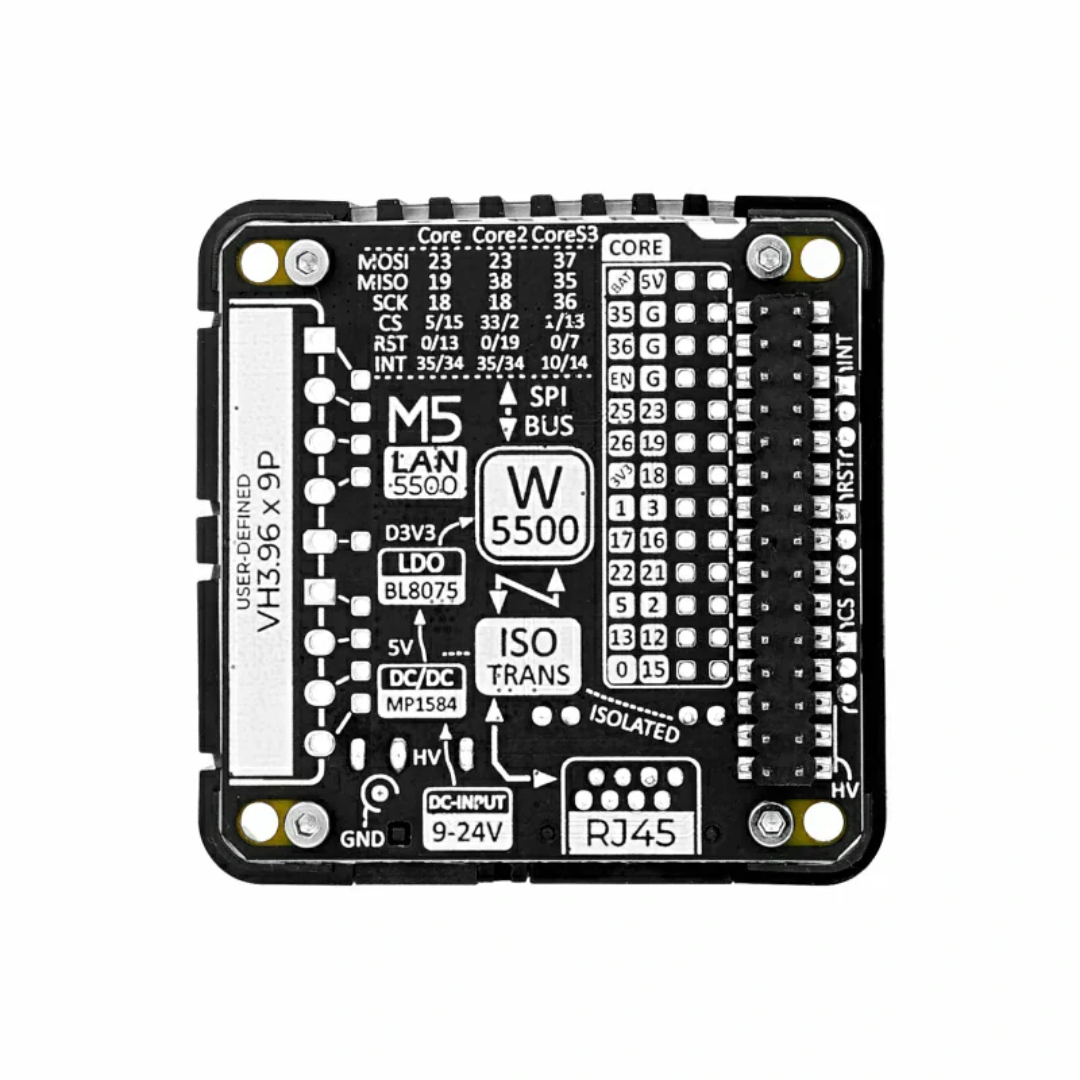

The module enables quick implementation of Ethernet connection in microcontroller projects without the need to implement a network stack in the code.Technical specifications of the module
- Ethernet Controller: W5500 (Hardware TCP/IP)
- Network interface: RJ45, adaptive 10/100 Mb/s
- Communication interface: SPI
- Supply voltage range: 9 V to 24 V (DC-JACK)
- Signal transformer: isolated, 100 Mb/s
- Additional port: 4-pin with 3.96 mm pitch (for expansion modules)
- Operating temperature: 0°C to 40°C
- Dimensions: 54 x 54 x 13.2 mm
- Weight: 29.6 g
Contents of the set
- 1x LAN Module 13.2
- 2x 4-pin connector with 3.96 mm pitch (male)
- 2x 4-pin connector with 3.96 mm pitch (female)
