Product description: PwrCAN 13.2 Module - RS485 / CAN with isolation - 9 - 24 V - expansion module for M5Core - M5Stack M139
PwrCAN 13.2 from M5Stack is a versatile communication module designed for the PwrCAN protocol, offering isolated CAN (two channels) and RS485 (one channel) communication with support for power supply voltage from 9V to 24V . The module integrates signal and power isolation, ensuring communication stability and security. With transceivers CA-IS3050G for CAN and CA-IS3082W for RS485 , it offers a maximum transfer rate of 1Mbps for CAN and 500Kbps for RS485. It allows configuration of communication pins and termination resistors via DIP switches , which increases the flexibility of integration with various systems. Wide applications make the module ideal for automation, transportation and industrial applications.
PwrCAN 13.2 Module - RS485 / CAN with isolation - 9 - 24 V - expansion module for M5Core - M5Stack M139.

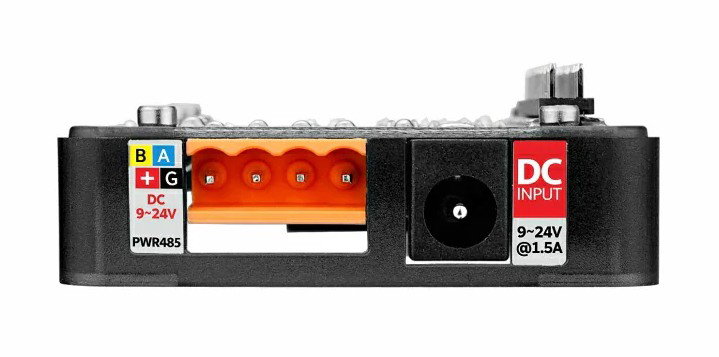

The module supports wide voltage from 9 V to 24 V.
Main Features of PwrCAN 13.2 Module
- Dual isolated CAN interface and one isolated RS485
- Wide input voltage from 9V to 24V
- DIP switches for communication pins and termination resistors
- CA-IS3050G and RS485 CA-IS3082W CAN transceivers
- 5V Isolated Power Supply for M5Core Development Modules
Compatibility and connection
The module is compatible with M5Stack Core development modules , such as Core Basic , Core2 and CoreS3 . DIP switches allow you to configure CAN and RS485 pin connections, adapting the module to the specific needs of the application. It is worth checking the pin assignments for devices to avoid conflicts during work.
Module Applications
The PwrCAN 13.2 module is widely used in various fields of technology and industry . Thanks to isolated CAN and RS485 buses and support for communication protocols, it is ideal for controlling robots and converting protocols in advanced industrial automation systems. It is perfect for intelligent transport, building automation and automotive systems, ensuring reliable communication between devices.

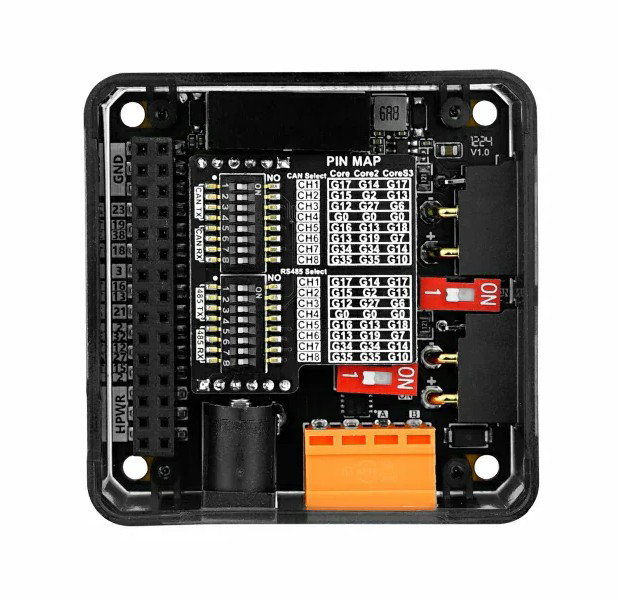

The module has a DIP switch to switch the CAN / RS485 communication pins.

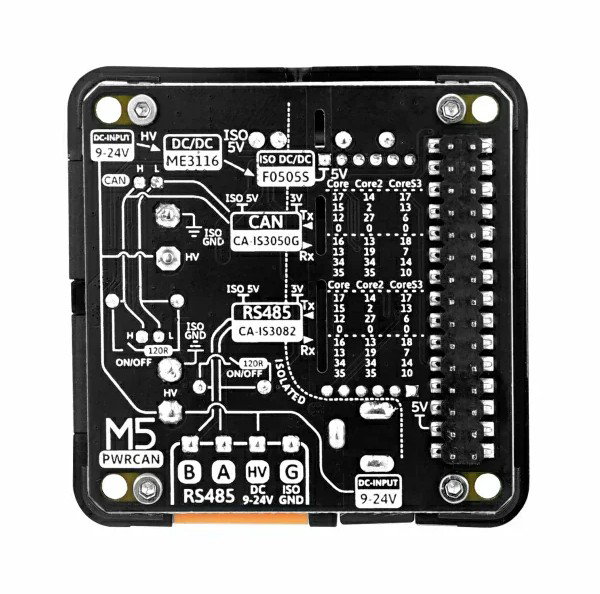

Compatible with M5Stack Core series of development modules.PwrCAN 13.2 Module Technical Specification
- Supported protocols: CAN and RS485
- CAN communication: CA-IS3050G (2 channels)
- RS485 communication: CA-IS3082W (1 channel)

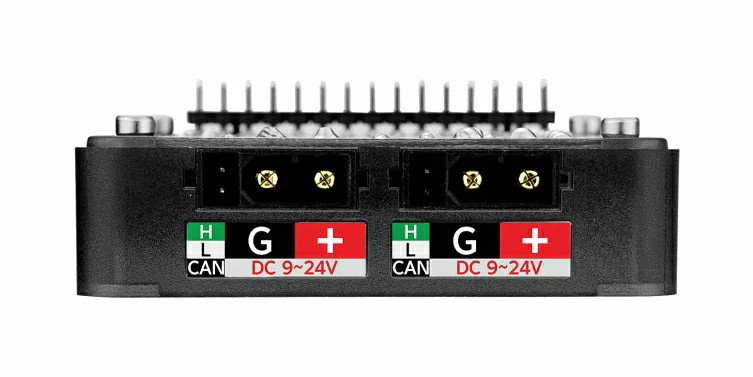

- CAN interface: XT30 (2 + 2) PW-M (horizontal solder socket)
- RS485 interface: HT3.96-4P (4-pin screw connector)
- CAN bus speed: maximum 1 Mb/s
- RS485 bus speed: maximum 500 Kbps
- Maximum number of CAN nodes: 110
- Maximum number of RS485 nodes: 256
- Input voltage range: 9V to 24V
- Power supply method: DC 5.5/2.1mm socket, power supply via RS485 interface, power supply via CAN interface
- Operating temperature: 0°C to 40°C
- Dimensions: 54 x 54 x 19.7 mm
- Weight: 27.7 g
Kit Contents
- 1x PwrCAN 13.2 Module
- 1x 4-pin screw connector
- 1x XT30 Cable (2 + 2)
