M5 RCA 13.2 - PCM5102 - Composite audio / video module - for M5Stack development modules
M5 RCA 13.2 produced by M5Stack is a module equipped with audio systems, stereo DAC PCM5102APWR and step down converter MP1584EN . The module has RCA connectors that enable the transmission of audio and video signals - 2x connector audio - left L and right R, and 1x video connector.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: M5 RCA 13.2 - PCM5102 - Composite audio / video module - for M5Stack development modules
M5 RCA 13.2 manufactured by M5Stack is a module equipped with audio systems, stereo DAC PCM5102APWR and step down converter MP1584EN . The module has RCA connectors that enable the transmission of audio and video signals - 2x connector audio - left L and right R, and 1x video connector.
Also check the manufacturer's user guide . In it you will find, among others, detailed documentation of the systems used and sample program code.

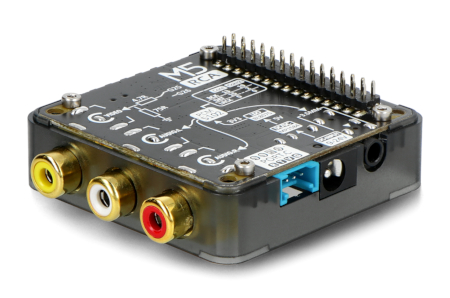

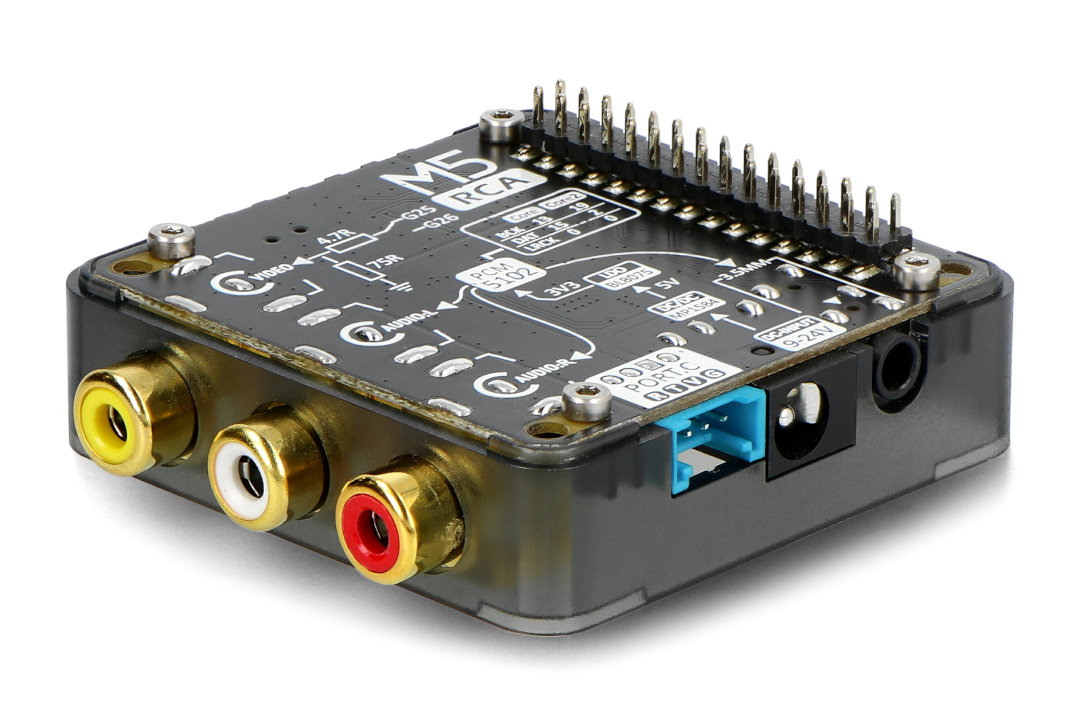

M5 RCA 13.2 equipped with three RCA connectors for transmitting audio and video signals.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

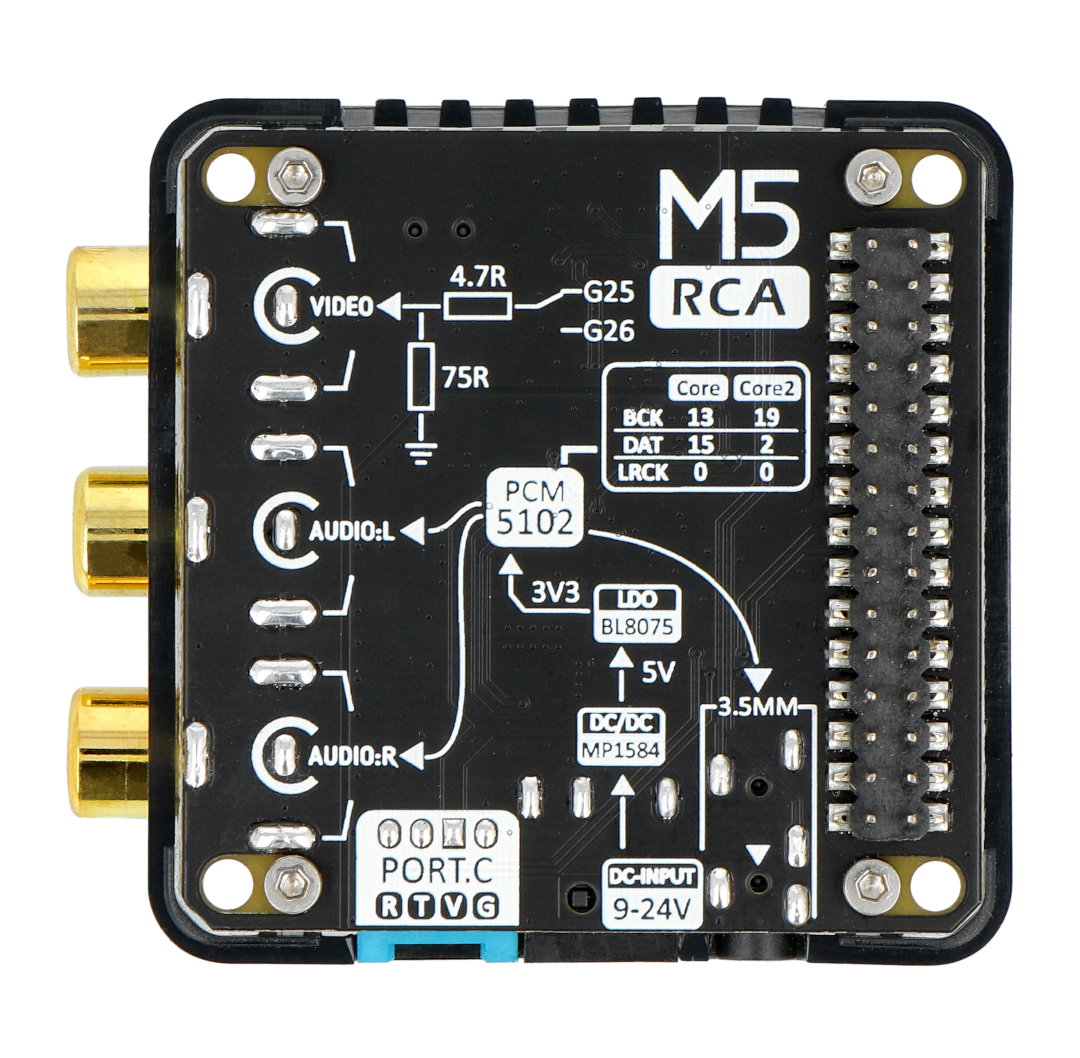

M5 RCA from M5Stack - top view.
Special features of the M5 RCA 13.2
- Built-in RCA Audio / Video Composite jacks
- 3.5 mm jack audio output for connecting headphones
- PCM5102 Stereo DAC
- Built-in step down voltage converter, allowing to supply the module with voltage in the range from 9 V to 24 V
Module technical specification
- Type: analog-to-digital converter DAC
- Built-in chip: PCM5102
- Resolution: 32 bits
- Very low noise level
- Communication interface: I2S
- Connector standard: RCA
- two audio connectors - left L and right R
- one video connector
- Video output interface: CVBS (switching GPIO25 <-> GPIO26)
- Maximum video resolution: 864 x 576 px (PAL, PAL_M)
- Headphone jack: 3.5 mm jack
- DC output: 9V to 24V
- Built-in step down converter: MP1584EN
- Conversion level: 5V
- Dimensions of the module with leads: 54 x 54 x 19.7 mm
- Module weight: 22.5 g
Kit contents
- M5 RCA 13.2 - PCM5102 - Composite audio / video module - for M5Stack development modules - 1 piece

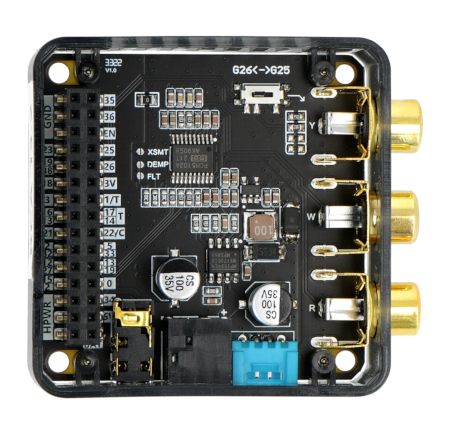

M5 RCA 13.2 - PCM5102 - Composite audio / video module - for M5Stack development modules.
Useful links
| Name | Value |
|---|---|
| Width | 9.6 cm |
| Height | 6.7 cm |
| Depth | 2.7 cm |
| Weight | 0.042 kg |
