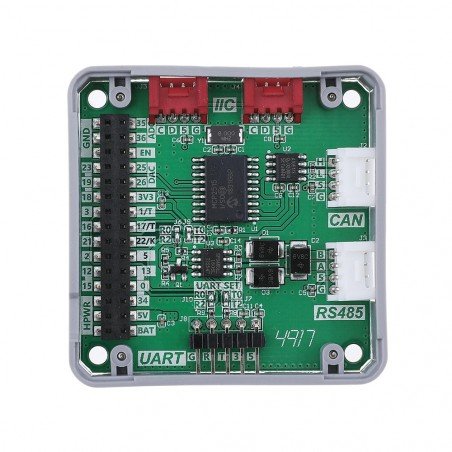

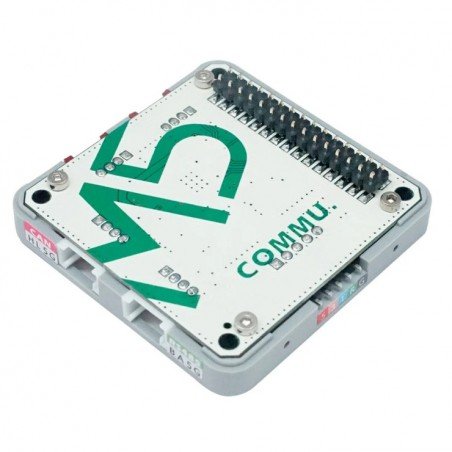

Product description: COMMU RS485/TTL CAN/I2C converter - module for M5Stack
COMMU Multi-Communication-Interfaceconverter as an extension for theM5Stackdevelopment module. Integrated device supporting a wide range ofcommunication interfaces. It is equipped with 2I2Cinputs and oneCAN,RS485andTTLinput each. The module is supported by a popular development platform:Arduino IDE. The manufacturer provides sampleprogram codefor this environment.
High quality M5Stack converter, which supports wide range of communication interfaces.
The kit includes COMMU converter module.
Technical specification of the module
- Communication interface:
- I2C - x2
- CAN - x1
- RS485 - x1
- TTL - x1
- Default connections:
- TTL - UART0
- RS485 - UART2 *

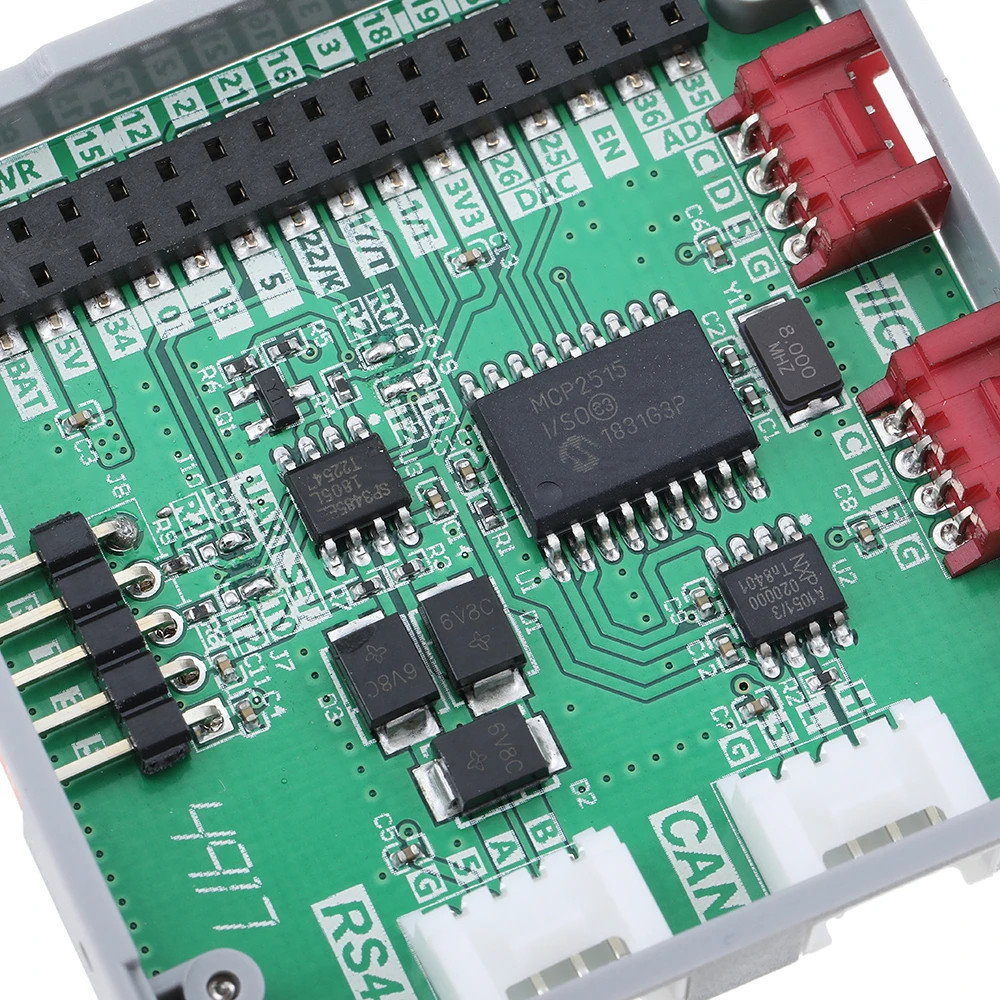

- CAN controller system: MCP2515-1/SO
- RS485 chip: SP3485EN-L/TR
- Dimensions: 54.2 x 54.2 x 13 mm
- Weight: 13.5 g
* Pin map ESP32 allows the user to re-assign the TTL or RS485 interface to other pins.

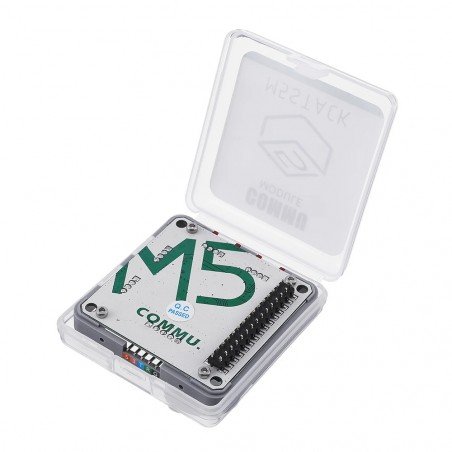

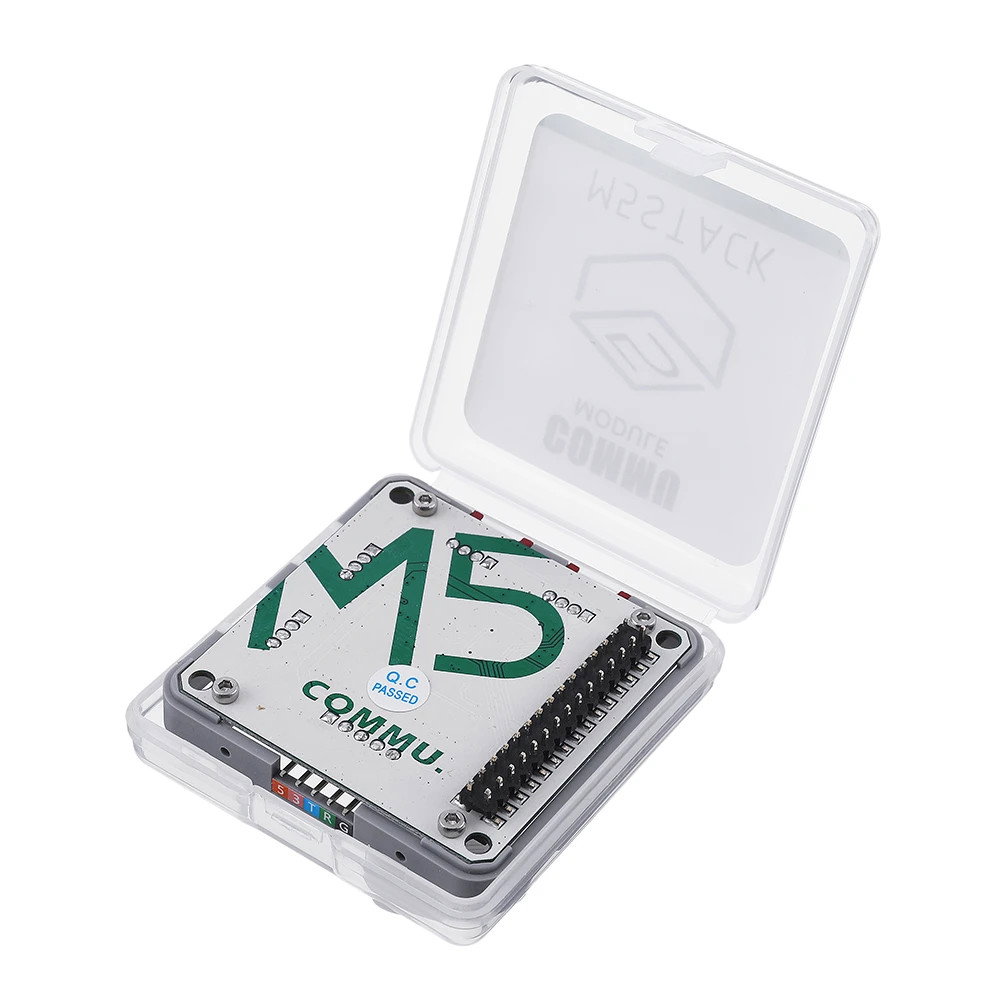

Set contents
- COMMU converter module
