Product description: Stepmotor Driver Module 13.2 - HR8825 - stepper motor controller - for M5Stack Core development modules - M5Stack M039-V11
Stepmotor Driver Module 13.2 v1.1 is an electronic component manufactured by M5Stack that enables precise control of stepper motors . Intended for use with the M5Stack Core2 and M5Stack CoreS3 development modules. It is equipped with the HR8825 control system, which allows for independent control or multi-axis motor connection. This is an ideal solution for a variety of applications, such as 3D printers or CNC machines, where precise control of motor movement is needed.

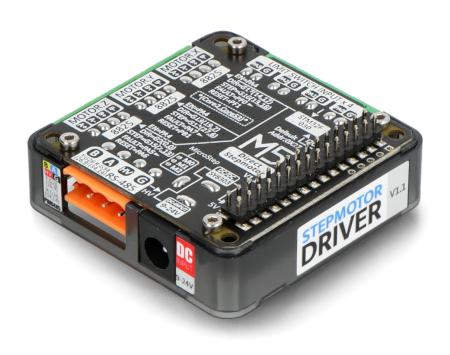

Stepmotor Driver Module 13.2 - HR8825 - stepper motor driver - for M5Stack Core development modules - M5Stack M039-V11.

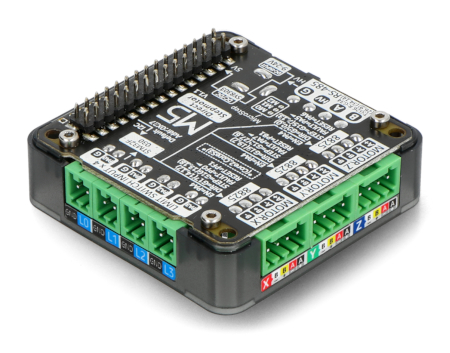

The Stepmotor Driver Module is used to control three stepper motors simultaneously.
Characteristic features of the module

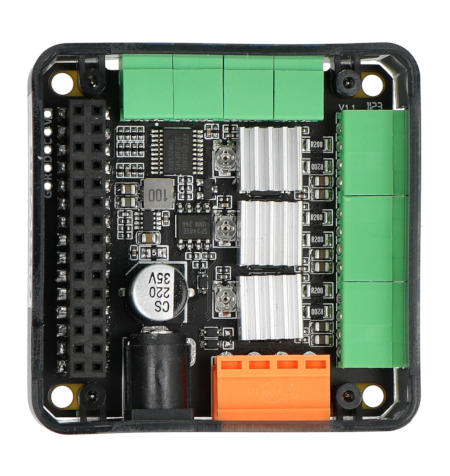

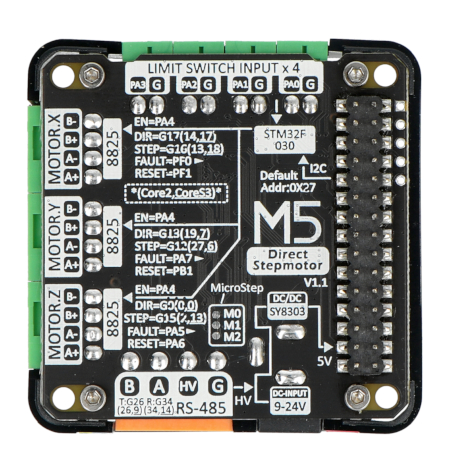

- Equipped with the STM32F030F4P6 chip, based on a 32-bit ARM Cortex-M0 processor
- It uses an HR8825 stepper motor controller, supporting 3 independent axes
- It has the function of controlling bipolar stepper motors
- It allows you to adjust the current on each channel to a maximum of 1.5 A
- It has many step segmentation modes, from a full step up to 1/32 step
- Integrated with the PWR485 communication interface
- It has a DC-JACK power input
- Supports Arduino and UIFlow graphical programming
Stepper motor control
The Stepmotor Driver Module allows you to control three independent stepper motors . Each motor can be controlled simultaneously and autonomously, allowing for precise positioning on different axes. This is a key feature in applications such as 3D printers or CNC machines, where accuracy plays a key role.
Step division mode
Split step mode allows the user to select different methods to control the precision of stepper motor movement . It offers various modes, ranging from full step to 1/32 step. This allows motor movement to be tailored to specific application requirements, ensuring smooth and accurate operations, which is important in devices requiring precise control.
The module has a step division mode that allows for precise motor control.
The stepper motor driver is used, among others, in 3D printers.
Suggested use
- 3D printers
- Scanners
- CNC engraving machine control
- Motion module control
- Robot arms

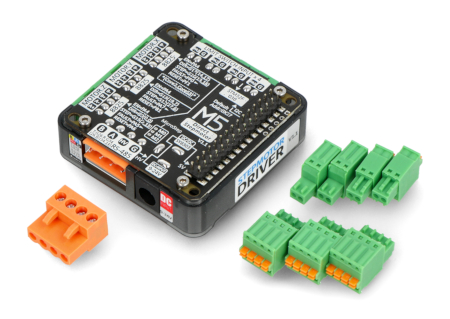

Set contents
- Stepmotor Driver Module 13.2 v1.1
- 4x 2.54-2P screw terminals
- 3x 2.54-4P screw terminals
- 1x 3.96-4P screw terminal
Technical specifications of the motor controller
- Type: stepper motor driver
- Intended use: for M5Stack Core2 and M5Stack CoreS3 development modules
- Built-in chip:
- driver: HR8825
- I/O expansion: STM32F030F4P6
- Equipped with a potentiometer to regulate the current up to 1.5 A
- PWR485 communication interface (RS485 + 9V to 24V power input)
- DC-JACK terminal input from 9V to 24V
- Built-in DCDC
- Number of channels: 3
- Segmentation: FULL, 1/2, 1/4, 1/8, 1/16, 1/32
- Maximum current per channel: 1.5 A
- Input signal connector: 2.54-2P
- Connector for connecting engines: 2.54-4P
- RS485 terminal connector: 3.96-4P
- Dimensions: 54.2 x 54.2 x 13.2 mm
- Weight: 40 g
Attention! The module may be damaged when connecting or disconnecting a running engine. First make sure the engine is turned off!
The product is compatible with M5Stack Core2 and CoreS3 development modules.
