Step-Up Voltage Regulator U3V16F12 - 12V 2A - Pololu 4945

Index: PLL-22473
Pololu step-up converter with an output voltage of 12 V and a capacity of 2 A. The supply voltage is from 1.3 V to 16 V. The minimum starting voltage is 2.7 V. Typical converter efficiency is 85% to 95% , depending on input voltage and load. The output current is proportional to the input current, the efficiency and the VOUT to VIN amplification factor.
Step-Up Voltage Regulator U3V16F12 - 12V 2A - Pololu 4945
€5.90
€4.80 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Pololu

Product description: U3V16F12 - step-up converter - 12 V 2 A - Pololu 4945

Pololu step-up converter with an output voltage of 12 V and a capacity of 2 A. The supply voltage is from 1.3 V to 16 V. The minimum starting voltage is 2.7 V. Typical converter efficiency is 85% to 95% , depending on input voltage and load. The output current is proportional to the input current, the efficiency and the VOUT to VIN amplification factor.

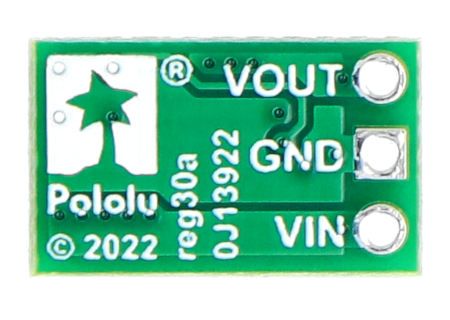

Pins of the U3V16F12 converter.

Pins of the U3V16F12 converter

  • VOUT - output voltage 12 V
  • GND - system ground (common for VIN and VOUT)
  • VIN - input voltage from 2.7 V to 16 V (after starting the system, the input voltage may drop to at least 1.3 V)

Power surges

When applying power to the module, the initial incoming current can cause dangerous voltage spikes that are much higher than the input voltage. After research conducted by Pololu, it was found that for input voltages above 9 V, the pulses may have an amplitude large enough to damage the module. In order to protect against this undesirable phenomenon, it is recommended to solder a capacitor with a value of at least 33 uF as close as possible to the power supply pins of the converter.

The efficiency of the converter system

Efficiency is defined as the ratio of power output to power input (Power out)/(Power in). It is one of the most important parameters of the converter, especially when working with portable energy sources.

Current efficiency of the U3V16F12 converter.

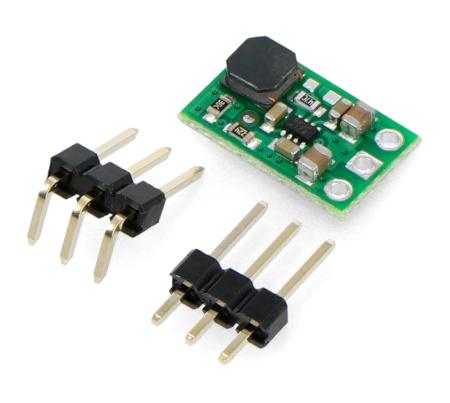

Components included in the set.

Technical specification of the U3V16F12 converter

  • Input voltage: 1.3V to 16V
  • Minimum starting voltage: 2.7V
  • Output voltage: 12 V (accuracy 4%)
  • Maximum input current: 2A
  • Continuous input current: up to 1.5 A
  • Switching frequency: approx. 1.2 MHz under heavy loads
  • System efficiency: from 85% to 95%
  • Protections: against overheating, soft start function, undervoltage lock
  • Dimensions: 13.1 x 8.1 x 3mm
  • Weight: 0.4g

Kit contents

  • U3V16F12 - step-up converter - 12 V 2 A - Pololu 4945
  • Goldpin strip straight 3-pin raster 2.54 mm
  • Angled goldpin strip 3-pin raster 2.54 mm

Voltage to 1.3 V
Voltage from 16.0 V
Voltage output from 12.0 V
Output voltage to 12.0 V
Nominal output voltage 12.0 V
Current 2 A
Package width 7.8 cm
Package height 8.5 cm
Package depth 0.5 cm
Package weight 0.002 kg
